8.14 Diagnostic Tools
8.14.2 Easy FFT
8-96
Applicable Tools
The following table lists the tools that you can use to perform EasyFFT and the applicable tool
functions.
Operating Procedure

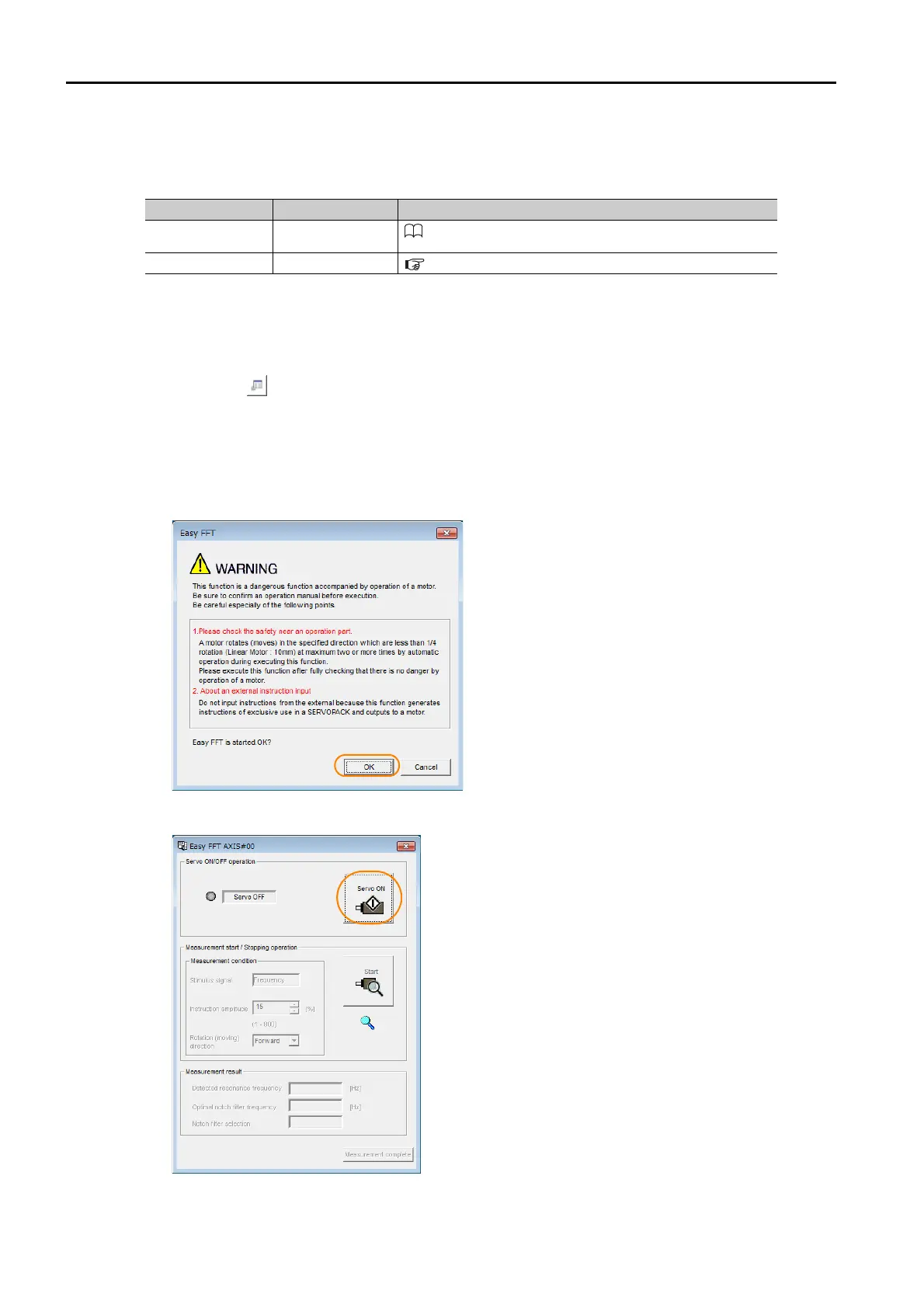

Use the following procedure for Easy FFT.
1.
Click the Servo Drive Button in the workspace of the Main Window of the Sig-
maWin+.
2.
Select Easy FFT in the Menu Dialog Box.
The Easy FFT Dialog Box will be displayed.
Click the Cancel Button to cancel Easy FFT. You will return to the main window.
3.
Click the OK Button.
4.
Click the Servo ON Button.
Tool Function Operating Procedure Reference
Digital Operator Fn206
Σ-7-Series Servo Drive Digital Operator Operating Manual
(Manual No.: SIEP S800001 33)
SigmaWin+ Setup - Easy FFT
Operating Procedure on page 8-96
