2.3 External Dimensions
2.3.2 SERVOPACK External Dimensions
2
Selecting a SERVOPACK
2-23

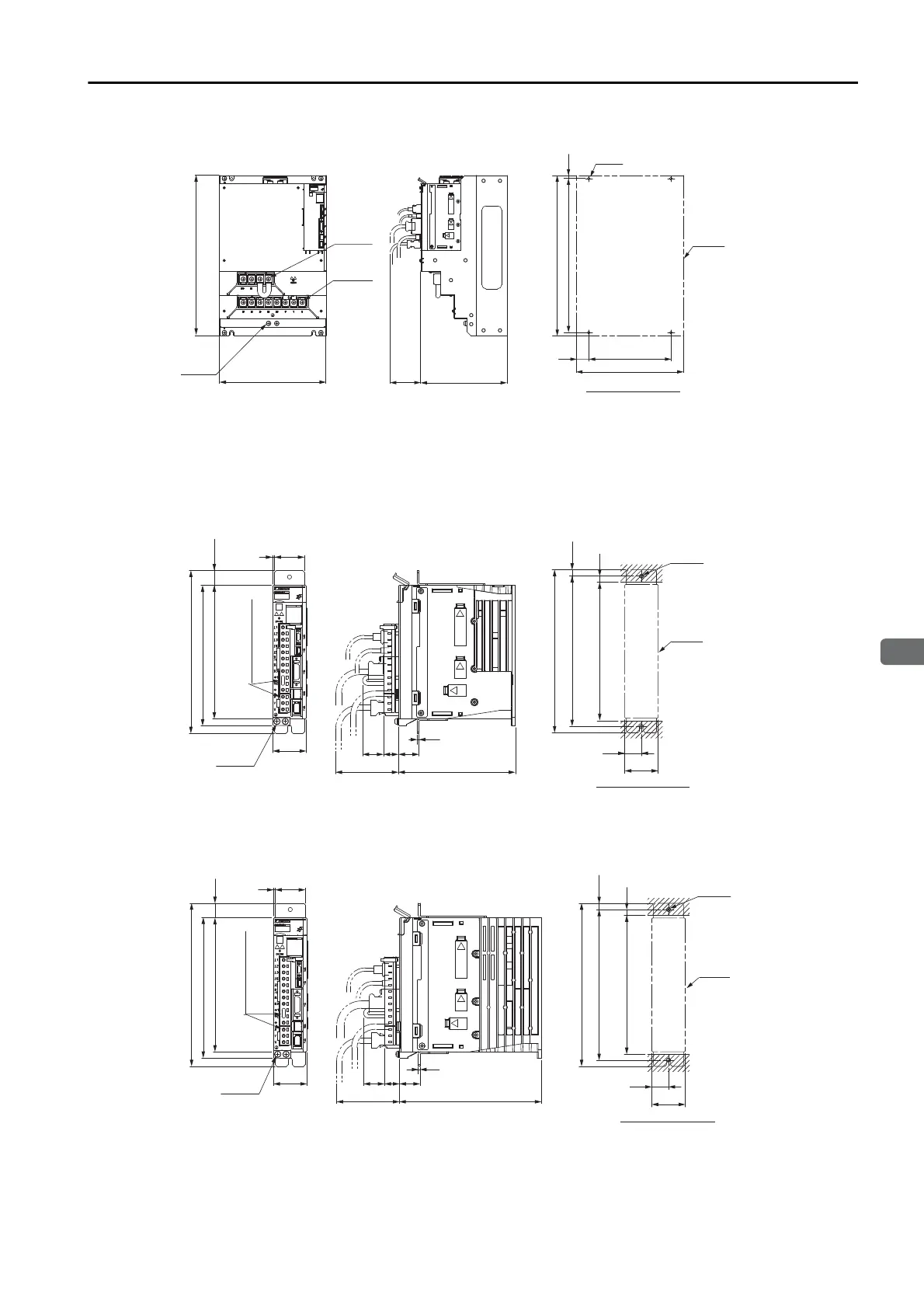

• Three-phase, 200 VAC: SGD7S-590A and -780A
Rack-mounted SERVOPACKs
Hardware Option Code: 001
• Three-phase, 200 VAC: SGD7S-R70A, -R90A, and -1R6A
• Three-phase, 200 VAC: SGD7S-2R8A; Single-phase, 100 VAC: SGD7S-R70F, -R90F, and
-2R1F
Ground
terminals
2 × M6
Ter mi na ls
4
× M6
Ter mi na ls
8
× M6
Unit: mm
Approx. Mass: 15.5 kg
375 ± 0.5 (mounting pitch)
200 ± 0.5
(mounting pitch)
Exterior
Mounting Hole Diagram
260
210
(75)
30
260
390
390
7.5
4 × M6
Unit: mm
Approx. mass: 0.8 kg
Exterior
Mounting Hole Diagram
180 ± 0.5 (mounting pitch)
Ground
terminals
2 × M4
Two sets of terminals
2 × M4
(25)
168
160
40
18
(75) 140
195
17.5
2 36
24.5
(2)
20
7.5
166 min.
7
195
40
Unit: mm
Approx. mass: 1.0 kg
Exterior
Mounting Hole Diagram
180 ± 0.5 (mounting pitch)
Ground
terminals
2 × M4
Two sets of terminals
2 × M4
(25)
18
170(75)
40
160
168
195
17.5
362
24.5
(2)
20
7.5
166 min. 7
195
40
