6.3 Drive Alarms, Faults, and Errors
YASKAWA ELECTRIC SIEP C710616 30B YASKAWA AC Drive T1000A Technical Manual 273
Troubleshooting
6
u Alarm and Error Displays
n Faults
Table 6.9 gives an overview of possible fault codes. As conditions such as overvoltage can trip both a fault and an alarm,
it is important to distinguish between faults and alarms in order to find the right corrective action.
When the drive detects a fault, the ALM indicator LEDs lights and the fault code appears on the display. The drive fault
contact MA-MB-MC will be triggered. If the ALM LED blinks and the code appearing on the operator screen is flashes,
then an alarm has been detected. See Minor Faults and Alarms on page 274 for a list of alarm codes.

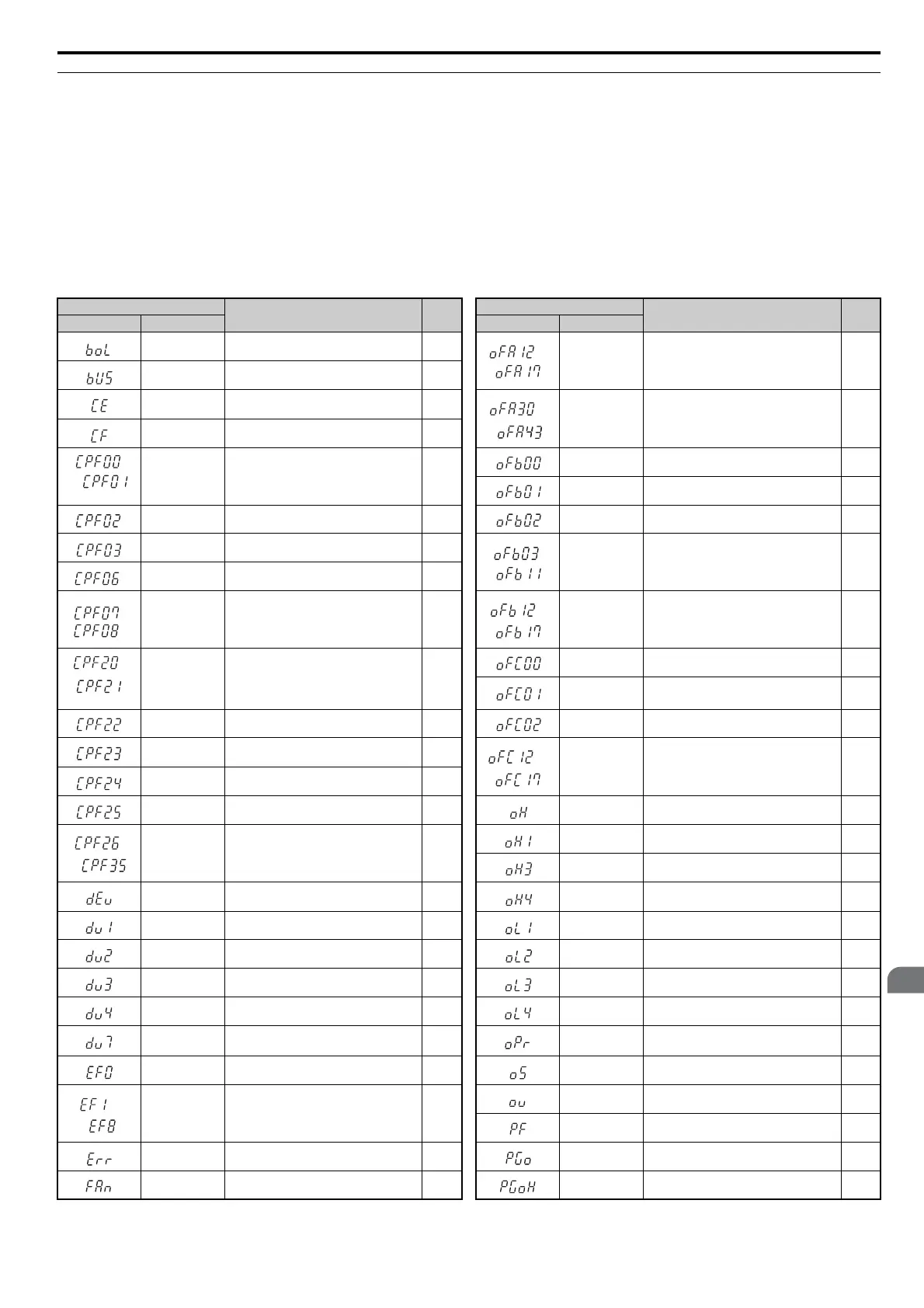

Table 6.9 Fault Displays
Digital Operator Display
Name Page
Digital Operator Display
Name Page
LED Operator LCD Operator LED Operator LCD Operator
boL Braking Transistor Overload Fault 277
to
oFA12 to oFA17 Option Card Connection Error (CN5-A) 282
bUS Option Communication Error 277
CE
MEMOBUS/Modbus Communication
Error
277
to
oFA30 to oFA43 Option Card Connection Error (CN5-A) 282
CF Control Fault 277
,
<1>
CPF00, CPF01 Control Circuit Error 277
oFb00 Option Card Connection Error (CN5-B) 283
oFb01 Option Card Fault (CN5-B) 283
CPF02 A/D Conversion Error 277 oFb02 Option Card Fault (CN5-B) 283
CPF03 Control Board Connection Error 278
,
oFb03, oFb11 Option Card Error (CN5-B) 283
CPF06 EEPROM Memory Data Error 278
,
CPF07,
CPF08
Terminal Board Connection Error 278
to
oFb12 to oFb17 Option Card Connection Error (CN5-B) 283
,
<1>
CPF20, CPF21 Control Circuit Error 278
oFC00 Option Card Connection Error (CN5-C) 283
oFC01 Option Card Fault (CN5-C) 283
CPF22 Hybrid IC Error 278 oFC02 Option Card Fault (CN5-C) 283
CPF23 Control Board Connection Error 278
to
oFC12 to oFC17 Option Card Connection Error (CN5-C) 283
CPF24 Drive Unit Signal Fault 278
CPF25 Terminal Board Not Connected 278 oH Heatsink Overheat 284
to
CPF26 to CPF35 Control Circuit Error 278
oH1 Heatsink Overheat 284
oH3 Motor Overheat 1 (PTC input) 284
dEv
Excessive Speed Deviation (for Control
Mode with PG)
279 oH4 Motor Overheat 2 (PTC input) 284
dv1 Z Pulse Fall Detection 279 oL1 Motor Overload 284
dv2 Z Pulse Noise Fault Detection 279 oL2 Drive Overload 285
dv3 Inversion Detection 279 oL3 Overtorque Detection 1 285
dv4 Inversion Prevention Detection 279 oL4 Overtorque Detection 2 285
dv7 Initial Polarity Estimation Timeout 279 oPr Operator Connection Fault 285
EF0 Option Card External Fault 279 oS Overspeed 285
to
EF1 to EF8 External Fault (input terminal S1 to S8) 280
ov Overvoltage 285
PF Input Phase Loss 286
Err EEPROM Write Error 280 PGo PG Disconnect (for Control Mode with PG) 286
FAn Internal Fan Fault 280 PGoH PG Hardware Fault 286
