2.2 Mechanical Installation
38 YASKAWA ELECTRIC SIEP C710616 30B YASKAWA AC Drive T1000A Technical Manual
u Digital Operator Remote Usage
n Remote Operation
The digital operator mounted on the drive can be removed and connected to the drive using an extension cable up to 3 m
long. This makes it easier to operate the drive when it is installed in a location where it can not be accessed easily.
The digital operator can also be permanently mounted in a remote location like a panel door. An extension cable and an
installation support set (depending on the installation type) will be required.
Note: Refer to Drive Options and Peripheral Devices on page 338 for information on extension cables and installation support sets.

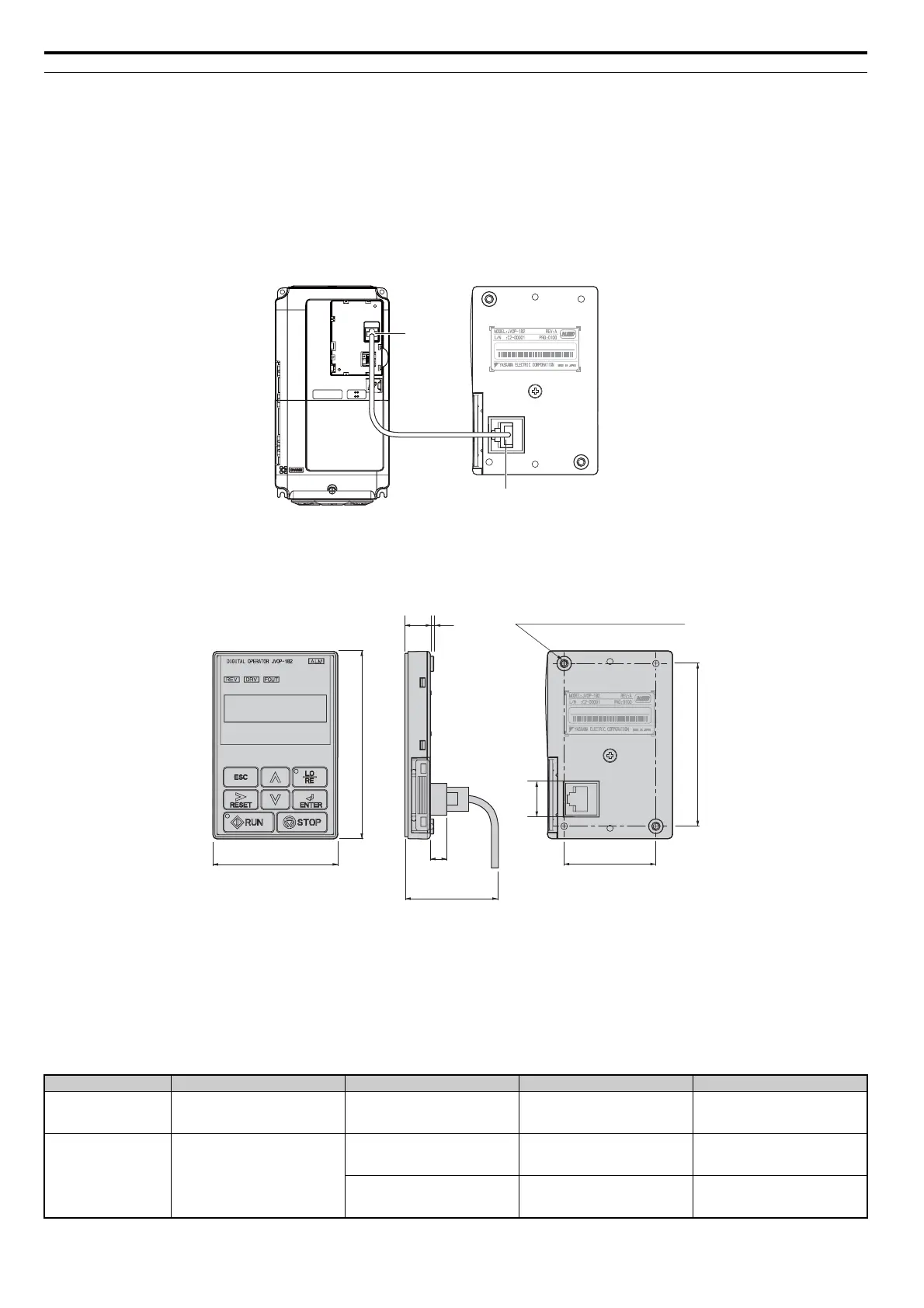

Figure 2.5
Figure 2.4 Communication Cable Connection
n Digital Operator Remote Installation
Digital Operator Dimensions
Figure 2.5 Digital Operator Dimensions
Installation Types and Required Materials
There are two ways the digital operator can be mounted to an enclosure:
1.
External/face-mount installs the operator outside the enclosure panel
2. Internal/flush-mount installs the operator inside the enclosure panel
Table 2.2 Digital Operator Installation Methods and Required Tools
Installation Method Description Installation Support Sets Model Required Tools
External/Face-Mount
Simplified installation with the digital
operator is mounted on the outside of
the panel with two screws.
– – Phillips screwdriver (#1)
Internal/Flush-Mount
Encloses the digital operator in the
panel. The digital operator is flush
with the outside of the panel.
Installation Support Set A
(for mounting with screws through
holes in the panel)
EZZ020642A Phillips screwdriver (#1, #2)
Installation Support Set B
(for use with threaded studs that are
fixed to the panel)
EZZ020642B
Phillips screwdriver (#1)
Wrench (7 mm)
S / N : J007XE273710001
OperatorDrive
Communication Cable Connecto
Comm Port
common_
TMonly
S / N : J007XE273710001
90
78
60
7.9
minimum
50
Unit: mm
12.2
1.6
Installat ion holes (2-M3 screws, depth 5)
44
15
To Next Page
