3.10 Connect to a PC
3.10 Connect to a PC
This drive is equipped with a USB port (type-B).
The drive can connect to the USB port of a PC using a USB 2.0, AB type cable (sold separately). DriveWizard Plus can
then be used to monitor drive performance and manage parameter settings. Contact Yaskawa for more information on
DriveWizard Plus.
It is also possible to use the USB Copy Unit (JVOP-181) for connection to a PC. Remove the operator and use the RJ-45
connector when doing so.
Figure 3.30

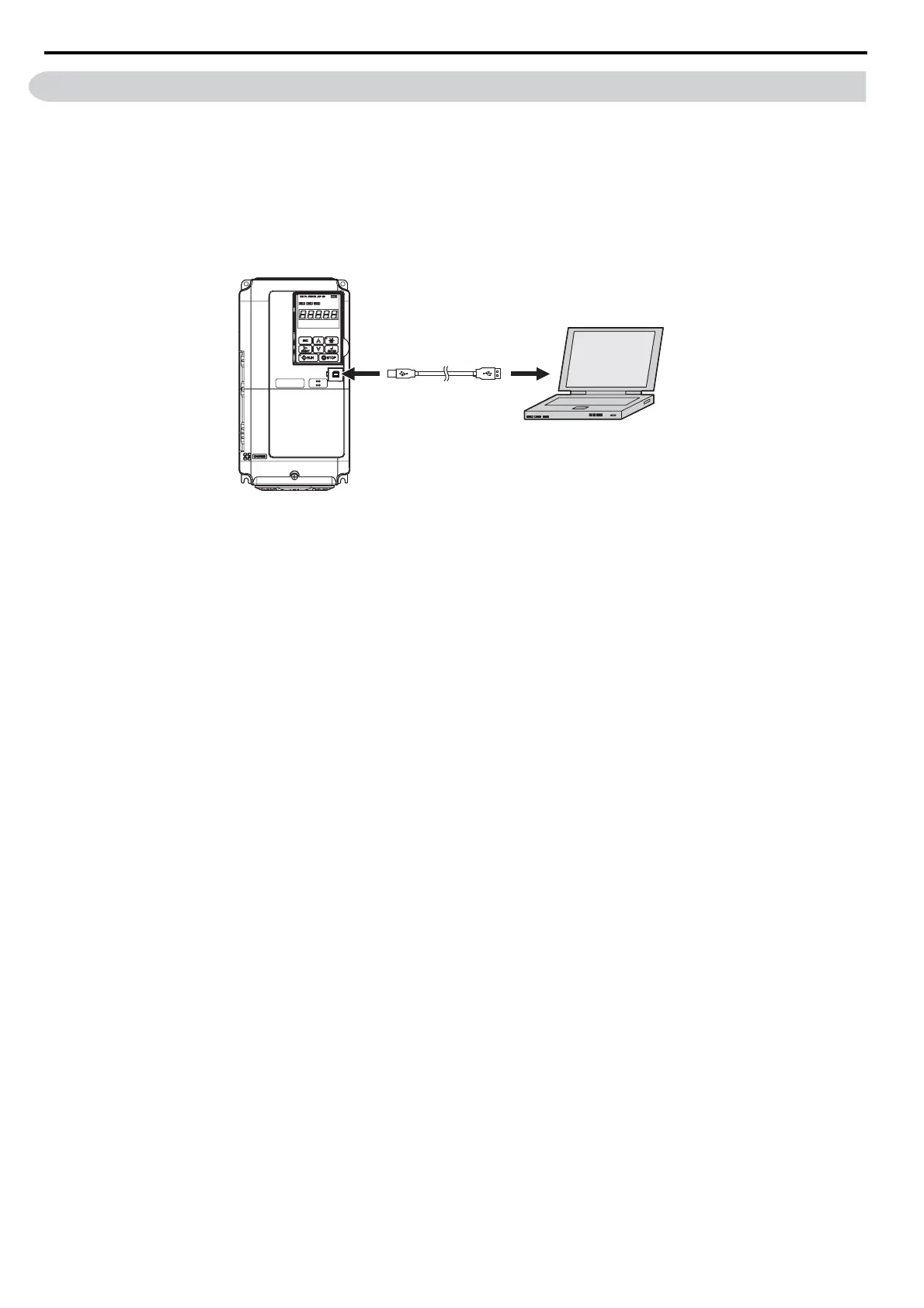

Figure 3.25 Connecting to a PC (USB)
PC
(Type-B) (Type-A)
USB Cable
(Type-AB)
