3.5 Terminal Cover
3.5 Terminal Cover

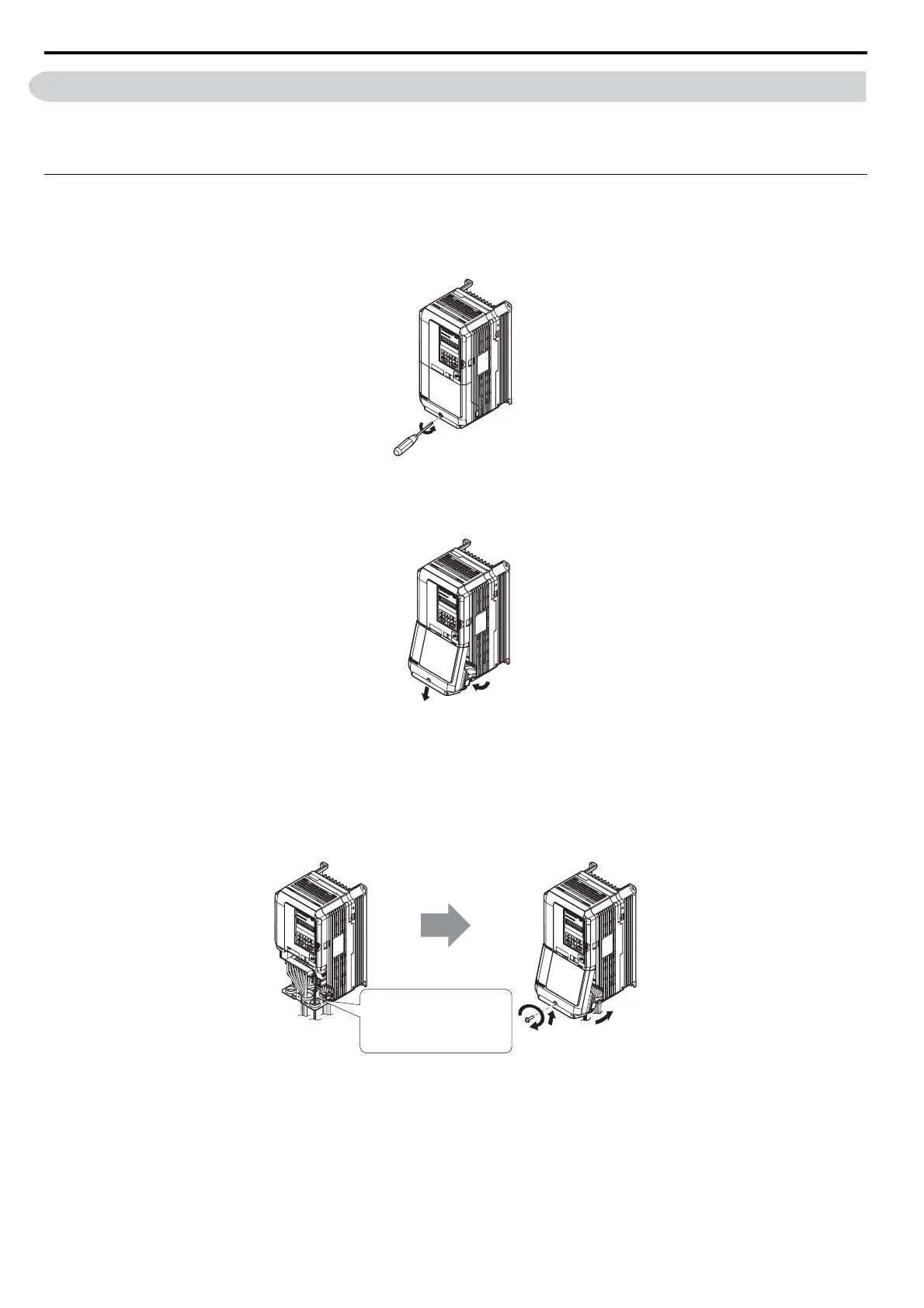

Follow the procedure below to remove the terminal cover for wiring and to reattach the terminal cover after wiring is
complete.
u CIMR-T2A0004 to 0081, 4A0002 to 0044
n Removing the Terminal Cover
1. Loosen the terminal cover screw.
Figure 3.7
Figure 3.3 Removing the Terminal Cover
2. Push in on the hook located on the bottom of the terminal cover, and gently pull forward. This should remove the
terminal cover.
Figure 3.8
Figure 3.4 Removing the Terminal Cover
n Reattaching the Terminal Cover
Power lines and signal wiring should pass through the opening provided. Refer to Wiring the Main Circuit Terminal on
page 59 and Wiring the Control Circuit Terminal on page 62 for details on wiring.
After all wiring to the drive and other devices is complete, reattach the terminal cover.
Figure 3.9
Figure 3.5 Reattaching the Terminal Cover
Connect ground wiring first,
followed by the main circuit,
and then wire the control circuit.
Power lines and signal wiring
exit through the opening provided.
