1.5 Component Names
1.5 Component Names
This section gives and overview of the drive components described in this manual.
Note: 1. See Using the Digital Operator on page 73 for a description of the operator keypad.
2. The drive may have no cooling fans or only one cooling fan depending on the model.
u Heatsink Cooled Drives
n Three-Phase AC200 V CIMR-T2A0004B to 0081B
Three-Phase AC400 V CIMR-T4A0002B to 0044B

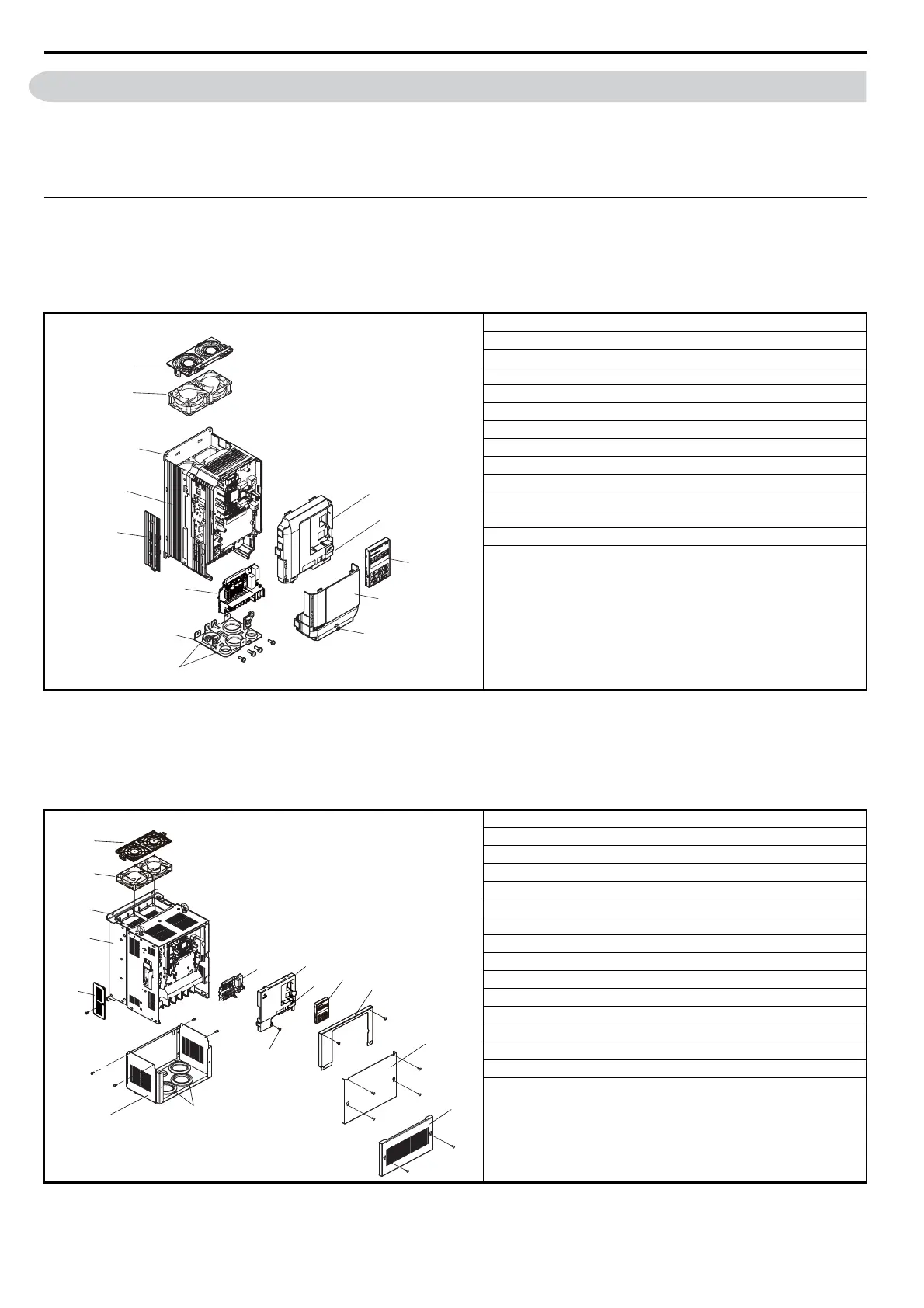

Table 1.4 Exploded View of Drive Components (CIMR-T2A0030B)
n Three-Phase AC200 V CIMR-T2A0110B to 0211C
Three-Phase AC400 V CIMR-T4A0058B to 0165C
Table 1.5 Exploded View of Drive Components (CIMR-T2A0110C)
<1> The following drive models have a single cooling fan: CIMR-T2A0021, CIMR-T4A0007 to 0011. Drives CIMR-T2A0004 to 0012 and
CIMR-T4A0002 to 0005 do not have a cooling fan or a cooling fan cover.
A - Fan cover <1>
B - Cooling fan <1>
C - Mounting hole
D - Heatsink
E - Optional 24 V DC power supply connector cover
F - Terminal board
G - Bottom cover
H - Rubber bushing
I - Front cover
J - USB port (type-B)
K - Digital Operator
L - Terminal cover
M - Terminal cover screw
A - Fan cover
B - Cooling fan
C - Mounting hole
D - Heatsink
E - Optional 24 V DC power supply connector cover
F - Terminal board
G - Front cover
H - USB port (type-B)
I - Front cover screw
J - Digital operator
K - Drive Cover
L - Terminal cover
M - Bottom front cover
N - Bottom cover
O - Rubber bussing
M
A
B
C
D
E
F
I
K
L
J
G
H
YEG
A
B
C
D
N
E
F
G
H
I
O
J
K
L
M
