C.3 Connecting to a Network
YASKAWA ELECTRIC SIEP C710616 30B YASKAWA AC Drive T1000A Technical Manual 449
MEMOBUS/Modbus
Communications
C
n RS-422 Interface

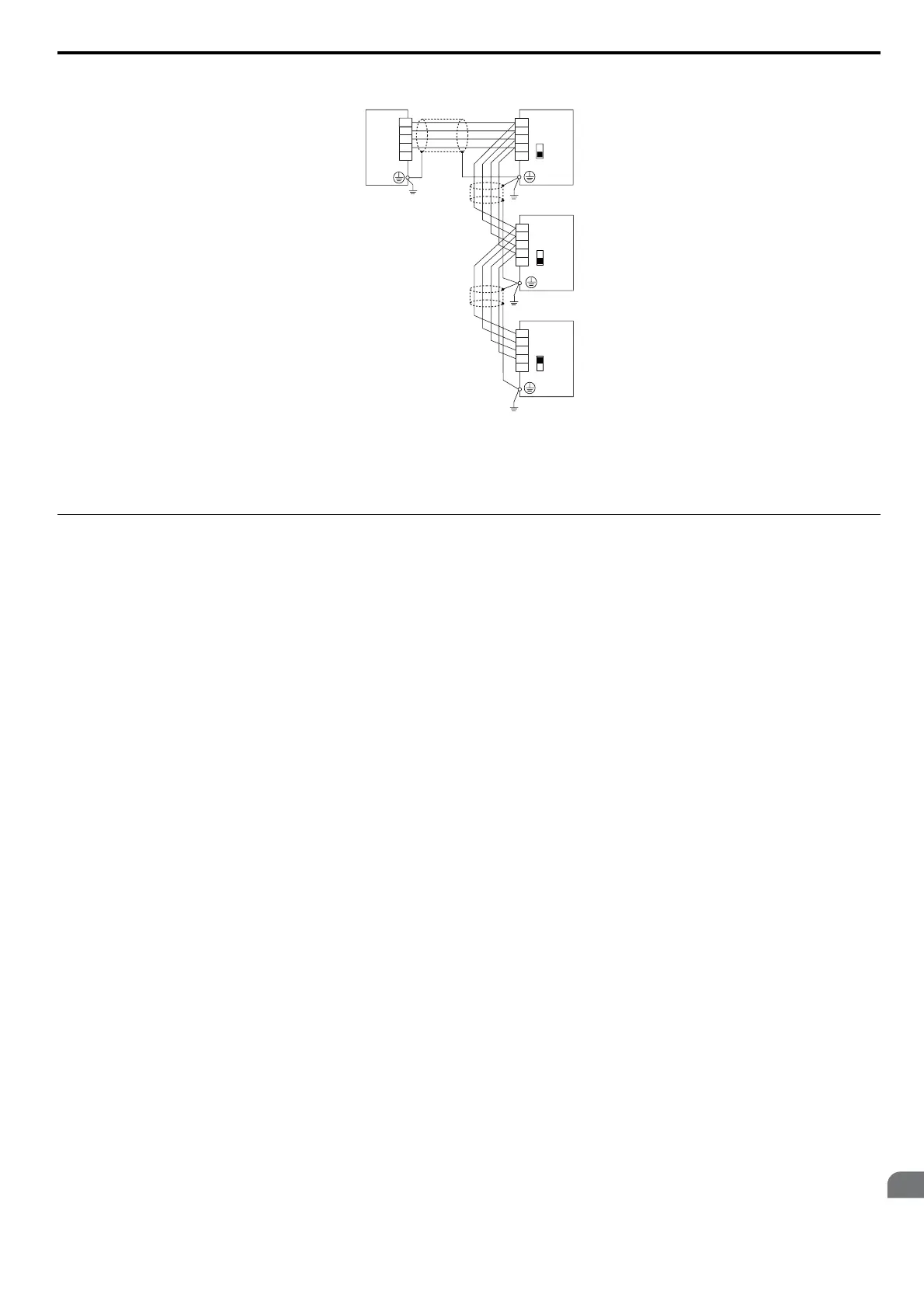

Figure C.4
Figure C.4 RS-422 Interface
Note: 1. Turn on the DIP switch on the drive that is located at the end of the network. All other slave devices must have this DIP switch set to
the OFF position.
2. Set H5-07 to “0” when using the RS-485 interface.
u Network Termination
The two ends of the MEMOBUS/Modbus network line have to be terminated. The drive has a built in termination
resistor that can be enabled or disabled using DIP switch S2. If a drive is located at the end of a network line, enable the
termination resistor by setting DIP switch S2 to the ON position. Disable the termination resistor on all slaves that are not
located at the network line end.
Refer to MEMOBUS/Modbus Termination on page 67 for details on setting S2.
R–
R+
S
–
S+
IG
PLC
Drive
Drive
Drive
S–
S+
R
–
R+
IG
S
–
S+
R
–
R+
IG
S
–
S+
R
–
R+
IG
S2
OFF
S2
OFF
S2
ON
To Next Page
