6.9 Diagnosing and Resetting Faults
YASKAWA ELECTRIC SIEP C710616 30B YASKAWA AC Drive T1000A Technical Manual 303
Troubleshooting
6
6.9 Diagnosing and Resetting Faults
When a fault occurs and the drive stops, follow the instructions below to remove whatever conditions triggered the fault,
then restart the drive.
u Fault Occurs Simultaneously with Power Loss
WARNING! Electrical Shock Hazard. Ensure there are no short circuits between the main circuit terminals (R/L1, S/L2, and T/L3) or
between the ground and main circuit terminals before restarting the drive. Failure to comply may result in serious injury or death and
will cause damage to equipment.
1. Turn on the drive input power.
2. Use monitor parameters U2- to display data on the operating status of the drive just before the fault
occurred.
3. Remove the cause of the fault and reset.
Note: 1. To find out what faults were triggered, check the fault history in U2-02. Information on drive status when the fault occurred such as
the frequency, current, and voltage can be found in U2-03 through U2-20. Refer to Viewing Fault Trace Data After Fault on
page 303 for information on how to view fault data.
2. When the fault continues to be displayed after cycling power, remove the cause of the fault and reset.
u If the Drive Still has Power After a Fault Occurs
1. Look at the digital operator for information on the fault that occurred.
2. Refer to Fault Displays, Causes, and Possible Solutions on page 277
3. Reset the fault. Refer to Fault Reset Methods on page 304.

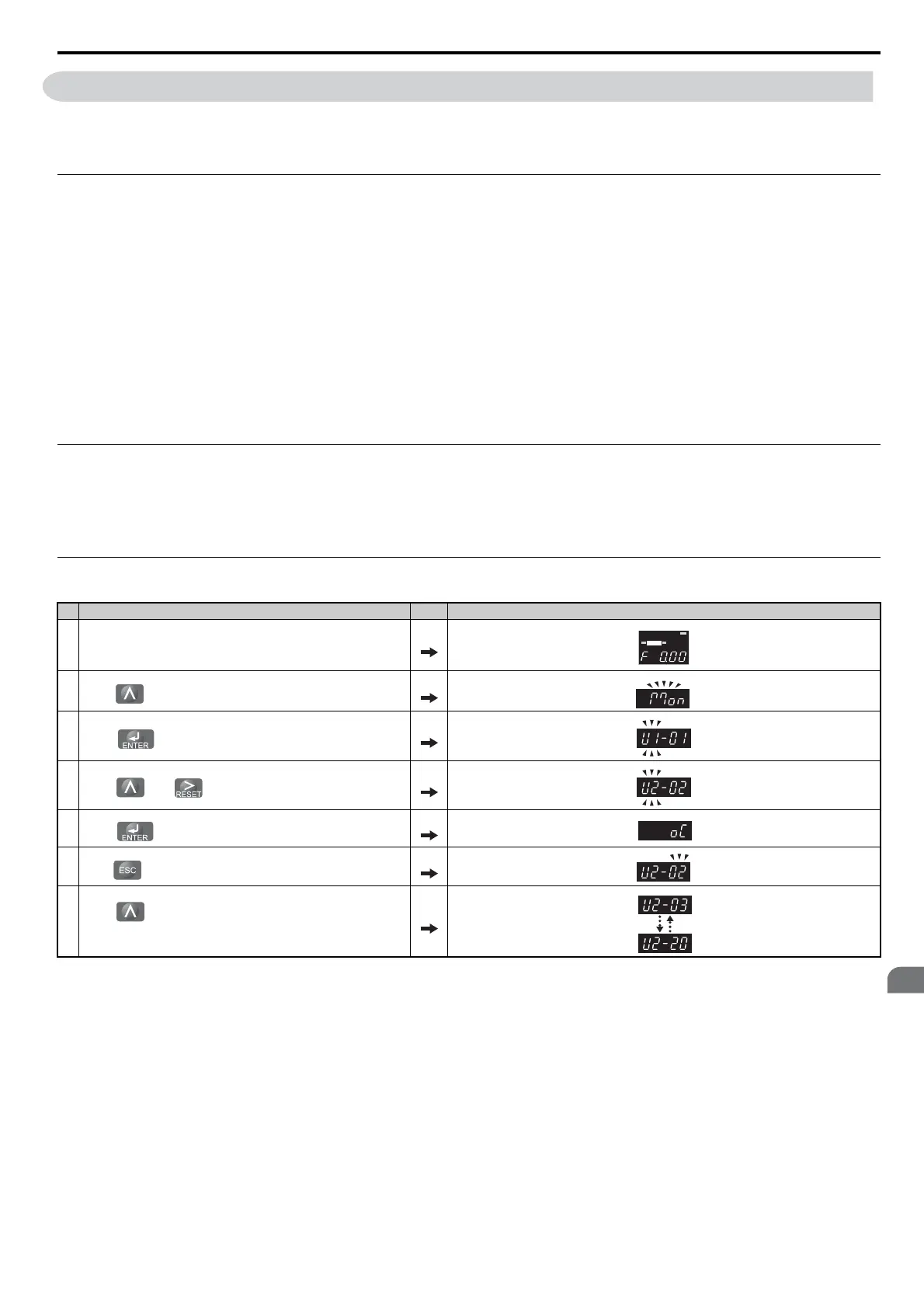

u Viewing Fault Trace Data After Fault
Step Display/Result
1. Turn on the drive input power. The first screen displays.
2.
Press until the monitor screen is displayed.
3.
Press to display the parameter setting screen.
4.
Press and until U2-02 (Fault History) is displayed.
5.
Press to view the most recent fault (oC in this example).
6.
Press to go back to the U2-02 display.
7.
Press to view drive status information when fault occurred.
Parameters U2-03 through U2-20 help determine the cause of a fault.
Parameters to be monitored differ depending on the control mode.
ALM
DIGITAL OPERATOR JVOP-182
REV DRV FOUT
DRV
To Next Page
