2.2 Mechanical Installation
YASKAWA ELECTRIC SIEP C710616 30B YASKAWA AC Drive T1000A Technical Manual 39
Mechanical
Installation
2
Note: Prevent foreign matter such as metal shavings or wire clippings from falling into the drive during installation and project
construction. Failure to comply could result in damage to the drive. Place a temporary cover over the top of the drive during
installation. Remove the temporary cover before startup, as the cover will reduce ventilation and cause the drive to overheat.
External/Face-Mount
1. Cut an opening in the enclosure panel for the digital operator as shown in Figure 2.7.
2. Position the digital operator so the display faces outwards, and mount it to the enclosure panel as shown in
Figure 2.6.

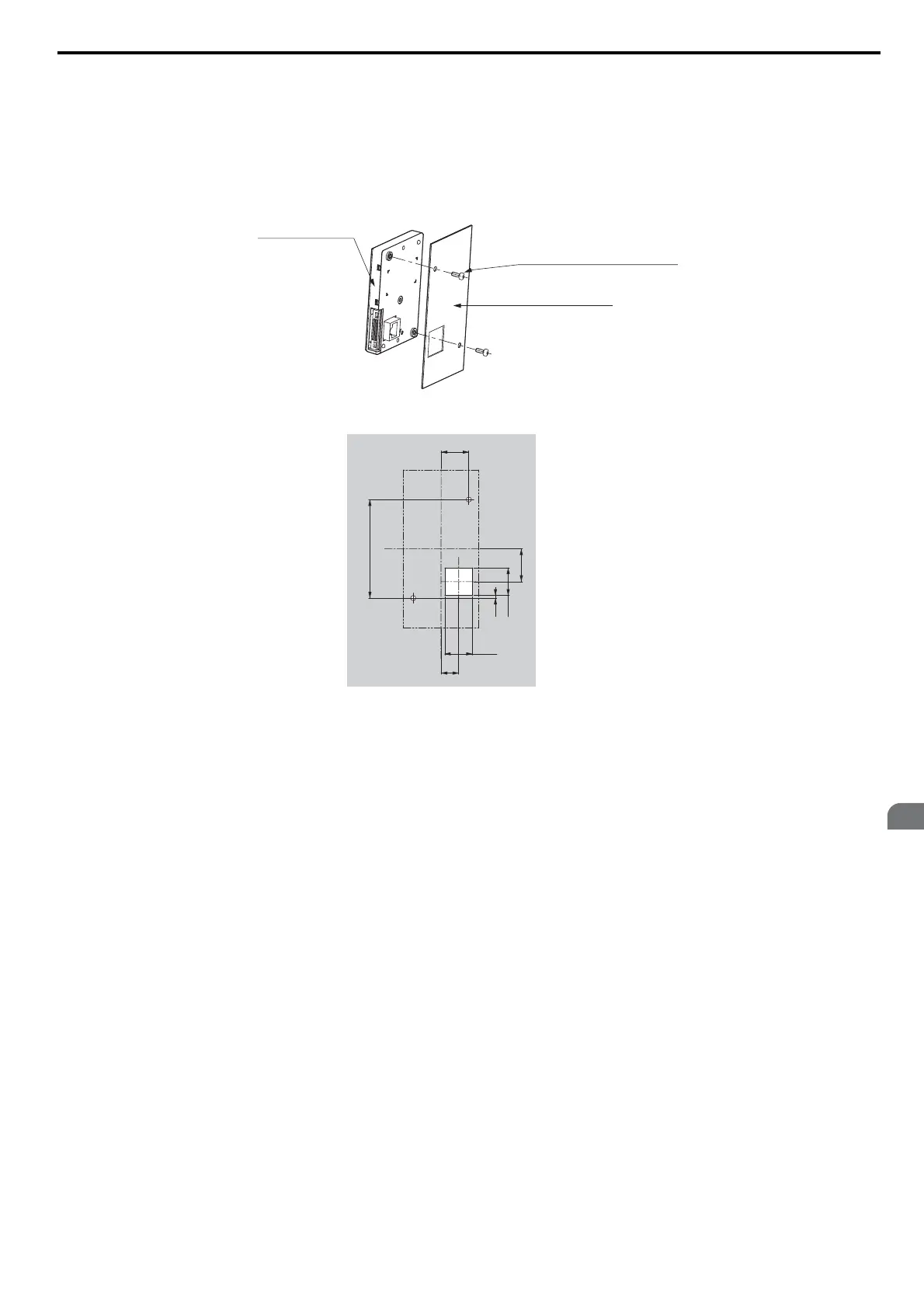

Figure 2.6
Figure 2.6 External/Face-Mount Installation
Figure 2.7
Figure 2.7 Panel Cut-Out Dimensions (External/Face-Mount Installation)
Digital Operator
M3 × 6
Phillips recessed
pan head machine screw × 2
Enclosure panel
Unit: mm
22
22
14
26
22
78
2
Unit: mm
