8.5 Installing Peripheral Devices
YASKAWA ELECTRIC SIEP C710616 30B YASKAWA AC Drive T1000A Technical Manual 347
Peripheral Devices & Options
8
• Use shielded motor and control circuit lines and lay control circuit lines at least 30 cm away from power lines in order
to prevent malfunction due to induced noise.

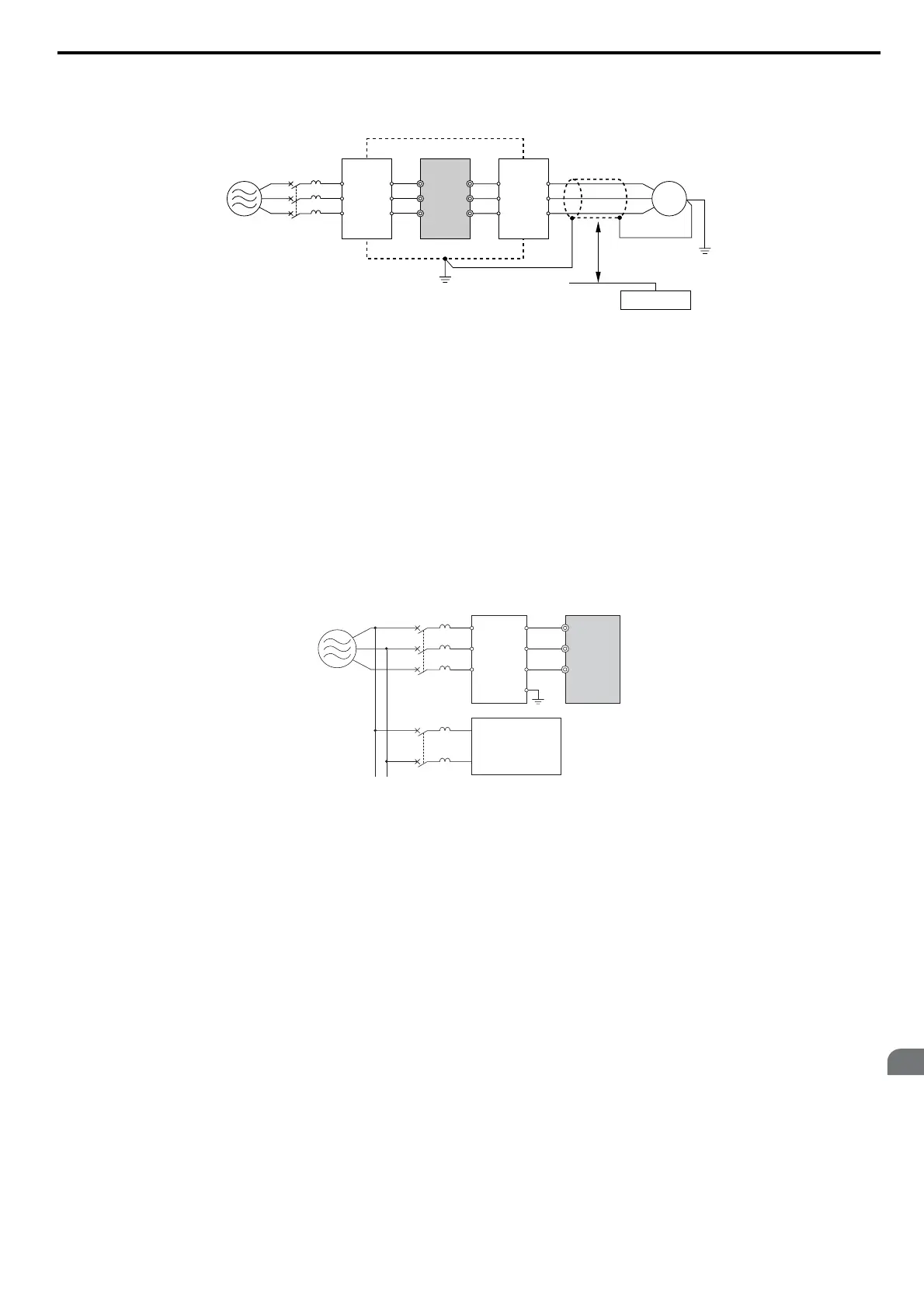

Figure 8.13
Figure 8.13 Reducing Radio Frequency Noise
n Input-Side Noise Filter
Drive outputs generate noise as a result of high-speed switching. This noise flows from inside the drive back to the power
supply, possibly affecting other equipment. Installing a noise filter to the input side of the drive can reduce the amount of
noise flowing back into the power supply. This also prevents noise from entering the drive from the power supply.
• Use a noise filter specifically designed for AC drives.
• Install the noise filter as close as possible to the drive.
Figure 8.14
Figure 8.14 Input-Side Noise Filter (Three-Phase 200/400 V)
This drive is tested according to European standards IEC61800-5-1 and complies with the EMC guidelines. Refer to
EMC Filter Installation on page 477 for details about EMC filter selection and installation.
A – Metal enclosure F – Shielded motor cable
B – Power supply G – Motor
C – Input noise filter H – Separate at least 30 cm
D – Drive I – Control signal lines
E – Output noise filter J – Controller
A – Power supply C – Drive
B – Input-side noise filter D – Other control device
