3.6 Digital Operator and Front Cover
YASKAWA ELECTRIC SIEP C710616 30B YASKAWA AC Drive T1000A Technical Manual 53
Electrical Installation
3
Figure 3.16

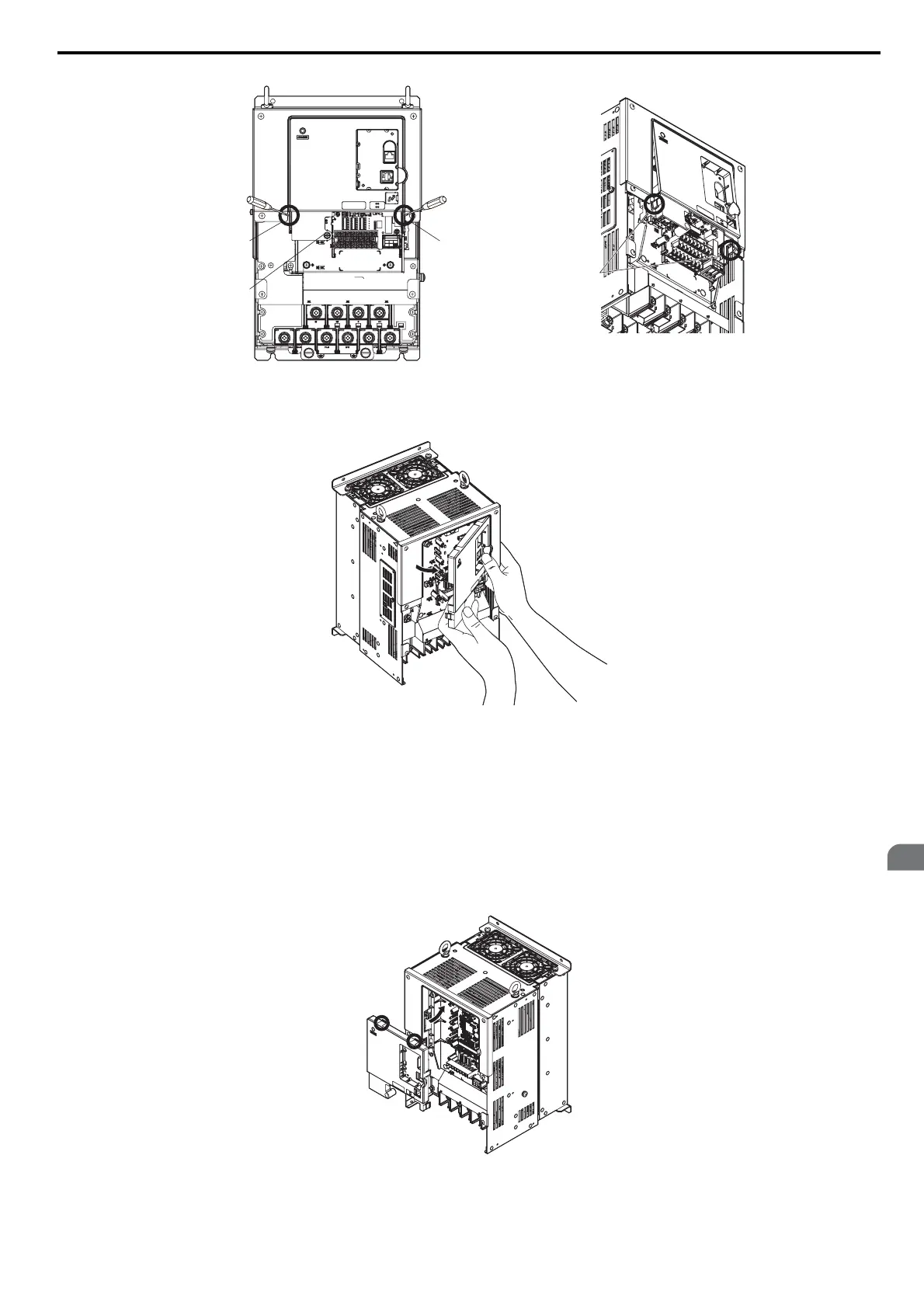

Figure 3.12 Remove the Front Cover (2A0110 to 2A0415 and 4A0058 to 4A0362)
4. First unhook the left side of the front cover, then swing the left side towards you as shown in the figure below
until the cover comes off.
Figure 3.17
Figure 3.13 Remove the Front Cover (2A0110 to 2A0415 and 4A0058 to 4A0362)
n Reattaching the Front Cover
2A0004 to 2A0081 and 4A0002 to 4A0044
Reverse the instructions given in Remove the Front Cover (2A0004 to 2A0081 and 4A0002 to 4A0044) on page 52 to
reattach the front cover. Pinch inwards on the hooks found on each side of the front cover while guiding it back into the
drive. Make sure it clicks firmly into place.
2A0110 to 2A0415 and 4A0058 to 4A0362
1. Slide the front cover so that the hooks on the top connect to the drive.
Figure 3.18
Figure 3.14 Reattach the Front Cover (2A0110 to 2A0415 and 4A0058 to 4A0362)
2. Once the hooks have connected to the drive, press firmly on the cover to make sure it locks into place.
HookHook
Front cover
installation screw
Free hooks on both
sides of the cover
To Next Page
