Defining Multicast Groups 213
■ Static — Attaches the port to the Multicast group as static
member.
■ Forbidden — Indicates the port is not included in the Multicast
group, even if IGMP snooping designated the port to join a
Multicast group.
■ Excluded — Excludes the interface from the Multicast group.
■ None — Indicates the port is not part of a Multicast group.
To remove Multicast Groups:
1 Click Policy > Multicast > Multicast Group > Remove Group. The
Multicast Port Remove Group Page opens:

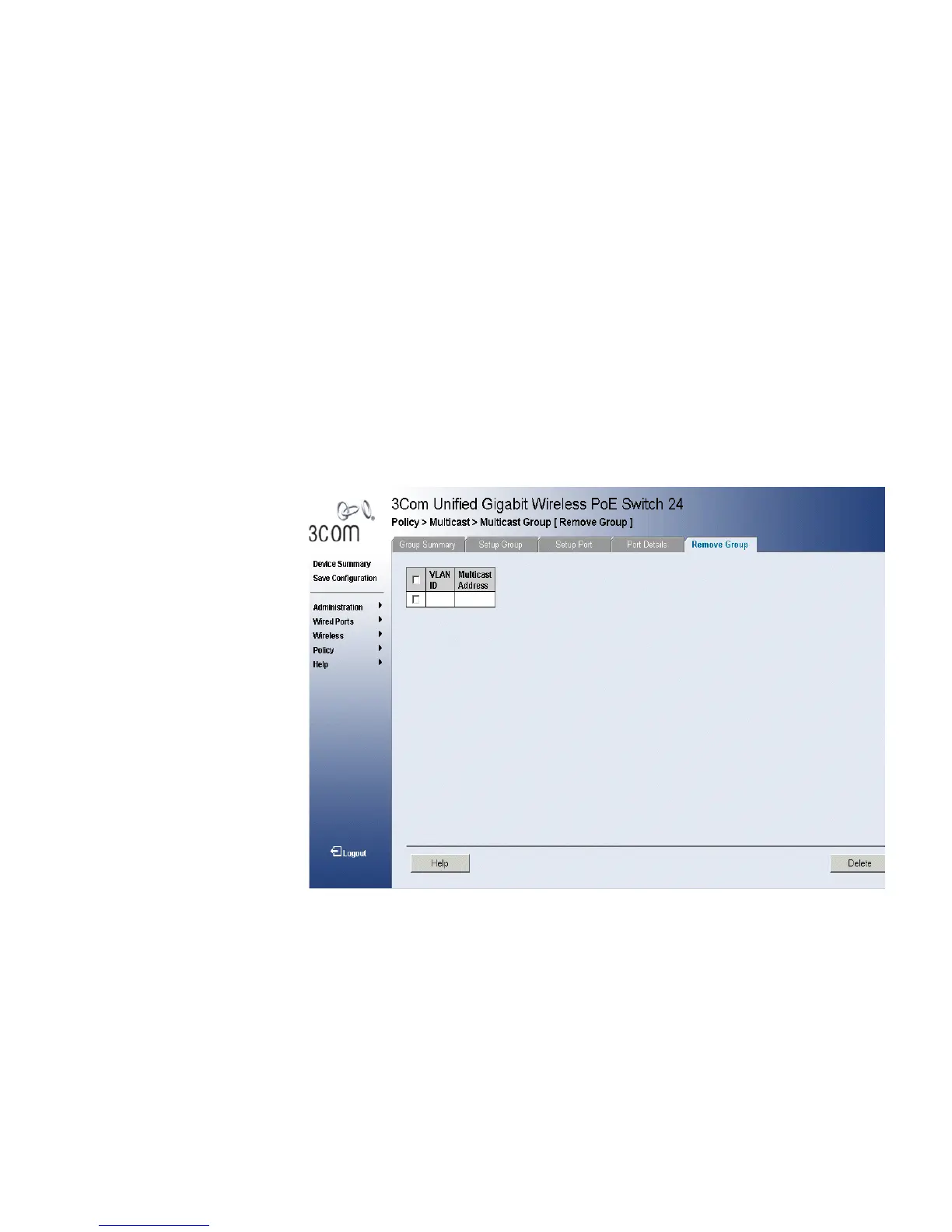

Figure 111 Multicast Port Remove Group Page
The Multicast Port Remove Group Page contains the following
information:
■ Remove — Removes the selected access profile. The possible field
values are:
■ Checked — Removes the selected multicast group.
■ Unchecked — Maintains the selected multicast group.
■ VLAN ID — Identifies a VLAN and contains information about the
Multicast group address.
