212 CHAPTER 10: CONFIGURING MULITCAST FORWARDING
■ Excluded — Excludes the interface from the Multicast group.
■ None — Indicates the port is not part of a Multicast group.
2 Select the Interface Status.
3 Click . The Interface Status is set, and the device is enabled.
To view Port Details:
1 Click Policy > Multicast > Multicast Group > Port Details. The
Multicast Port Details Page opens:

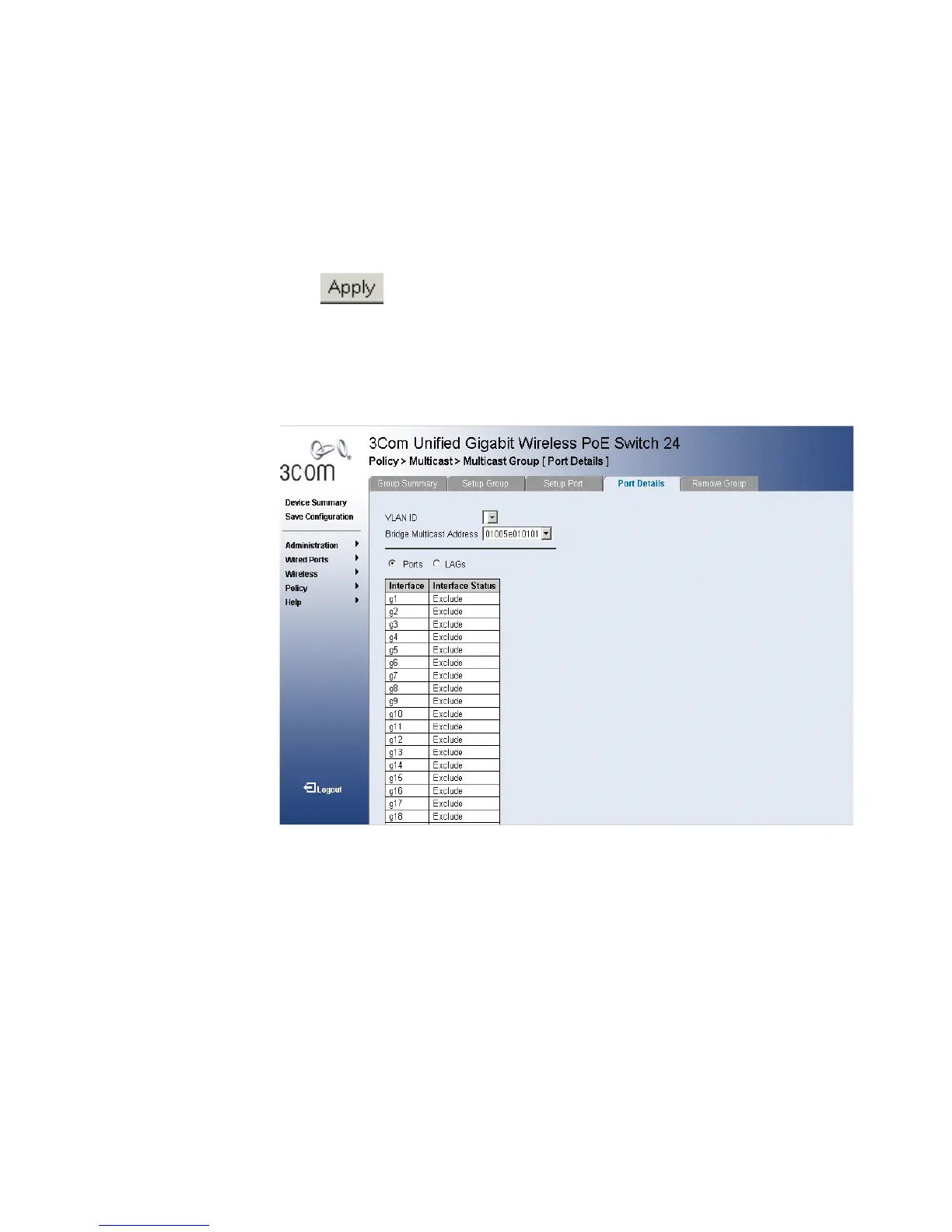

Figure 110 Multicast Port Details Page
The Multicast Port Details Page contains the following information:
■ VLAN ID — Identifies a VLAN and contains information about the
Multicast group address.
■ Bridge Multicast Address — Identifies the Multicast group MAC/IP
address.
■ Ports/LAG — Ports that can be added to a Multicast service.
■ Interface — Displays the port number.
■ Interface Status— Indicates the port status. The possible field values
are:
