Understanding the 3Com Embedded Web Interface 23

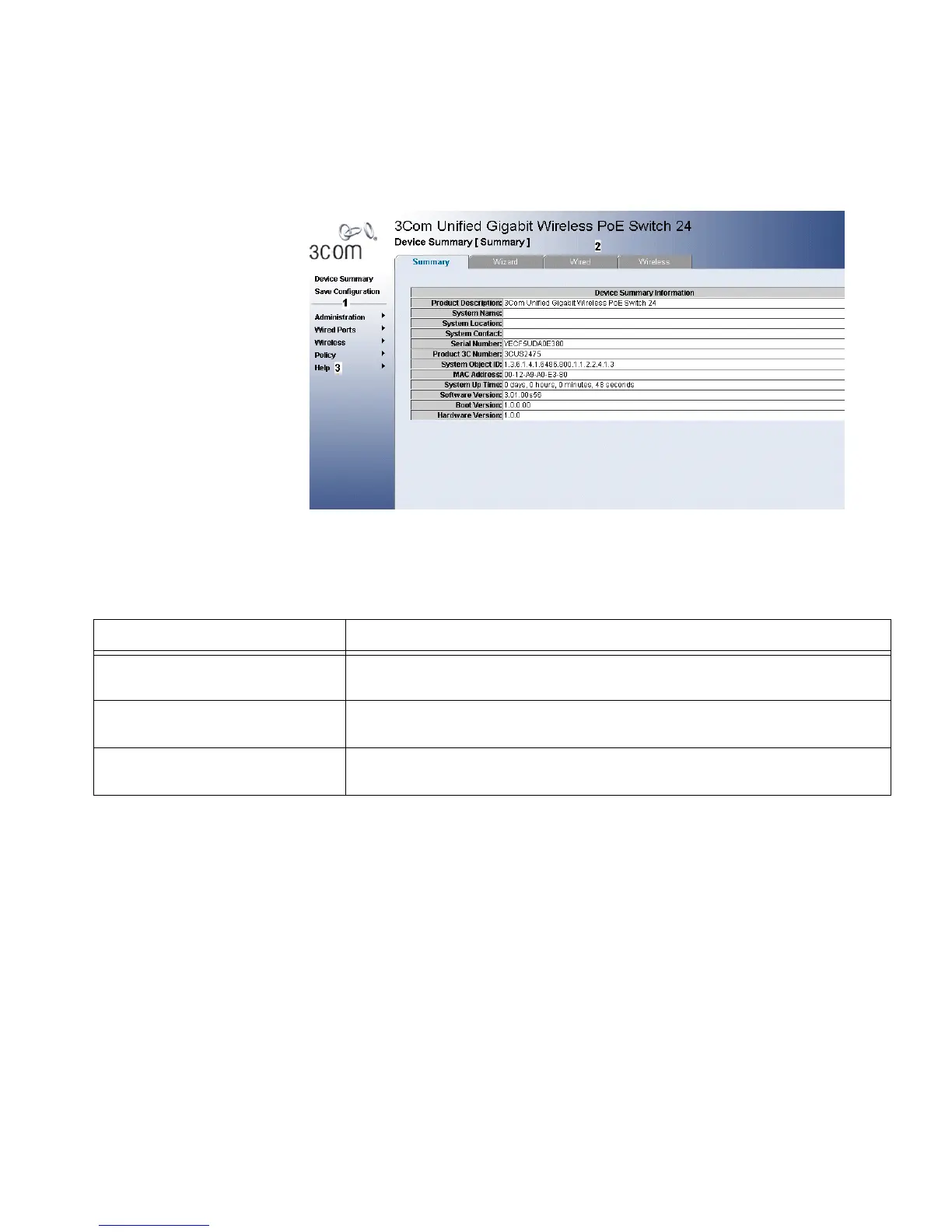

Figure 8 Embedded Web Interface Components
The following table lists the user interface components with their
corresponding numbers:
This section provides the following additional information:
■ Device Representation — Provides an explanation of the user
interface buttons, including both management buttons and task
icons.
■ Using the 3Com Embedded Web Interface Management
Buttons — Provides instructions for adding, modifying, and deleting
configuration parameters.
Device
Representation
The 3Com Embedded Web Interface Home Page contains a graphical
panel representation of the device that appears within the Wired Tab.
Table 1: Interface Components
View Description
1 Tree View Tree View provides easy navigation through the configurable device fea-
tures. The main branches expand to display the sub-features.
2 Tab View The Tab Area enables navigation through the different device features.
Click the tabs to view all the components under a specific feature.
3 3Com Web Interface Informa-
tion Tabs
Provide access to online help, and contain information about the EWS.
