24 CHAPTER 2: GETTING STARTED
To access the Device Representation:
1 Click Device Summary > Wired.

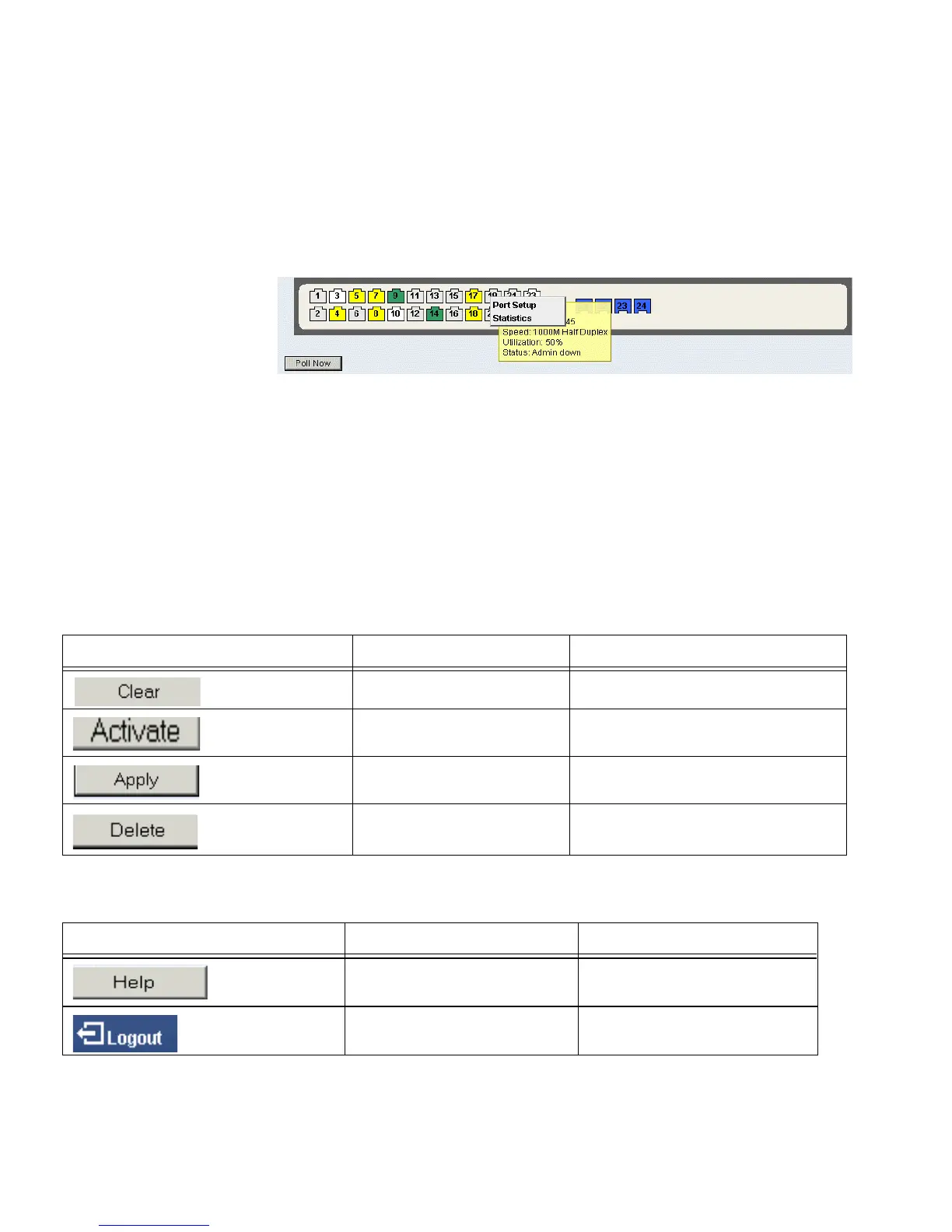

Figure 9 Device Representation
2 By selecting a specific port with your mouse, you can either choose to
configure the port settings or view the port statistics.
For detailed information on configuring ports, please refer to Section 6
Configuring Wired Ports.
Using the 3Com
Embedded Web
Interface
Management Buttons
Configuration Management buttons and icons provide an easy method
of configuring device information, and include the following:
Table 2: 3Com Web Interface Configuration Buttons
Button Button Name Description
Clear Logs Clears system logs.
Activate
Activates creation of configuration
entries.
Apply
Saves configuration changes to the
device.
Delete Deletes configuration settings.
Table 3: 3Com Web Interface Information Tabs
Tab Tab Name Description
Help Opens the online help.
Logout Opens the Logout page.
