Enabling Storm Control 69
To view Storm Control Traffic:
1 Click Policy > Storm Control > Summary. The Storm Control Summary
Page opens:

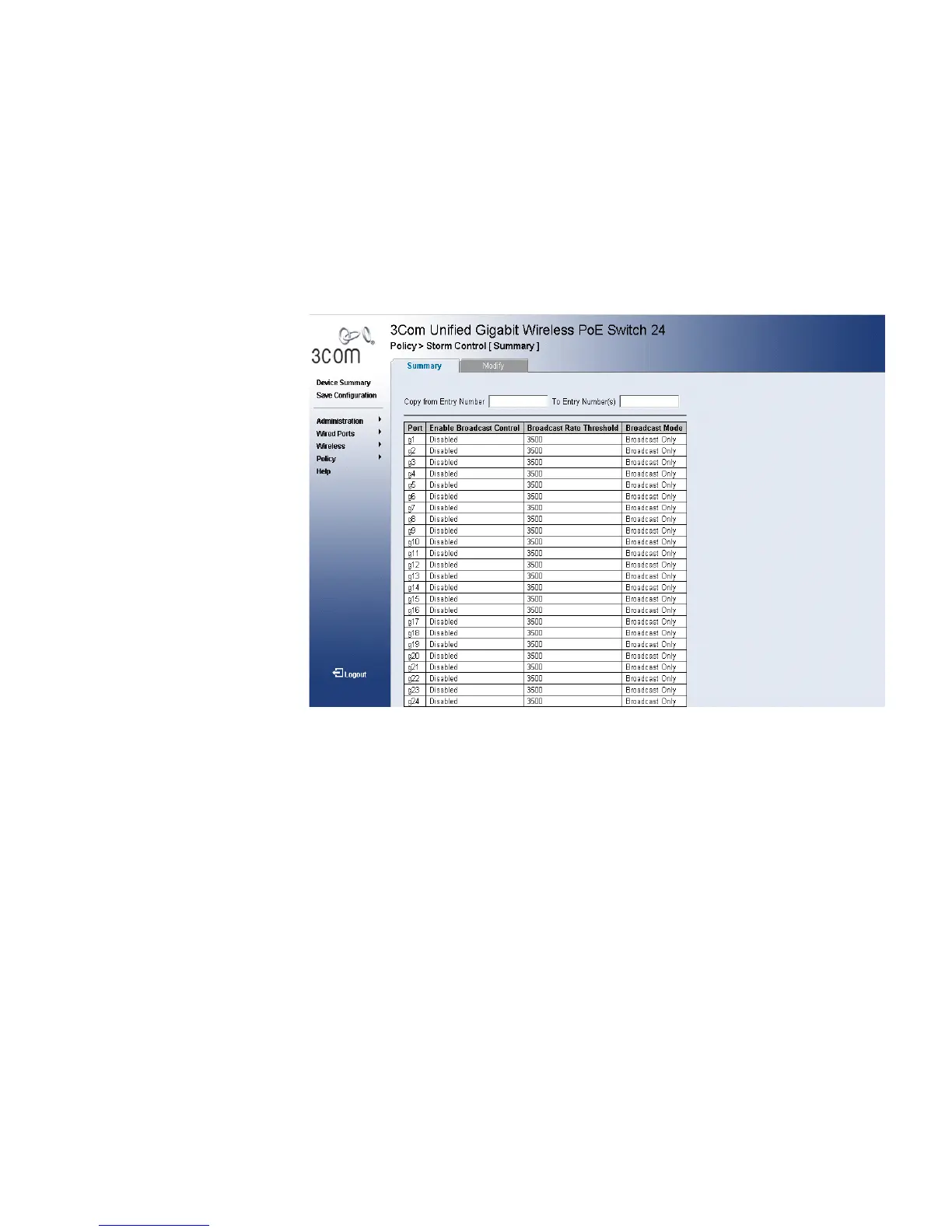

Figure 37 Storm Control Summary Page
The Storm Control Summary Page contains the following fields:
■ Copy from Entry Number — Copies the storm control parameters
from the selected port.
■ To Entry Numbers — Copies the storm control parameters to the
selected ports.
■ Port — Indicates the port from which storm control is enabled.
■ Enable Broadcast Control — Indicates if forwarding Broadcast
packet types is enabled on the interface.
■ Enable — Enables broadcast control on the selected port.
■ Disable — Disables broadcast control on the selected port.
■ Broadcast Rate Threshold — Indicates the maximum rate (kilobits
per second) at which unknown packets are forwarded. The range is
3,500-1,000,000. The default value is 3,500.
■ Broadcast Mode — Specifies the Broadcast mode currently enabled
on the device. The possible field values are:
