26 Maintenance and Troubleshooting
3
Troubleshooting the 2100 Expert Software
Run Installation Qualification Test
Run Installation Qualification Test
If it is suspected that the 2100 Expert Software is not working properly,
check for corrupted or missing files.

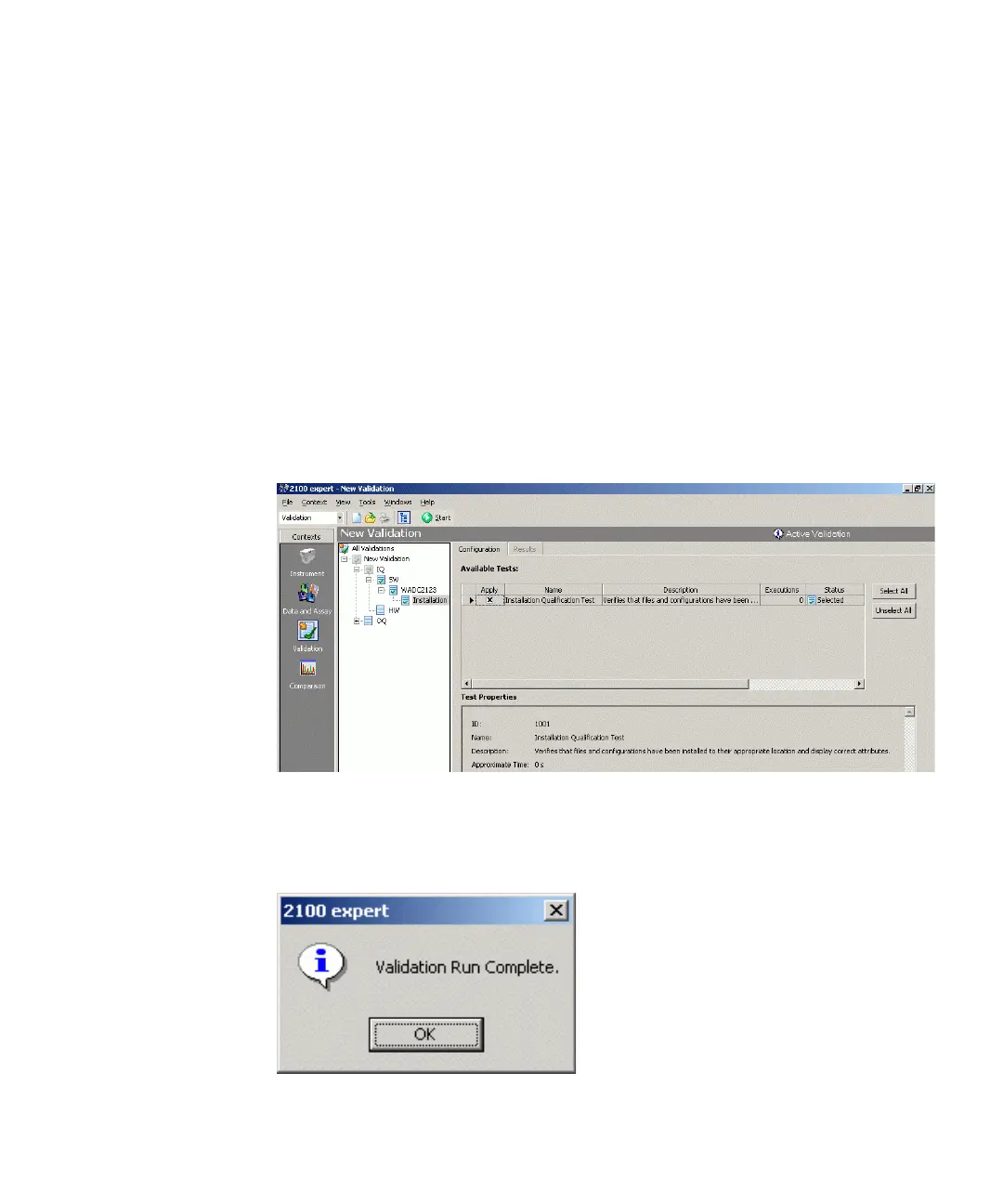

1 Start the 2100 Expert Software and select the Validation (Verification)
context.
2 In the tree view, select New Validation (Verification) > Installation Validation
(Verification) > Software > [My PC Name] > Installation Qualification Test.
3 Under Available Tests select the checkbox of the Installation Qualification Test.
This test verifies that files and configurations have been installed to their
appropriate locations and display correct attributes.
4 Start the software test tool by clicking Start.
5 The Save As dialog box appears. Define the name and location of the
verification file.
6 When the test is finished, the Validation Run Complete message appears.
