For a 2- channel oscilloscope, connect a BNC tee to the equal length
cables. Then connect a BNC(f)-to- BNC(f) (also called a barrel
connector) to the tee as shown below.
For a 4- channel oscilloscope, connect BNC tees to the equal- length
cables as shown below. Then connect a BNC(f)- to-BNC(f) (barrel
connector) to the tee as shown below.

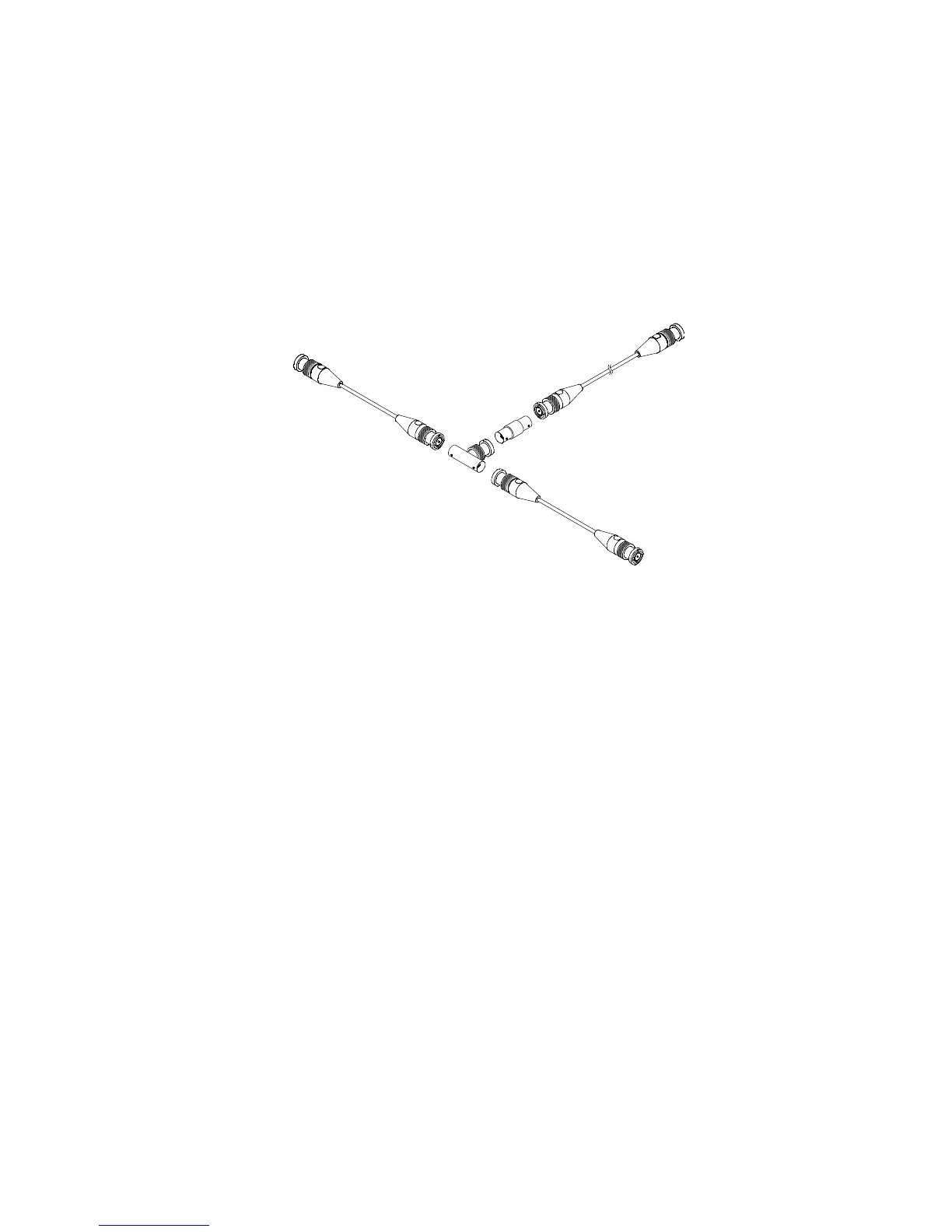

Figure 49 User Calibration cable for 2-channel oscilloscope
To Channel 1
To Channel 2
Long cable
to TRIG OUT
