Testing
Machine
and
Electronic
Control
Functions

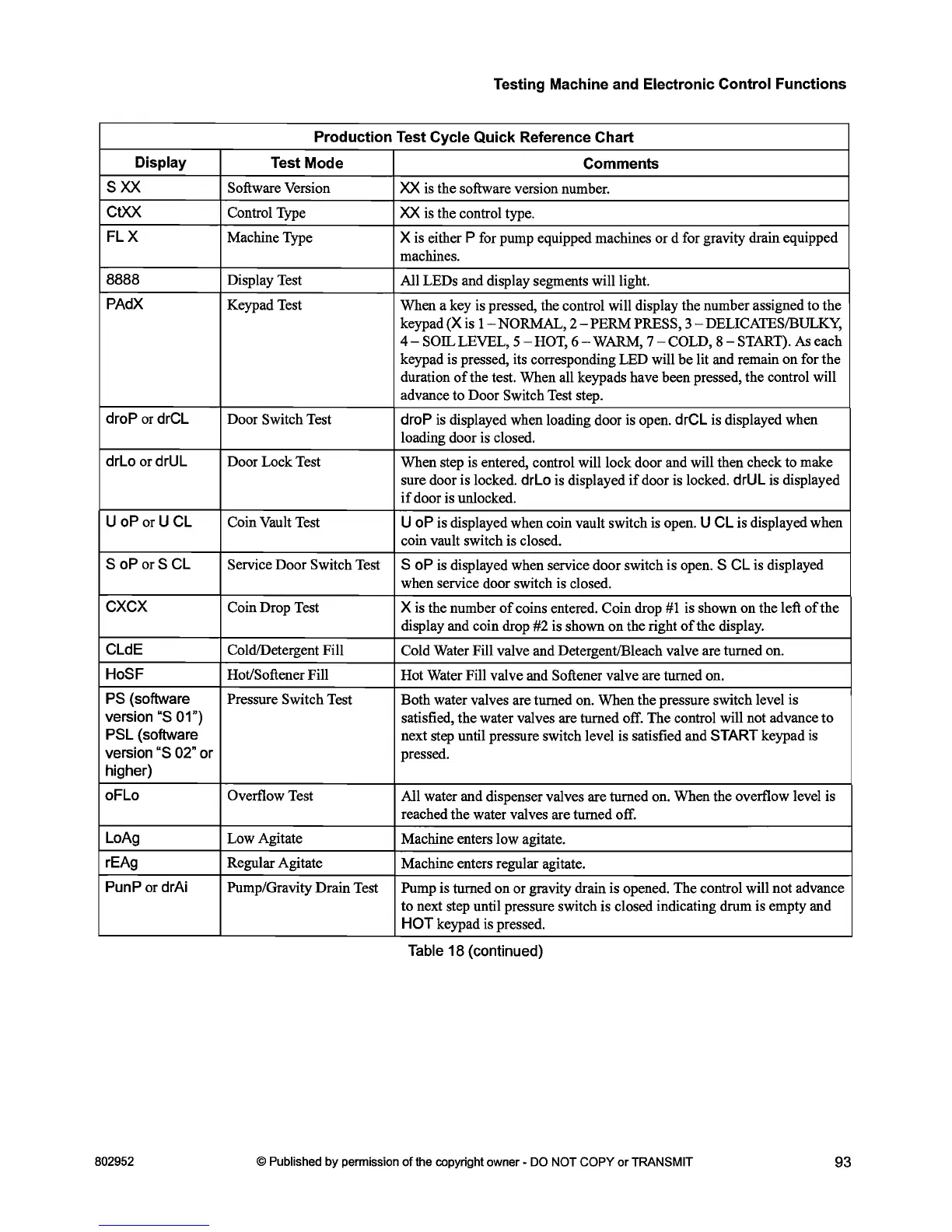

Production
Test
Cycle
Quick
Reference
Chart
Display
Test
Mode
Comments
SXX
Software Version
XX
is the software version number.
CtXX
Control Type
XX
is the control type.
FLX
Machine Type
X is either P for pump equipped machines or d for gravity drain equipped
machines.
8888
Display Test
All LEDs and display segments will light.
PAdX
Keypad Test
When a key is pressed, the control will display the number assigned to the
keypad (X is
1-
NORMAL, 2 - PERM PRESS, 3 - DELICATESIBULKY,
4 - SOIL LEVEL, 5 - HOT, 6 - WARM, 7 - COLD,
8 - START). As each
keypad is pressed, its corresponding LED will be lit and remain on for the
duration
of
the test. When all keypads have been pressed, the control will
advance to Door Switch Test step.
droP
or drCL
Door Switch Test
droP
is displayed when loading door is open. drCL is displayed when
loading door is closed.
drLo
ordrUL
Door Lock Test
When step is entered, control will lock door and will then check to make
sure door is locked. drLo is displayed
if
door is locked. drUL is displayed
if
door is unlocked.
U
oP
or U CL
Coin Vault Test
U
oP
is displayed when coin vault switch is open. U CL is displayed when
coin vault switch is closed.
S
oPorS
CL
Service Door Switch Test
S
oP
is displayed when service door switch is open. S CL is displayed
when service door switch is closed.
CXCX
Coin Drop Test
X is the number
of
coins entered. Coin drop
#1
is shown
on
the left
of
the
display and coin drop #2 is shown
on
the right
of
the display.
CLdE
ColdIDetergent Fill
Cold Water Fill valve and DetergentIBleach valve are turned on.
HoSF
Hot/Softener Fill
Hot Water Fill valve and Softener valve are turned on.
PS
(software
version
"S 01")
PSL
(software
version
"S
02"
or
higher)
Pressure Switch Test
Both water valves are turned on. When the pressure switch level is
satisfied, the water valves are turned off. The control will not advance
to
next step until pressure switch level is satisfied and START keypad is
pressed.
oFLo
Overflow Test
All water and dispenser valves are turned on. When the overflow level is
reached the water valves are turned off.
LoAg Low Agitate
Machine enters low agitate.
rEAg
Regular Agitate
Machine enters regular agitate.
PunP
ordrAi
Pump/Gravity Drain Test
Pump is turned
on
or gravity drain is opened. The control will not advance
to
next step until pressure switch is closed indicating drum is empty and
HOT keypad is pressed.
Table
18
(continued)
802952 © Published
by
permission
of
the copyright owner - DO
NOT
COpy
or
TRANSMIT
93
