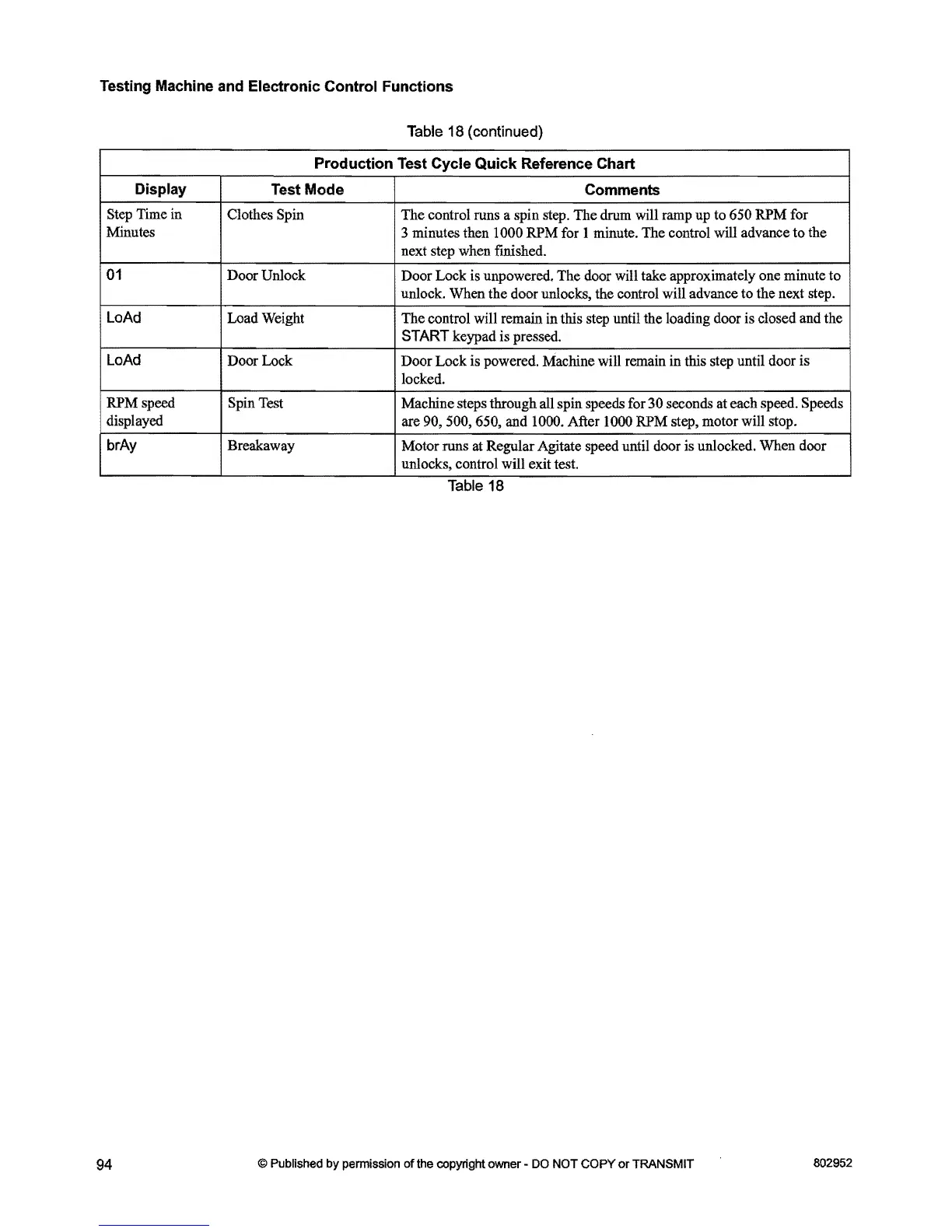

Testing Machine and Electronic Control Functions
Table
18
(continued)
Production Test Cycle
Quick
Reference Chart
Display
Test Mode Comments
Step Time in
Minutes
Clothes Spin
The
control runs a spin step. The drum will ramp up to 650 RPM for
3 minutes then 1000
RPM
for 1 minute. The control will advance
to
the
next step when finished.
01
Door Unlock
Door Lock is unpowered.
The
door will take approximately one minute
to
unlock. When the door unlocks, the control will advance to the next step.
LoAd
Load Weight
The
control will remain
in
this step until the loading door is closed and the
START keypad is pressed.
LoAd
Door Lock
Door
Lock
is powered. Machine will remain in this step until door
is
locked.
RPM speed
displayed
Spin Test
Machine steps through all spin speeds for 30 seconds at each speed. Speeds
are 90, 500, 650, and 1000. After 1000 RPM step, motor will stop.
brAy Breakaway
Motor runs at Regular Agitate speed until door is unlocked. When door
unlocks, control will exit test.
Table
18
94
