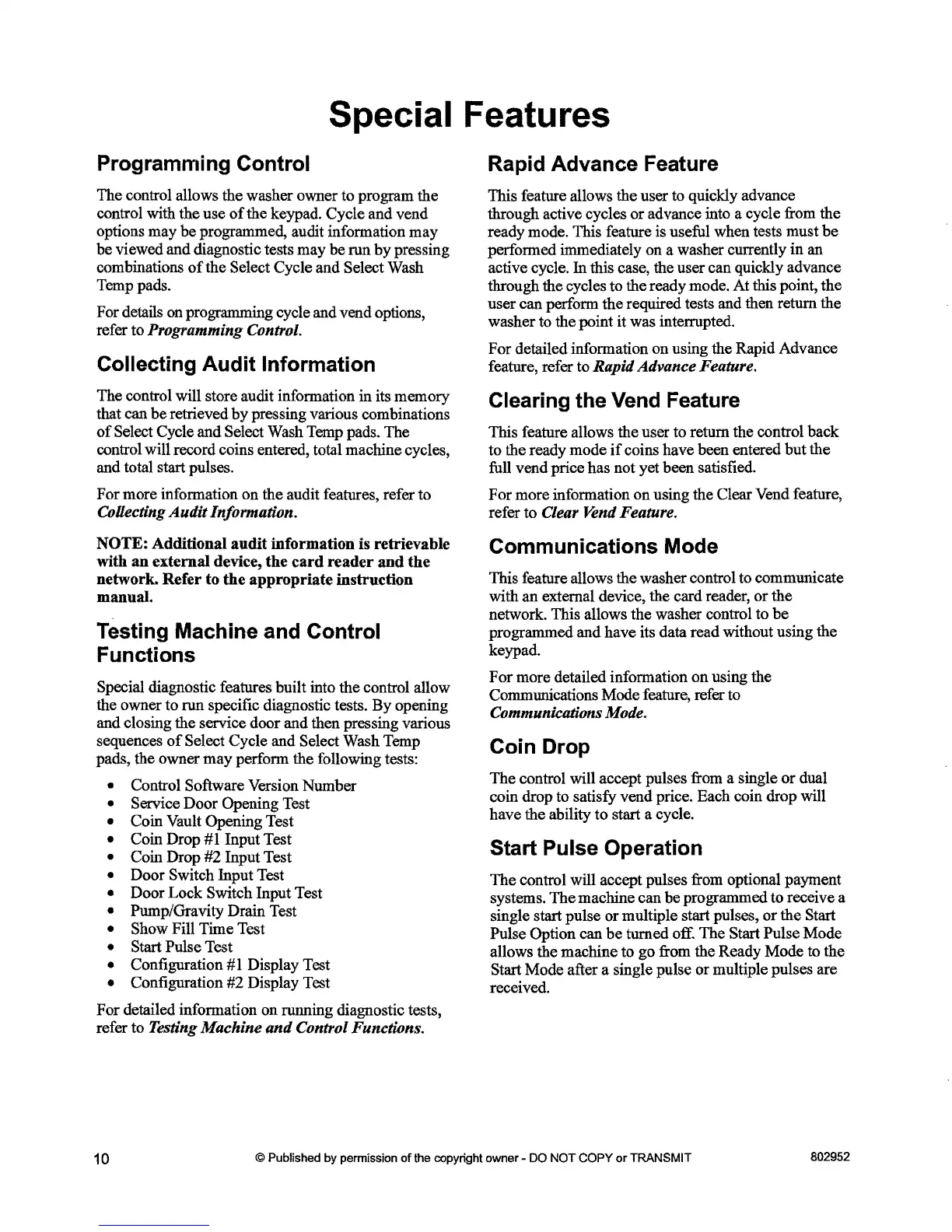

Special Features
Programming Control
The control allows the washer owner to program the
control with the use
of
the keypad. Cycle and vend
options may
be
programmed, audit information
may
be
viewed and diagnostic tests may
be
run
by
pressing
combinations
of
the Select Cycle and Select Wash
Temp pads.
For details on programming cycle and vend options,
refer to
Programming Control.
Collecting Audit Information
The control will store audit information in its memory
that can
be
retrieved
by
pressing various combinations
of
Select Cycle and Select Wash Temp pads. The
control will record coins entered, total machine cycles,
and total start pulses.
For more information on the audit features, refer to
eoOecting
Audit
Information.
NOTE: Additional audit information is retrievable
with an external device, the
card
reader and the
network. Refer to the appropriate instruction
manual.
Testing Machine and Control
Functions
Special diagnostic features built into the control allow
the owner to run specific diagnostic tests. By opening
and closing the service door and then pressing various
sequences
of
Select Cycle and Select Wash Temp
pads, the owner
may
perform the following tests:
• Control Software Version Number
• Service Door Opening Test
• Coin Vault Opening Test
• Coin Drop
#1
Input Test
• Coin Drop #2 Input Test
• Door Switch Input Test
• Door Lock Switch Input Test
• Pump/Gravity Drain Test
• Show Fill Time Test
• Start Pulse Test
• Configuration
#1
Display Test
• Configuration
#2
Display Test
For detailed information on running diagnostic tests,
refer to
Testing Machine
and
Control Functions.
Rapid Advance Feature
This feature allows the user to quickly advance
through active cycles
or
advance into a cycle from the
ready mode. This feature is useful when tests must
be
performed immediately on a washer currently
in
an
active cycle. In this case, the user can quickly advance
through the cycles to the ready mode. At this point, the
user can perform the required tests and then return the
washer to the point
it
was interrupted.
For detailed information on using the Rapid Advance
feature, refer to
Rapid Advance Feature.
Clearing the Vend Feature
This feature allows the user to return the control back
to the ready mode
if
coins have been entered
but
the
full vend price has not yet been satisfied.
For more information on using the Clear Vend feature,
refer to
Clear Vend Feature.
Communications Mode
This feature allows the washer control to communicate
with
an
external device, the card reader, or the
network. This allows the washer control to
be
programmed and have its data read without using the
keypad.
For
more detailed information on using the
Communications Mode feature, refer to
Communications Mode.
Coin Drop
The control will accept pulses from a single or dual
coin drop to satisfy vend price. Each coin drop will
have the ability to start a cycle.
Start Pulse Operation
The
control will accept pulses from optional payment
systems.
The
machine can be programmed to receive a
single start pulse or multiple start pulses,
or
the Start
Pulse Option can
be
turned off. The Start Pulse Mode
allows the machine to go from the Ready Mode
to the
Start Mode after a single pulse
or
multiple pulses are
received.
