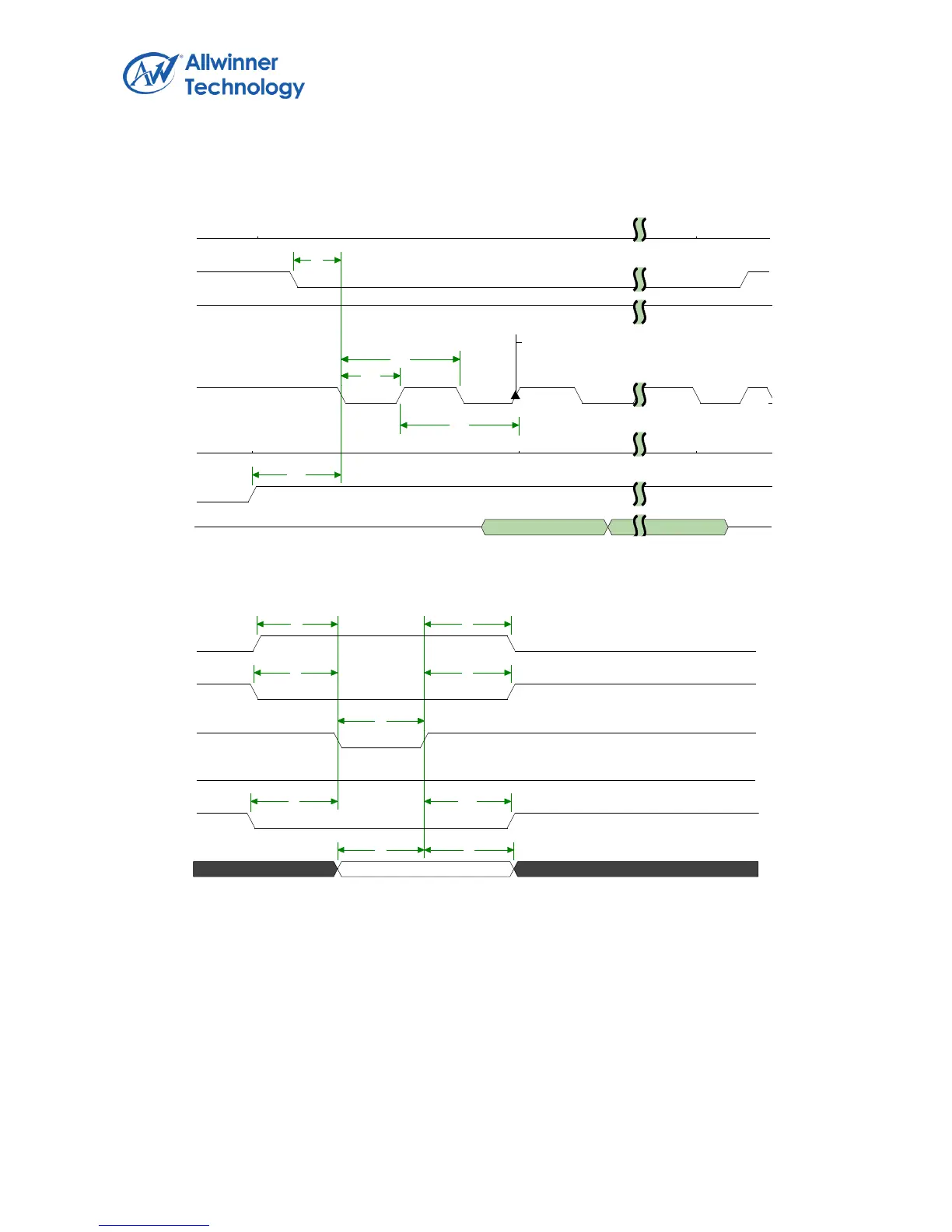

Extending EDO type Serial Access Mode (SAM2)
Data(0)
Data(n-1)
sample
t10
t13
t14
t12
t14
t12
t3
NFC_CLE
NFC_CE#
NFC_WE#
NFC_RE#
NFC_ALE
NFC_RB#
NFC_IOx
Command Latch Cycle
COMMAND
t9t8
t11t7
t5t5
t4t3
t2t1
NFC_CLE
NFC_CE#
NFC_WE#
NFC_RE#
NFC_ALE
NFC_IOx
