Allwinner A20 - CSI1 Register List

A20 User Manual (Revision 1.2) Copyright © 2013 Allwinner Technology Co., Ltd. All Rights Reserved. Page 390 / 812

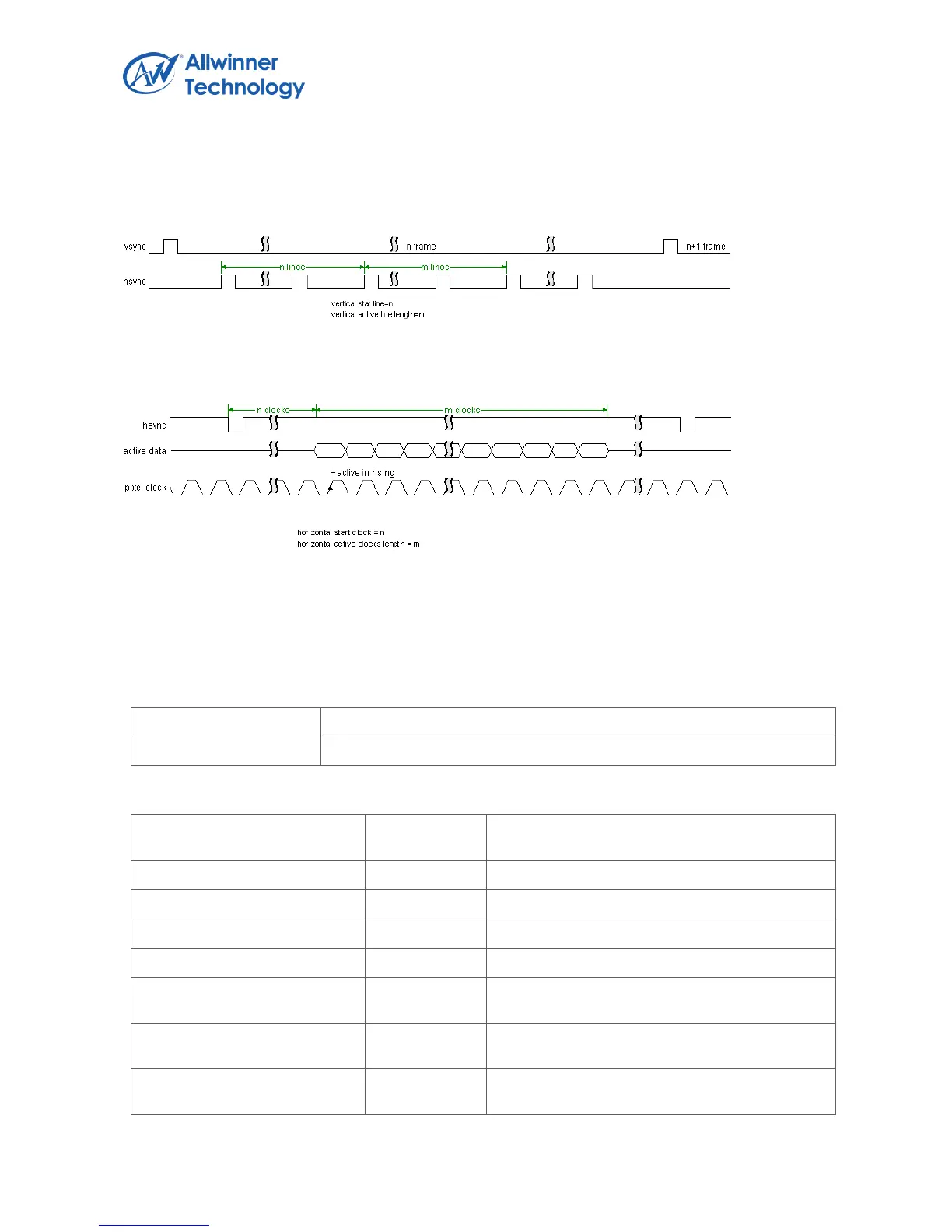

Vref= positive; Href= positive
vertical size setting
horizontal size setting and pixel clock timing(Href= positive)
4.2.5. CSI1 Register List
Module Name
Base Address
CSI1
0x01C1D000
Register Name
Offset
Description
CSI1_EN_REG
0X000
CSI enable register
CSI1_CFG_REG
0X004
CSI configuration register
CSI1_CAP_REG
0X008
CSI capture control register
CSI1_SCALE_REG
0X00C
CSI scale register
CSI1_F0_BUFA_REG
0X010
CSI FIFO 0 output buffer-A address register
CSI1_F0_BUFB_REG
0X014
CSI FIFO 0 output buffer-B address register
CSI1_F1_BUFA_REG
0X018
CSI FIFO 1 output buffer-A address register
