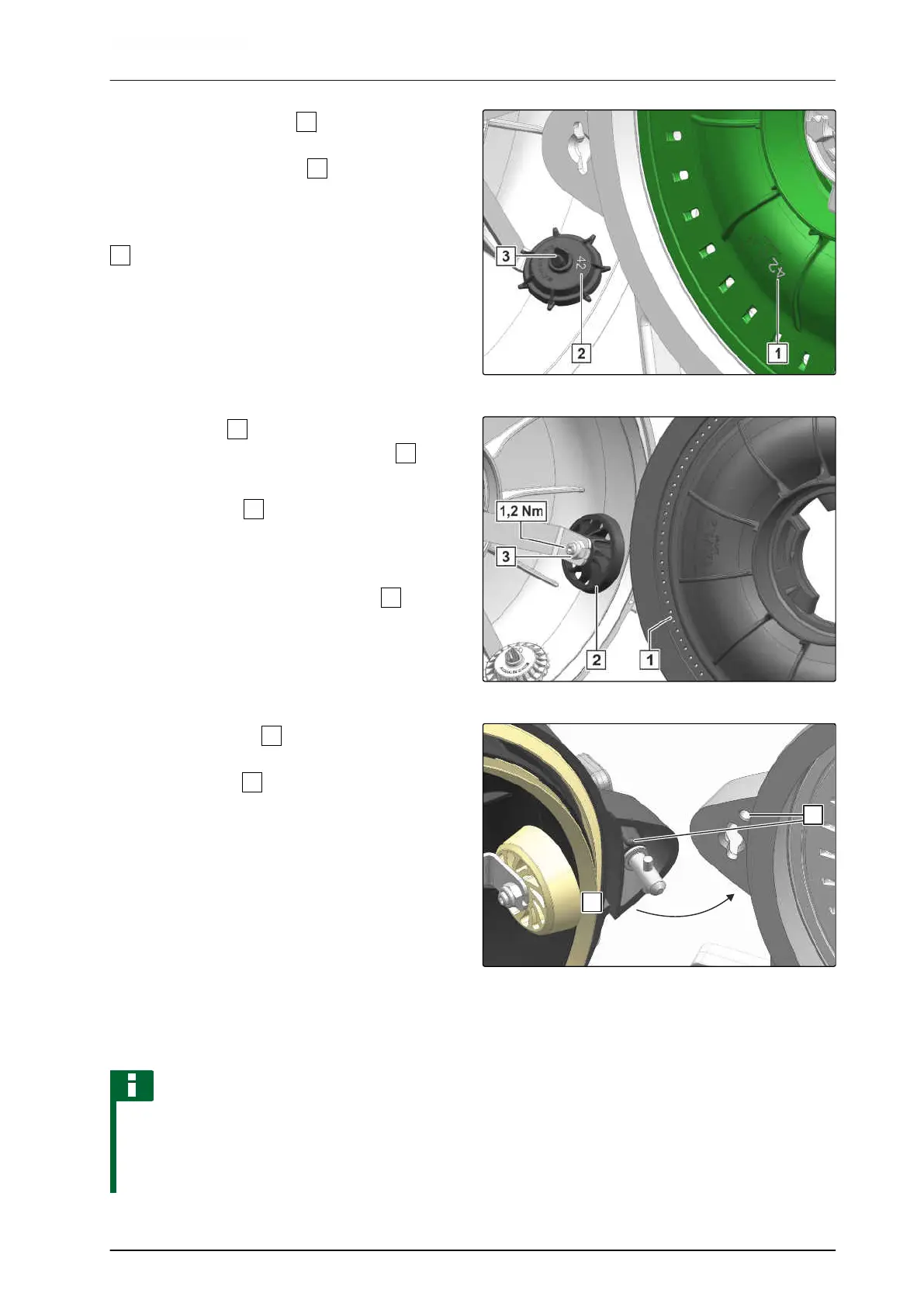

18. Press the ejector holder
together.
19. Pull off the ejection wheel
.
The number on the ejection wheel must be the
same as the number of holes on the singling disc
. Deviating from this, the singling disc for squash
requires an ejection wheel for the singling disc with 42
holes.
20. Install the desired ejection wheel.
CMS-I-00002072
For singling discs
with 1.0 mm, 1.3 mm and
1.6 mm holes, a narrow hole covering roller
is
required.
21. Remove the nut
.
22. Remove the wide hole covering roller.
23. Install the narrow hole covering roller
.
24. Put on the nut.
CMS-I-00003868
25. Align the guide pin
.
26. Close the cover
.
27. Close the locks.
CMS-I-00001913
6.4.11.2 Adjusting the sliding shutter
NOTE
The adjustment of the sliding shutter must be
adapted to the respective operating conditions.
The optimum adjustment can only be determined
during field operation.
CMS-T-00001901-D.1
6 | Preparing the machine
Preparing the implement for operation
MG6660-EN-II | D.1 | 27.09.2021
95
