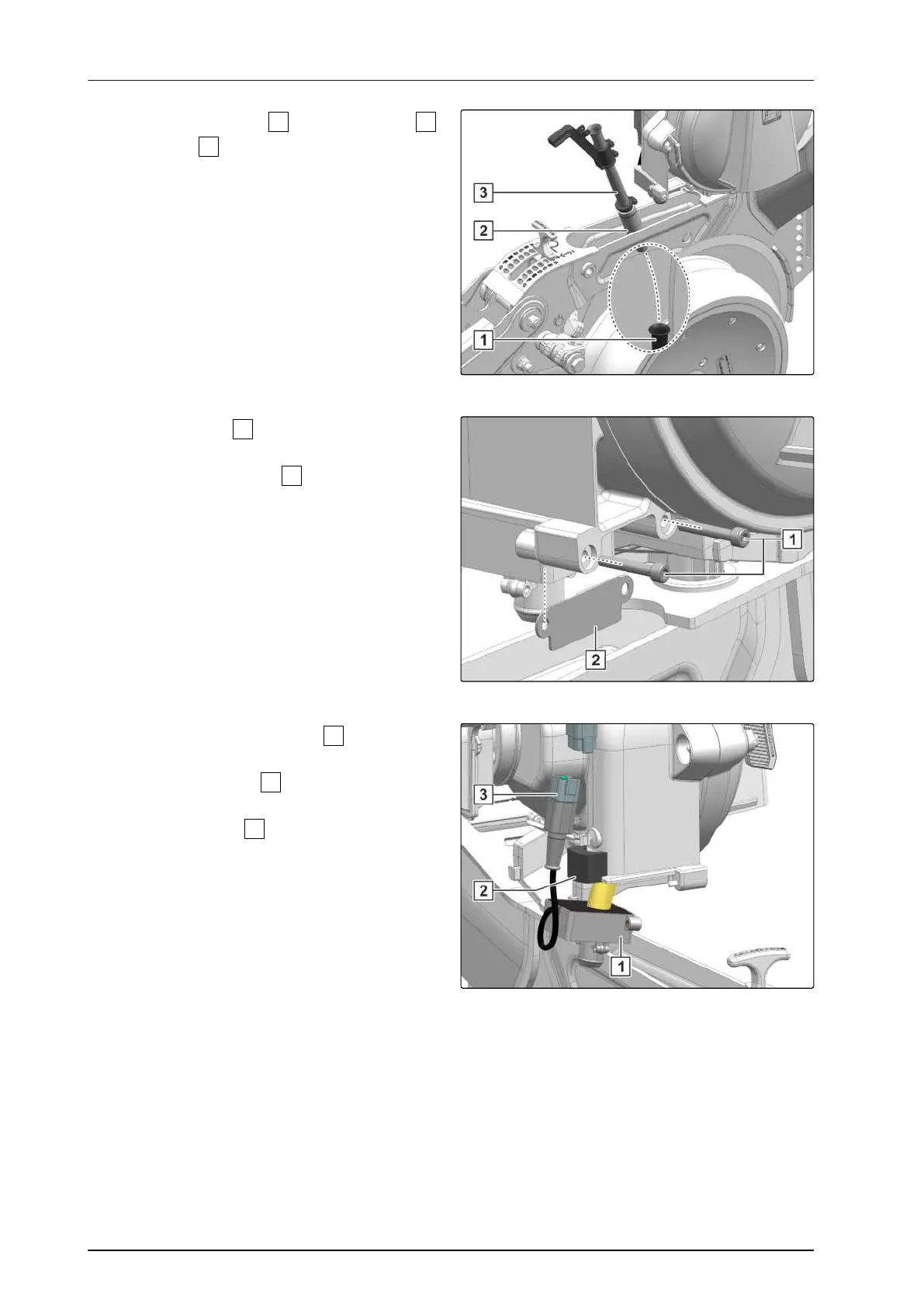

11. Press the shot channel
3
against the gasket
2
in the funnel
1
.
12. Swivel the shot channel away from the opto-
sensor and pull it up.
CMS-I-00003815
13. Remove the bolts
1
.
14. Remove the spacer plate
2
.
CMS-I-00003816
15. Disconnect the plug connection
3
.
16. Move the opto-sensor
1
down.
17. Remove the gasket
2
.
CMS-I-00003817
