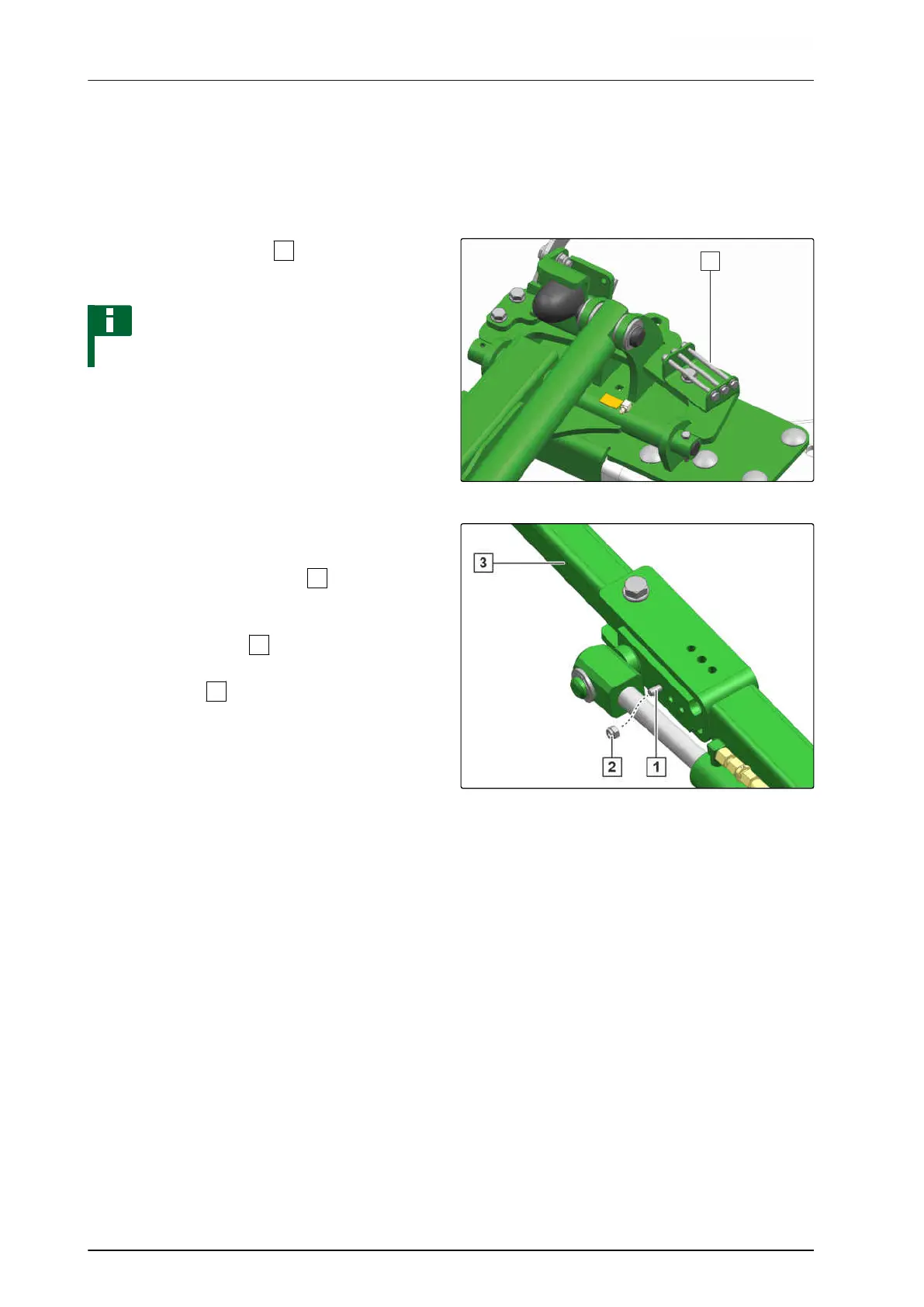

9.4.1 The track marker collision protection is triggered.
The track marker has encountered a solid obstacle. The shear bolt is torn and the track
marker folded to the rear.
1. Remove the spare bolts
from the track marker
bracket.
NOTE
Only use original bolts as a replacement.
CMS-I-00002081
2. Remove the damaged bolt.
3. Fold the track marker section
into working
position.
4. Insert the spare bolt
.
5. Install the nut
and tighten it.
CMS-I-00004385
