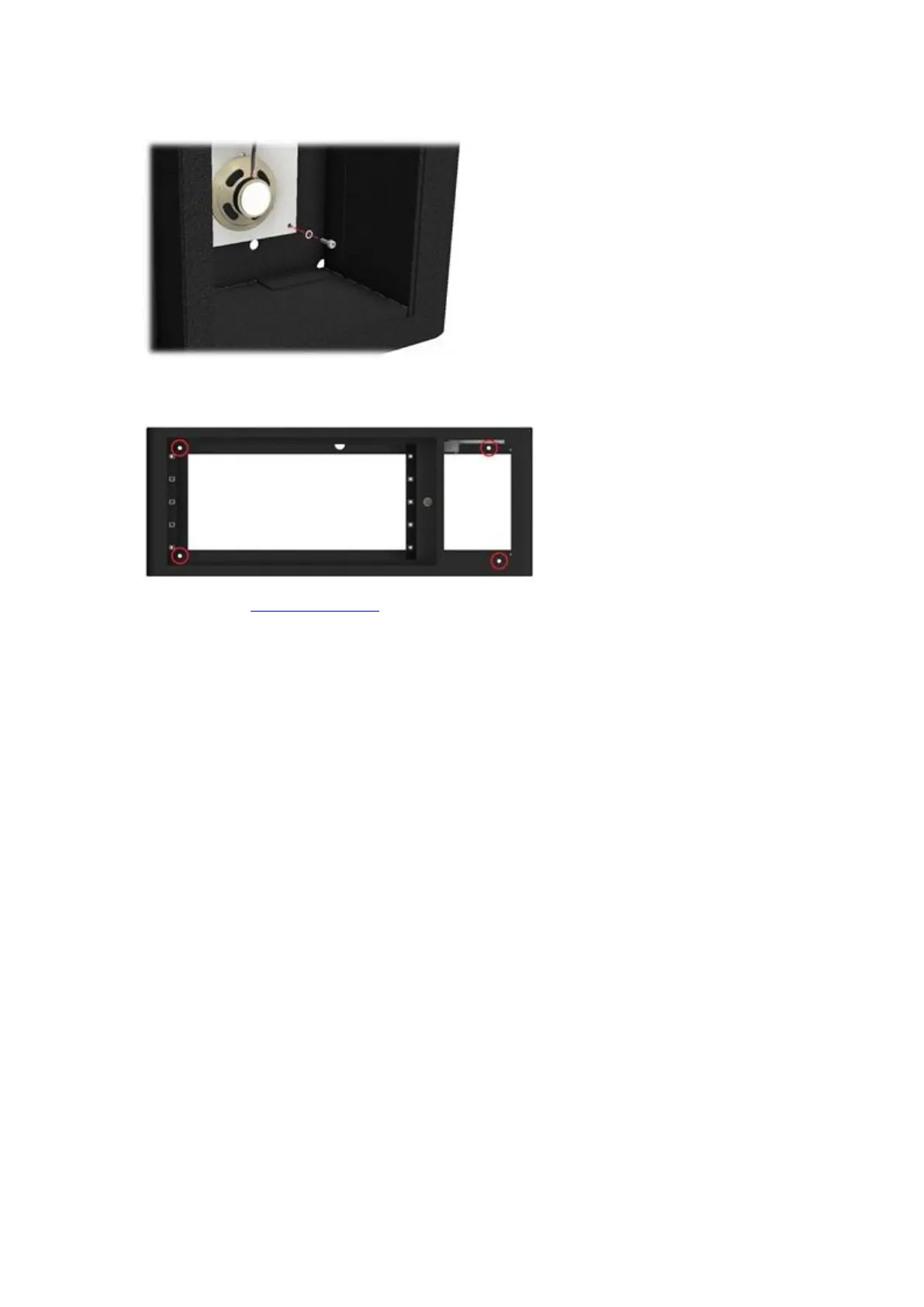

9. Using an Allen Key remove the 4 screws to remove the 16bit Control PCB Plate or the 8bit Control PCB
(depending on your system type).
10. The above preparation will have now revealed the 4 fixing holes that can be used to fix the system to a
suitable wall with suitable fixings.
11. Now refer to the M-Series Installation section.
