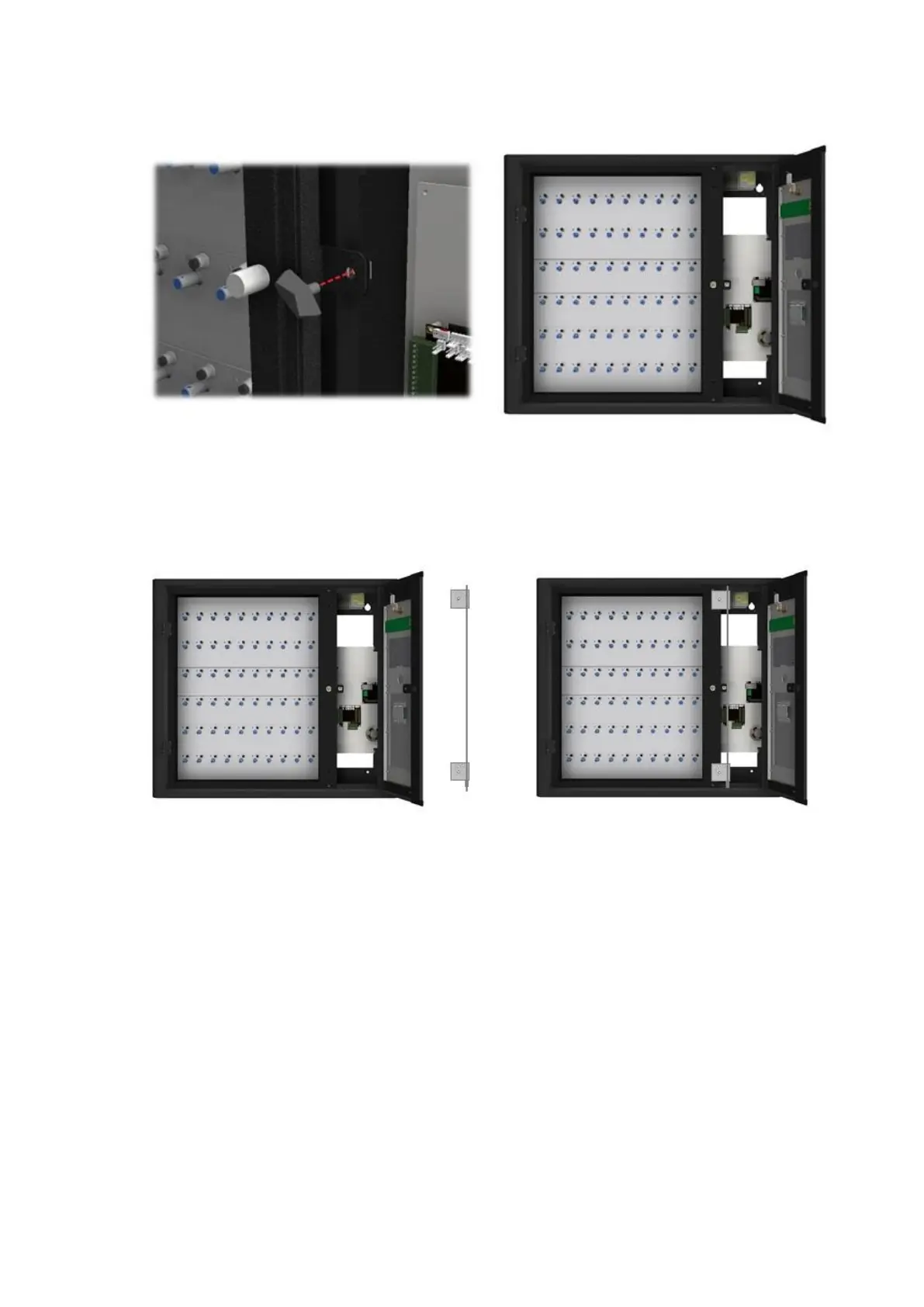

4. Undo the plastic Wing Bolt then close and lock the Control Panel. You will now be able to swing open the
Control Panel Door.
To further open the Receptor Frame...
5. Fit the Receptor Frame Hinge into the locating slots at the top and bottom of the cabinet by inserting the top
first and then the bottom.
6. Using a 2.5mm Allen Key, remove the bolts holding the receptor frame in place.
