Assa Abloy TRAKA32

To Next Page

To Previous Page

V3.5 14/08/19

UD0089

Page 46

This Document is uncontrolled unless over stamped "CONTROLLED DOCUMENT"

7. Carefully slide the frame to the right aligning the holes in the Receptor Frame Hinge with those in the frame

itself.

8. Fit two plastic Wing Bolts attaching the Receptor Frame Hinge to the Receptor Frame.

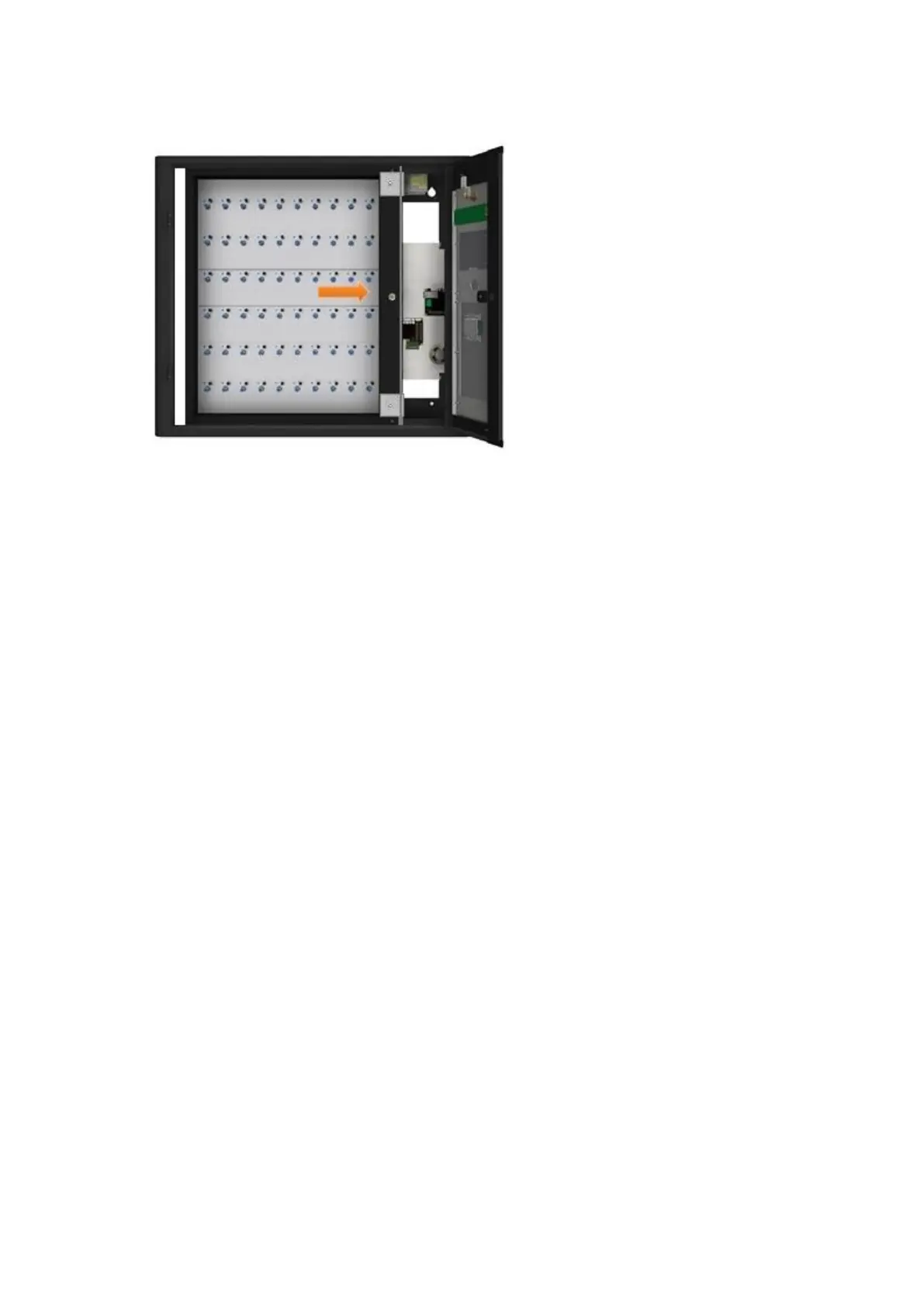

9. Slowly open the Receptor Frame.
