36 Chapter 3 Aircraft
5 Rear Landing Gear
Used to support the aircraft to avoid damage to the bottom of
the fuselage. (with built-in image transmission antenna)
6
Forward Visual
Sensing System
Used to sense the obstacles ahead and avoid the aircraft from
colliding with them.
7 Gimbal Camera
Integrates multiple sensors for stable shooting or
measurements during flight.
8
Front Support
Legs
Used to support the aircraft to avoid damage to the bottom of
the fuselage.

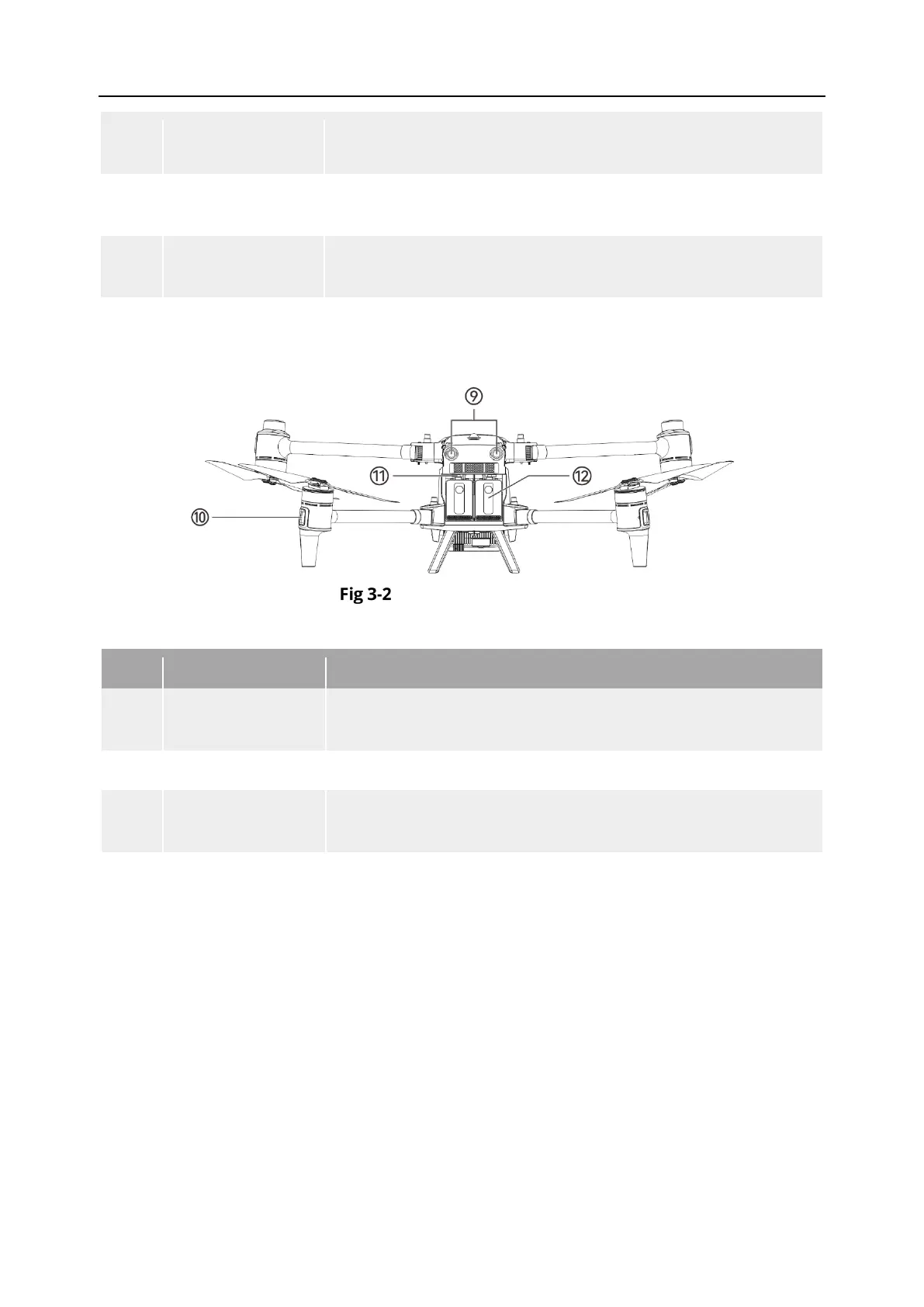

Aircraft Rear View
Table 3-2 Aircraft Rear View Details
No.
Name
Description
9
Rear Visual
Sensing System
Used to sense the obstacles in the rear and avoid the aircraft
from colliding with them.
10
Rear Arm Light
Used to display the current flight status of the aircraft.
11
Battery Unlock
Lever
Move the battery unlock levers outward to unlock the battery
and take out the smart batteries from the compartment.
12
Smart Battery
Used to provide energy for aircraft operation.
