The fluidics drawer holds the sheath and waste reservoirs. Both reservoirs have
level sensors that indicate fluid levels via BD CellQuest™ Pro software.

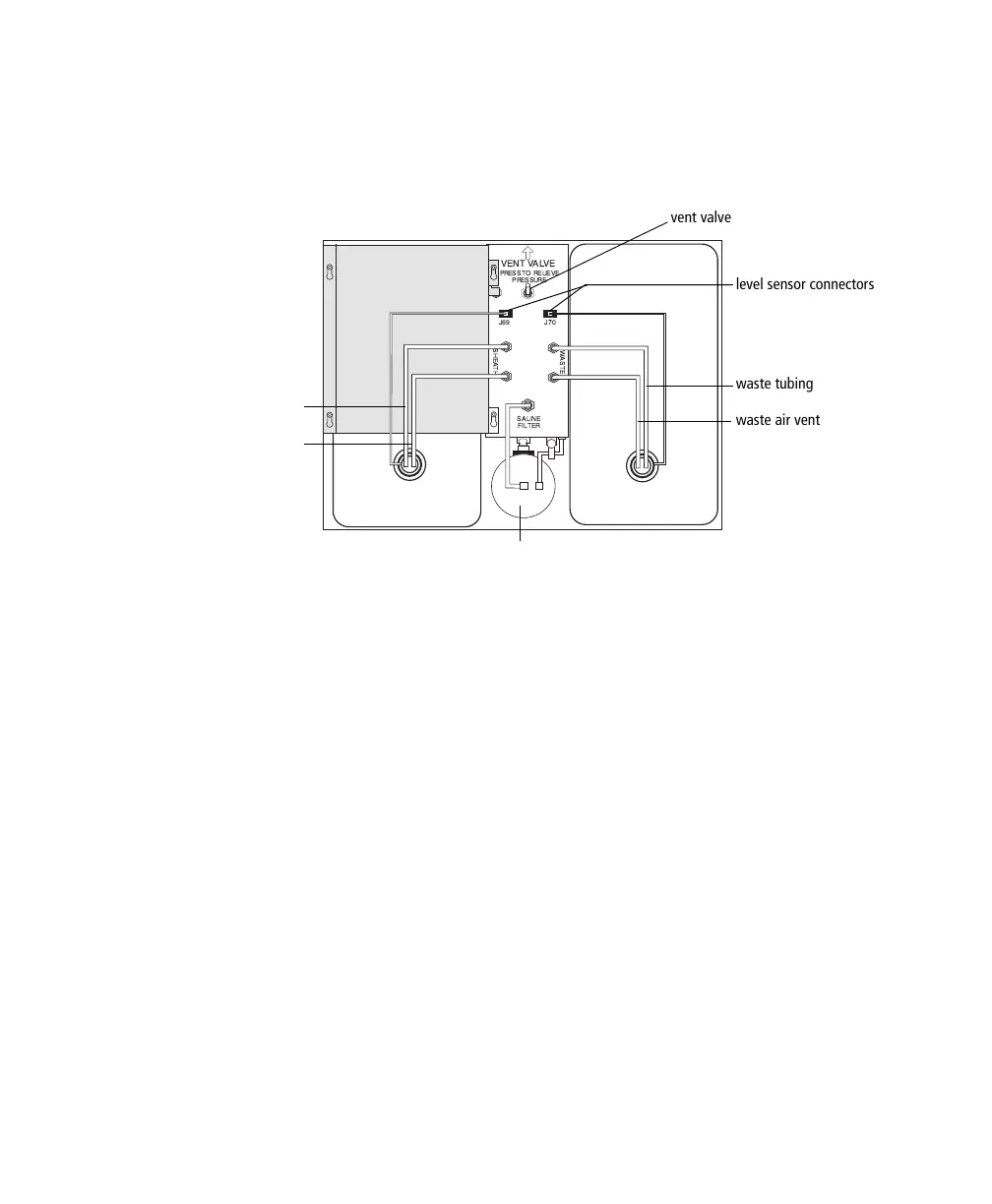

Figure 1-5 Fluidics Drawer
• The 4-L sheath reservoir is secured by a metal bracket, which prevents the
reservoir from expanding while under pressure. It holds enough fluid for
approximately 3 hours of operation. Fluid is filtered through the sheath
filter before it reaches the flow cell.
• The 4-L waste reservoir collects fluid waste from the flow cell.
vent valve
level sensor connectors
waste tubing
waste air vent tubing
waste tanksheath tank
sheath filter
sheath tubing
air supply tubing
metal bracket
