136 S850 Operation & Maintenance Manual
ELECTRICAL SYSTEM (CONT’D)
Fuse And Relay Location / Identification (Cont’d)
Later Models

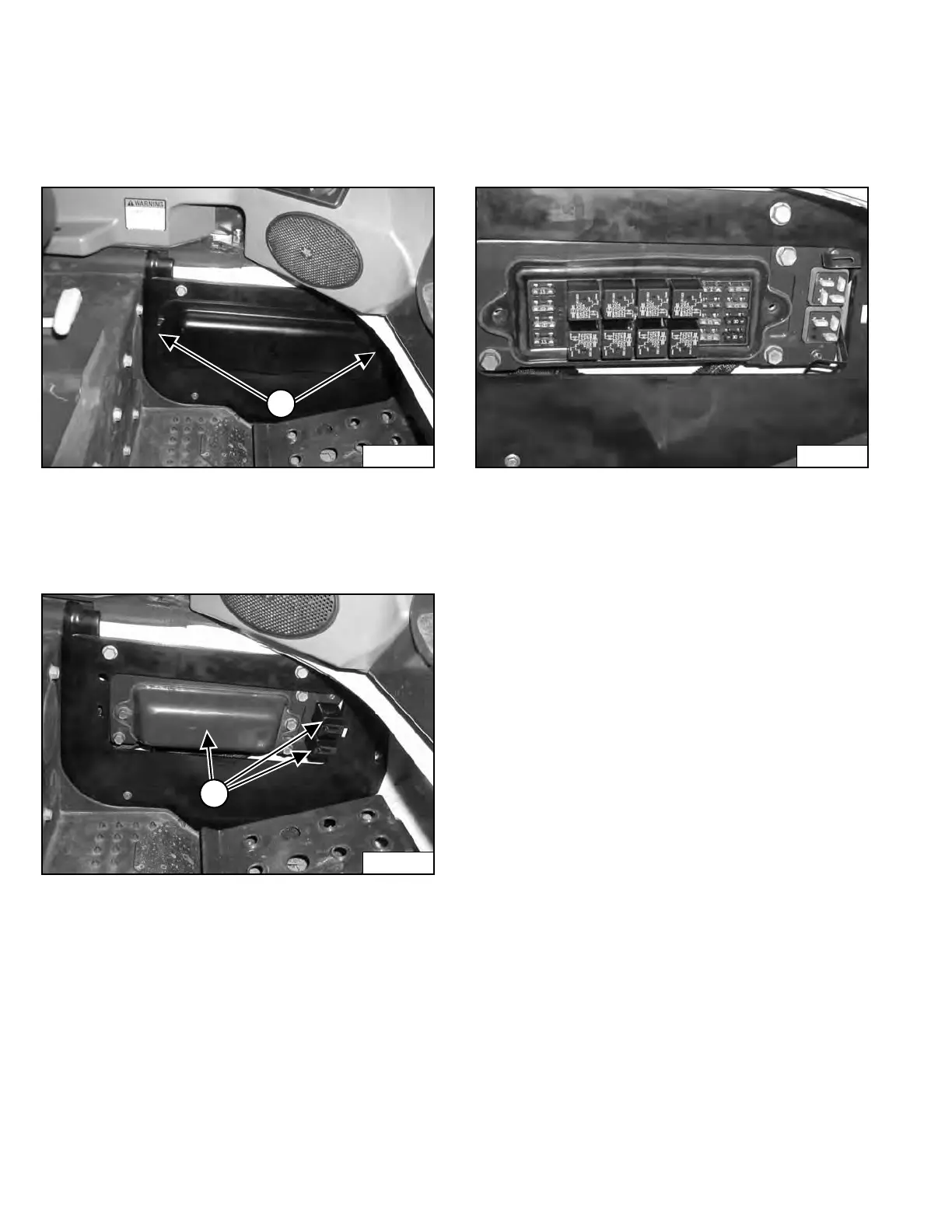

Figure 218
The fuse / relay panels are located behind an access
p
anel near the left foot pedal / footrest. Pull the panel at
each end (Item 1) [Figure 218] to remove.
Figure 219
The electrical system is protected from
overload by fuses
and relays located under three fuse panel covers (Item 1)
[Figure 219].
Figure 220
Remove the covers to check or replace the fuses
[Figure 220].
A decal is located inside the access panel to show
lo
cation and amperage ratings.
Line up the clips on the back of the access panel with the
slot
s provided and push the panel into place when
finished [Figure 218]. A locating pin prevents the panel
from being installed upside down.
A table is provided with details on amperage ratings and
circuit
s affected by each fuse and relay. (See Figure 221
on Page 137.)
