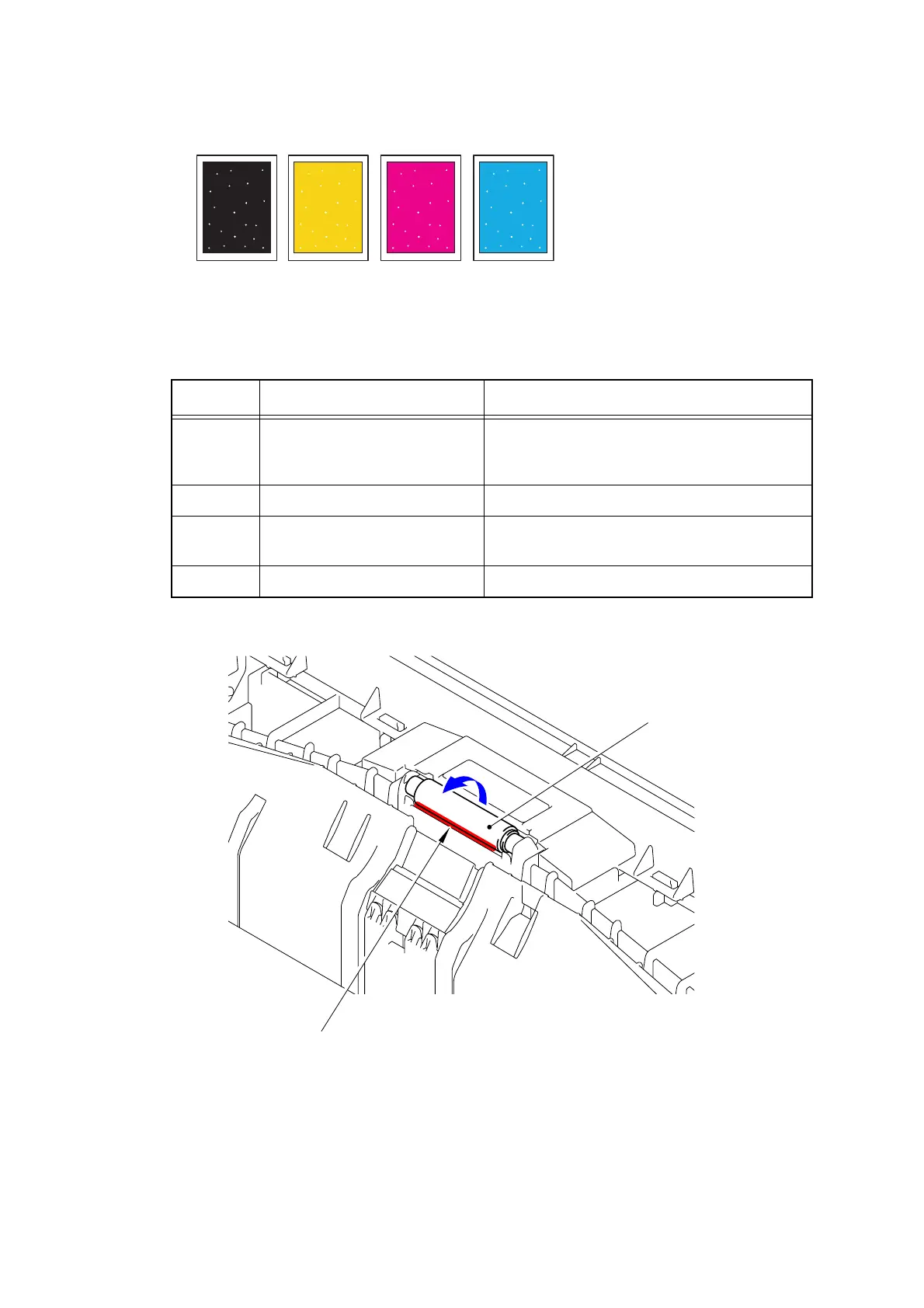

■ White spots on one color image
<User Check>
- Check if the main fan is not blocked.
- Refer to the User’s guide and remove the dirt on the exposure drum using a cotton swab.
- Replace the drum unit or toner cartridge with a new one.
Fig. 2-14
Step Cause Remedy
1 Dirt in the paper dust cleaning
roller
Referring to the figure below, remove paper
dust attached on the paper dust cleaning
roller.
2 Scratch and dirt on fuser unit Replace the fuser unit.
3 High-voltage power supply
PCB failure
Replace the high-voltage power supply PCB
ASSY.
4 Main PCB failure Replace the main PCB ASSY.
Paper dust
Paper dust cleaning roller
