4.3 Image Defect Troubleshooting

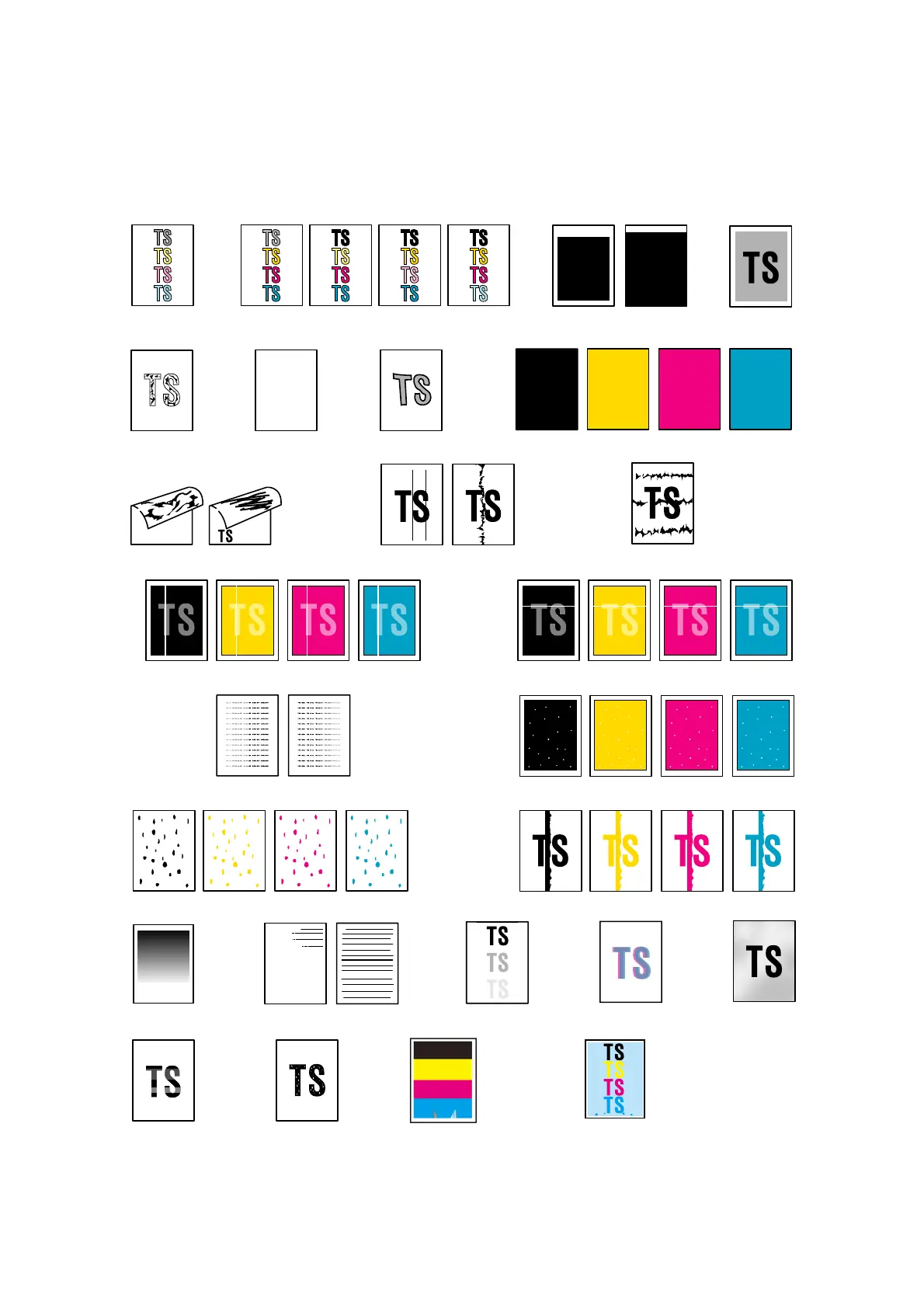

4.3.1 Image defect examples
Fig. 2-12
(2-100)
(2-101)
Spots at the rear edge of paper
Light on the whole
page (2-89)
One color is light (2-89) Faulty registration (2-90) Dark (2-90)
Poor fixing
Completely blank
(2-91)
Image distortion
(2-92)
All one color (2-92)
Dirt on back side of paper (2-93) Vertical streaks (2-94) Horizontal stripes (2-95)
Light vertical steaks and bands on one color image (2-95) White horizontal stripes on one color image (2-96)
Faint print (2-96) White spots on one color image (2-97)
One color spots or dirt (2-98) One color band (2-99)
Downward fogging
of solid color (2-99)
Horizontal lines (2-99)
Ghost (2-100) Color
misregistration (2-100)
Fogging
Unstable color density Hollow print Print crease
(2-102) (2-102)(2-101)
(2-91)
