Brother MFC-9340CDW - ADF Cover;Document Detection Sensor PCB ASSY

3-70
Confidential
8.26 ADF Cover/Document Detection Sensor PCB ASSY

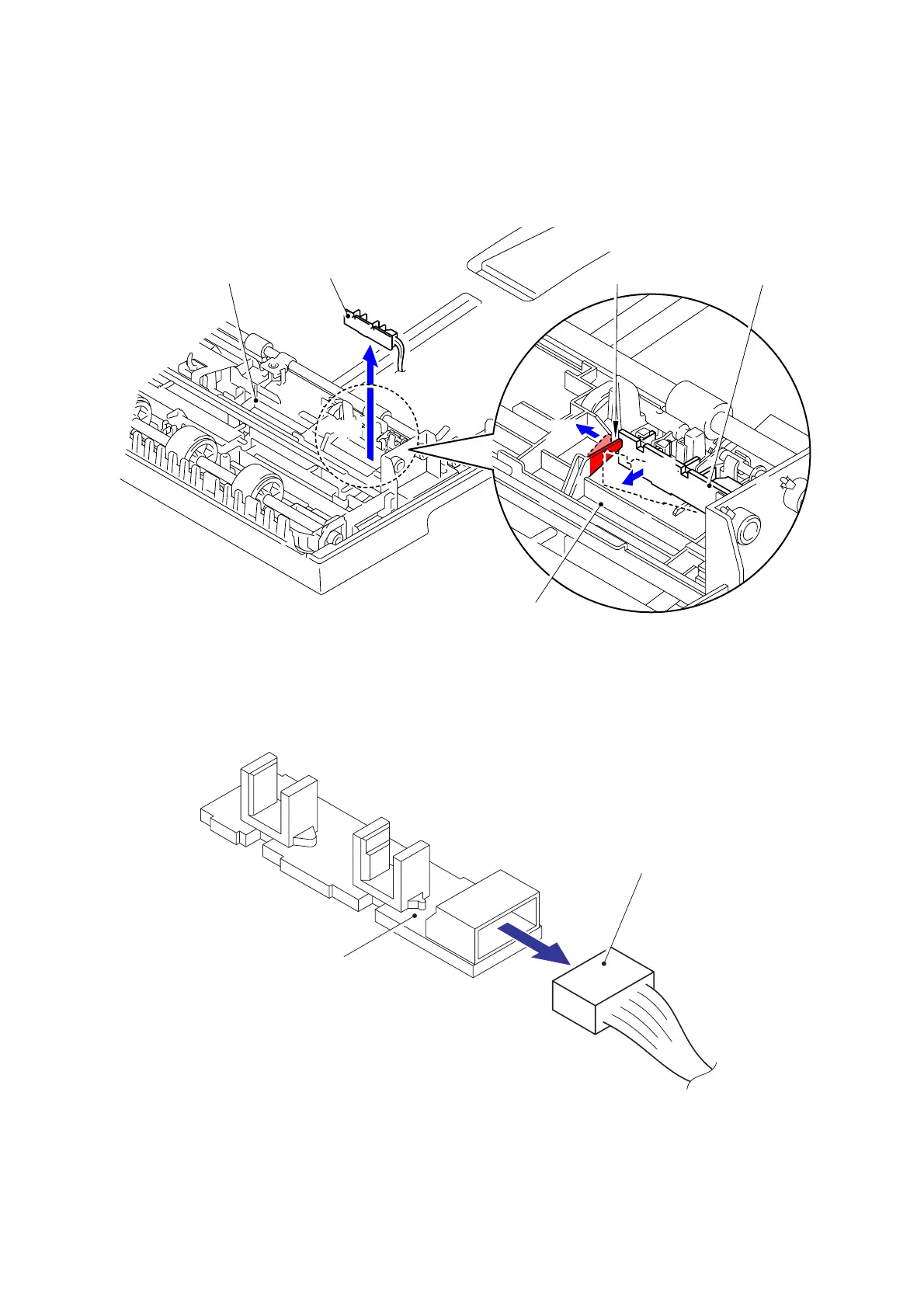

(1) Push the rib in the arrow direction and detach the ADF cover/document detection sensor
PCB ASSY from the Lower ADF chute.
Fig. 3-78
(2) Disconnect the Connector from the ADF cover/document detection sensor PCB ASSY.
Fig. 3-79
Rib
Lower ADF chute
Lower ADF chute
1a
1b
1c
ADF cover/document
detection sensor PCB ASSY
ADF cover/document
detection sensor PCB ASSY
Connector
ADF cover/document detection
sensor PCB ASSY
