Brother MFC-9340CDW - Fuser Unit

3-33
Confidential
8.5 Fuser Unit

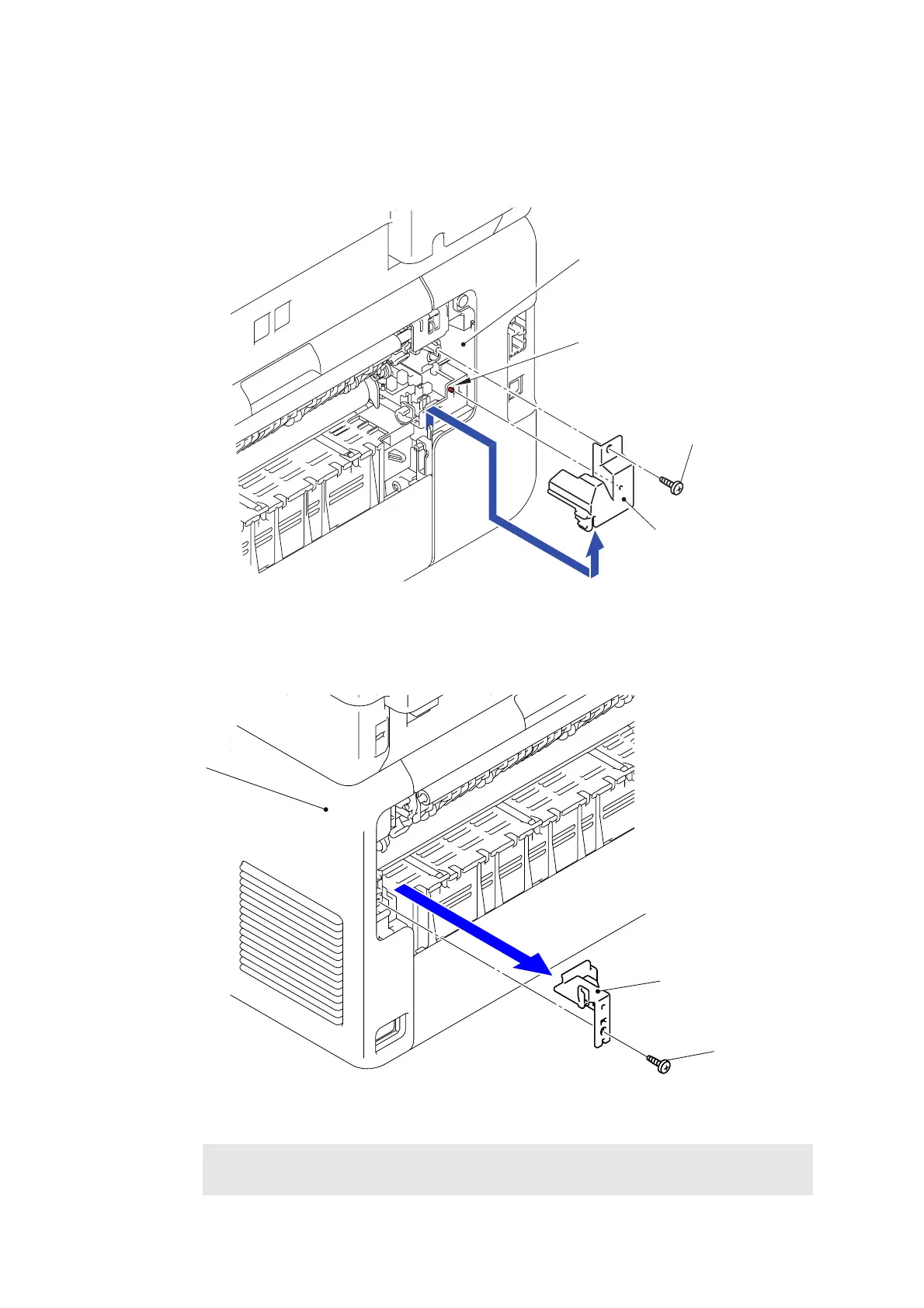

(1) Remove the Taptite bind B M3x10 screw from the Fuser cover L.
(2) Remove the Pin to remove the Fuser cover L from the Main body.
Fig. 3-9
(3) Remove the Taptite bind B M3x10 screw to remove the Fuser cover R from the Main body.
Fig. 3-10
Assembling Note:
After assembling the Fuser cover R, make sure that the Heater harness is not visible.
Fuser cover L
Pin
Main body
<Back side>
Taptite bind B M3x10
Taptite bind B
Fuser cover R
Main body
<Back side>
M3x10
