Brother MFC-9340CDW - Develop Release Clutch

3-125
Confidential
(4) Disconnect the wiring of the Develop release clutch harness.
(5) Remove the Develop release clutch from the Side frame L ASSY.

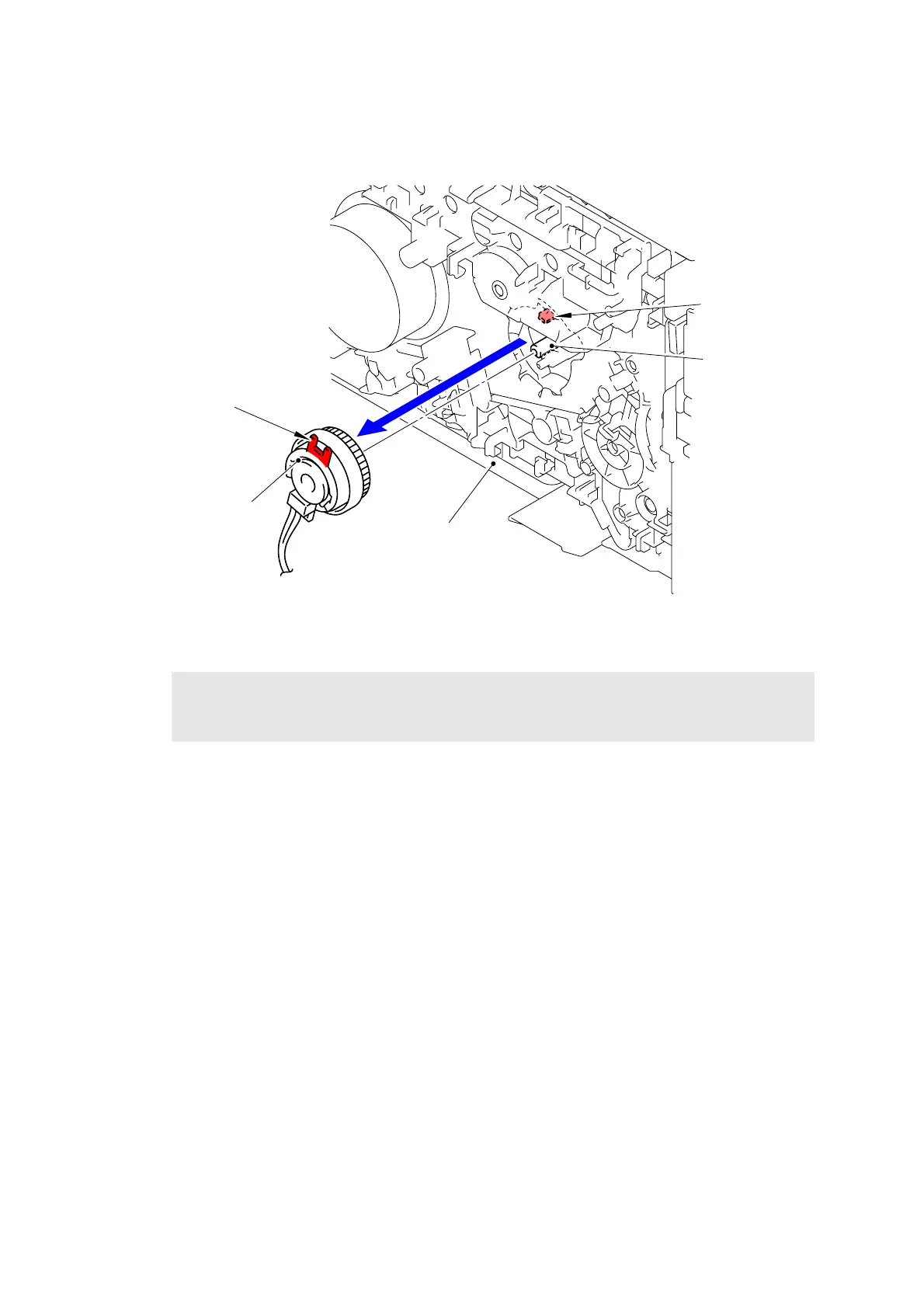

Fig. 3-176
Assembling Note:
When assembling the Develop release clutch, attach the Rotation preventing hook to the
Rib of the Main body.
<Left side>
Develop release clutch
Side frame L ASSY
Shaft gear Z23
Rib
Rotation preventing
hook
