Brother MFC-9340CDW - Main Fan; Develop Release Sensor PCB ASSY

3-156
Confidential

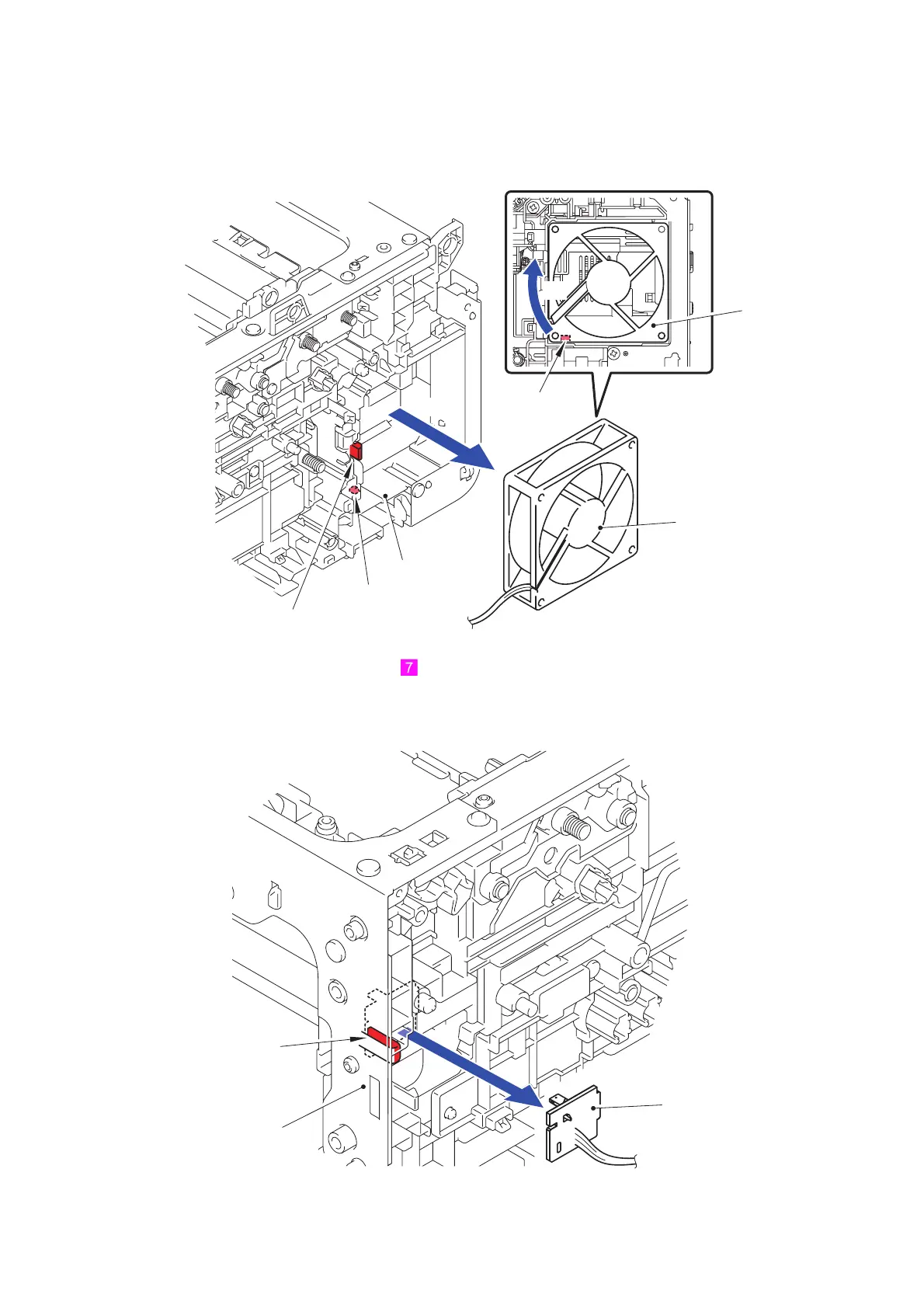

8.67 Main Fan
(1) As the two Hooks being removed, remove the Main fan from the Side frame R while
rotating the fan in the direction of the arrow 1a.
Fig. 3-226
Harness routing: Refer to " Main Fan"
8.68 Develop Release Sensor PCB ASSY
(1) Release the Hook to remove the Develop release sensor PCB ASSY from the Side frame R.
Fig. 3-227
Hook
Side frame R
Main fan
Main fan
1b
1a
Hook
Hook
<Right side>
Hook
Side frame R
Develop release sensor
PCB ASSY
