Brother MFC-9340CDW - Back Cover ASSY

3-30
Confidential

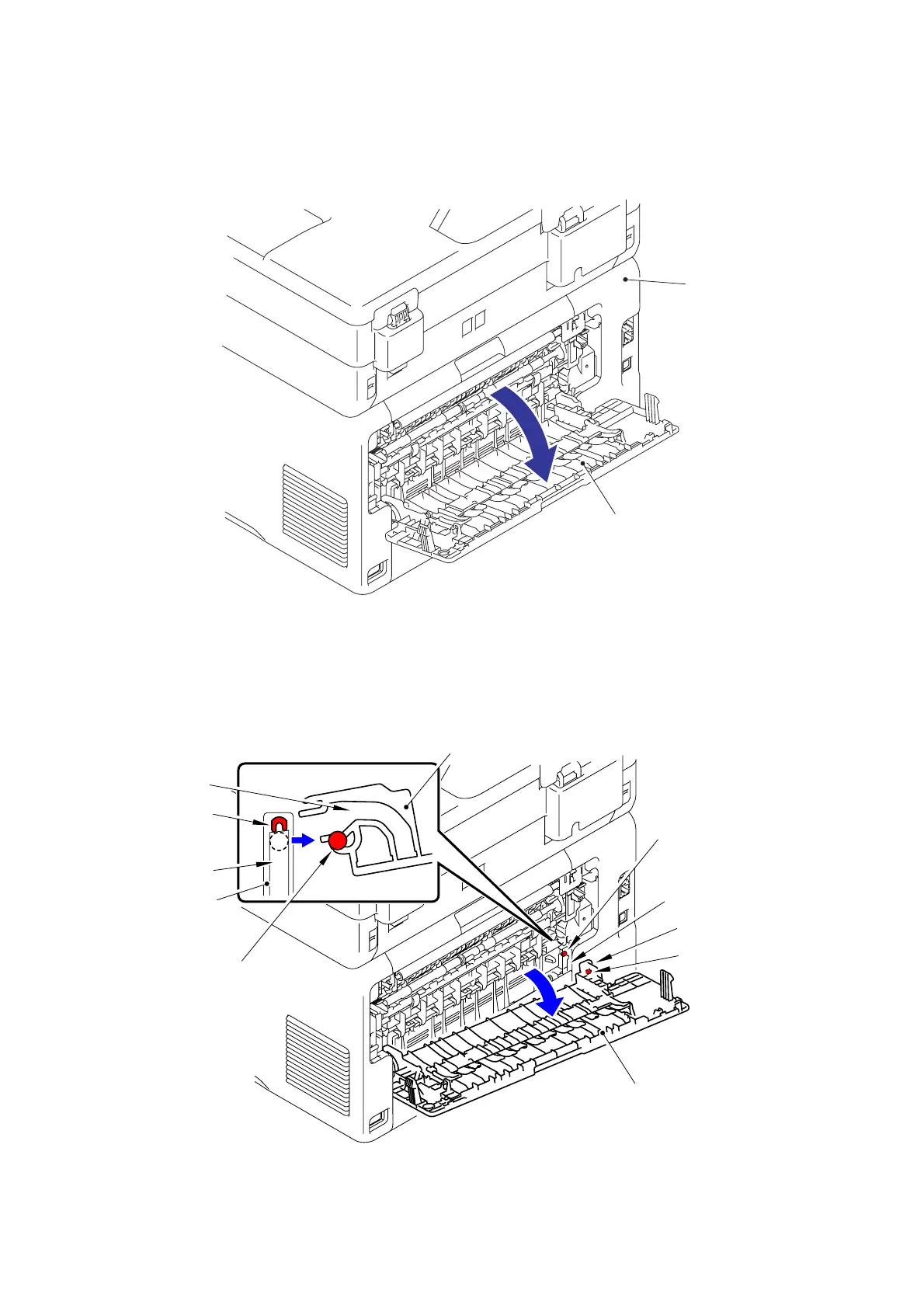

8.3 Back Cover ASSY
(1) Open the Back cover ASSY.
Fig. 3-4
(2) Remove the Boss and Bush of the Back cover ASSY from the Boss and Bush on the left
side of the Main body.
Fig. 3-5
<Back side>
Main body
Back cover ASSY
Main body
Back cover ASSY
Boss
Boss
Bush
Bush
Back cover ASSY
Boss
Boss
Bush
Bush
<Back side>
