8.10 Support Flap

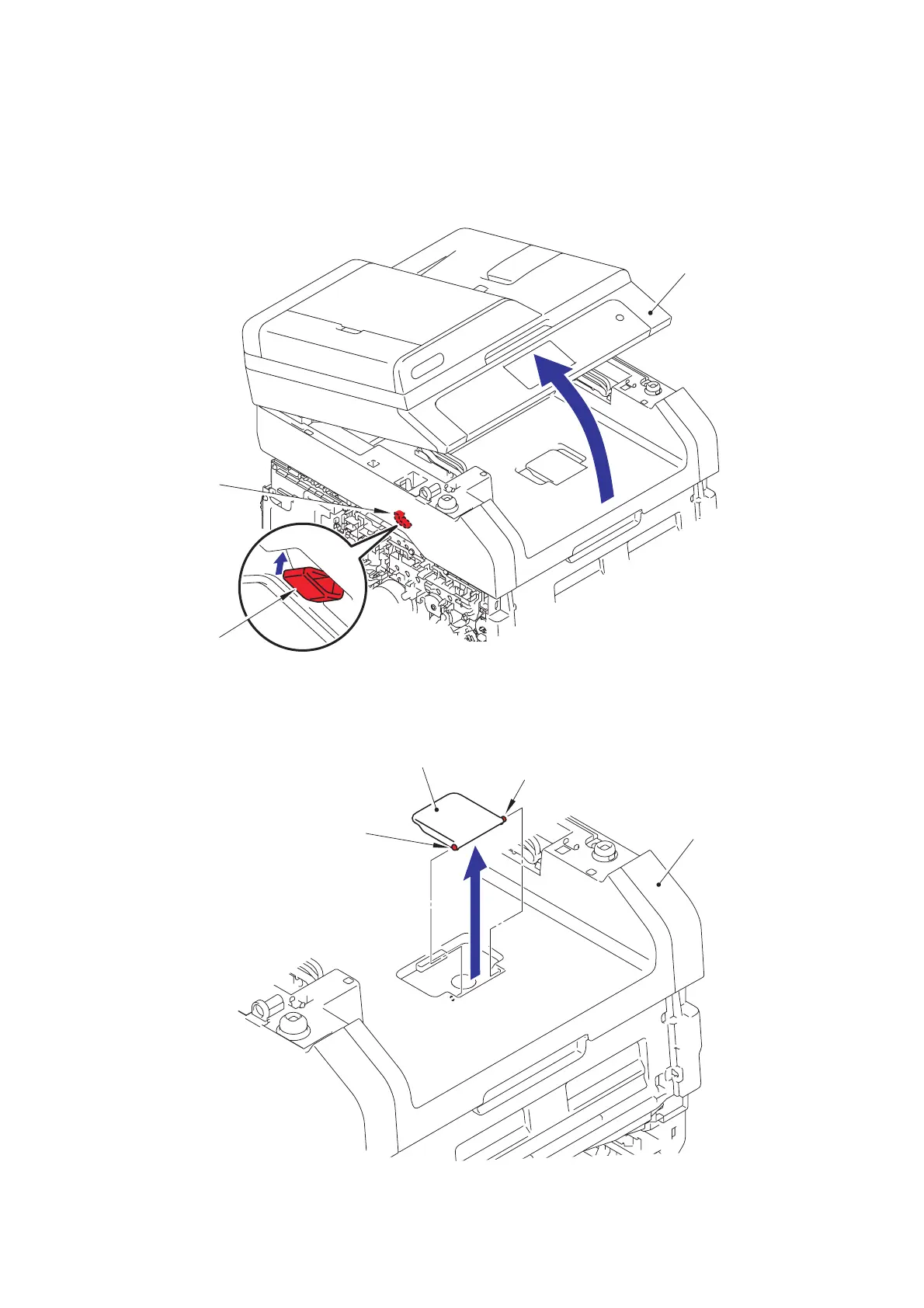

(1) Close the Joint cover ASSY.
(2) While pushing up the Lever, open the Document scanner unit.
Fig. 3-27
(3) Remove the two Pins to remove the Support flap from the Joint cover ASSY.
Fig. 3-28
Document scanner unit
2a
2b
Lever
Lever
<Front side>
Pin
Pin
Joint cover ASSY
Support flap
<Front side>
