Brother MFC-9340CDW - ADF Document Output Support Flap; ADF Document Support

3-54
Confidential

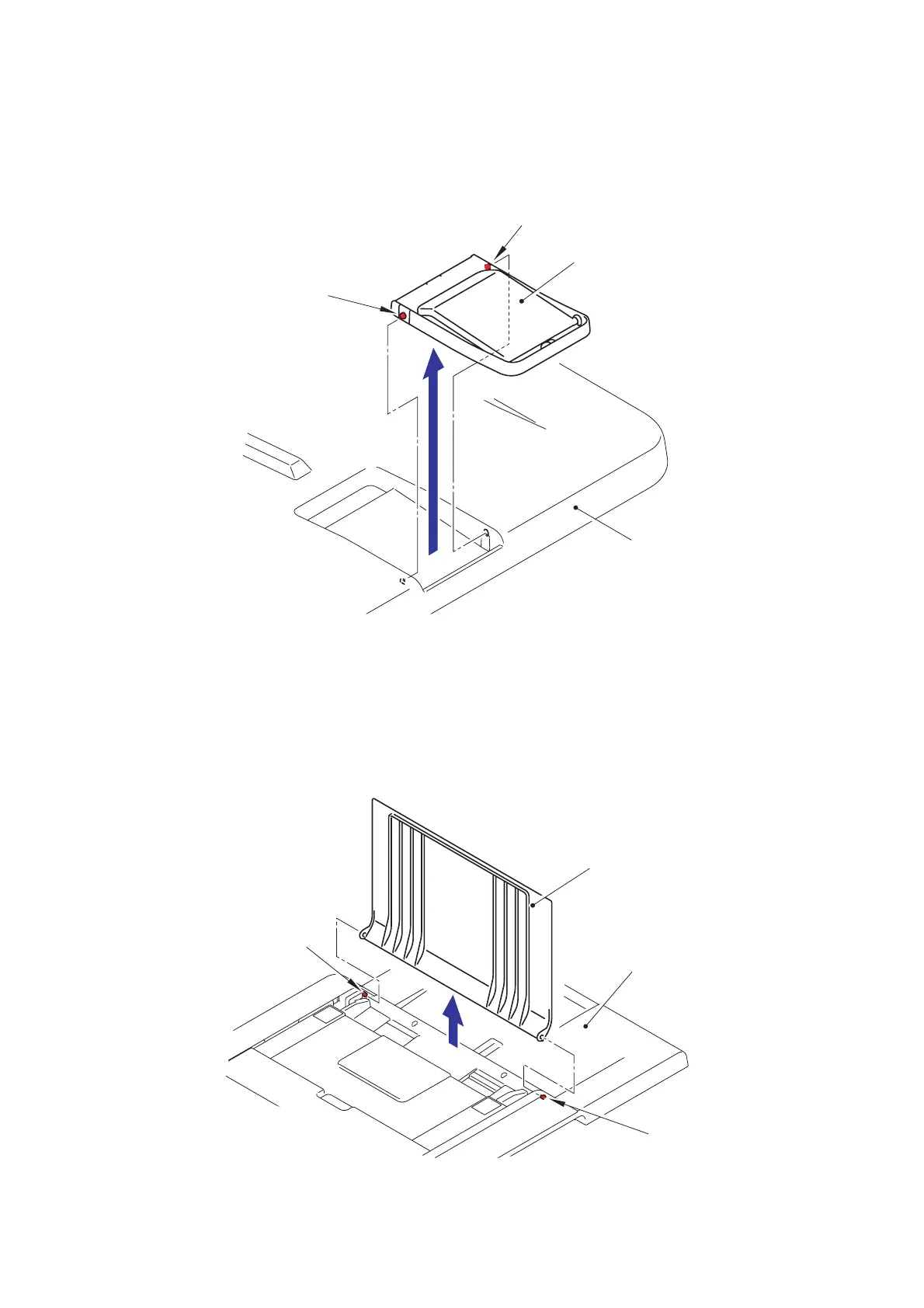

8.18 ADF Document Output Support Flap
(1) Return the ADF unit to the original position.
(2) Remove the two Pins to remove the ADF document output support flap from the ADF unit.
Fig. 3-48
8.19 ADF Document Support
(1) Open the ADF document support.
(2) Remove the two Pins to remove the ADF document support from the ADF unit.
Fig. 3-49
Pin
Pin
ADF unit
ADF document output support flap
ADF unit
Pin
Pin
ADF document support
