8.14 Hinge ASSY L/ADF Unit

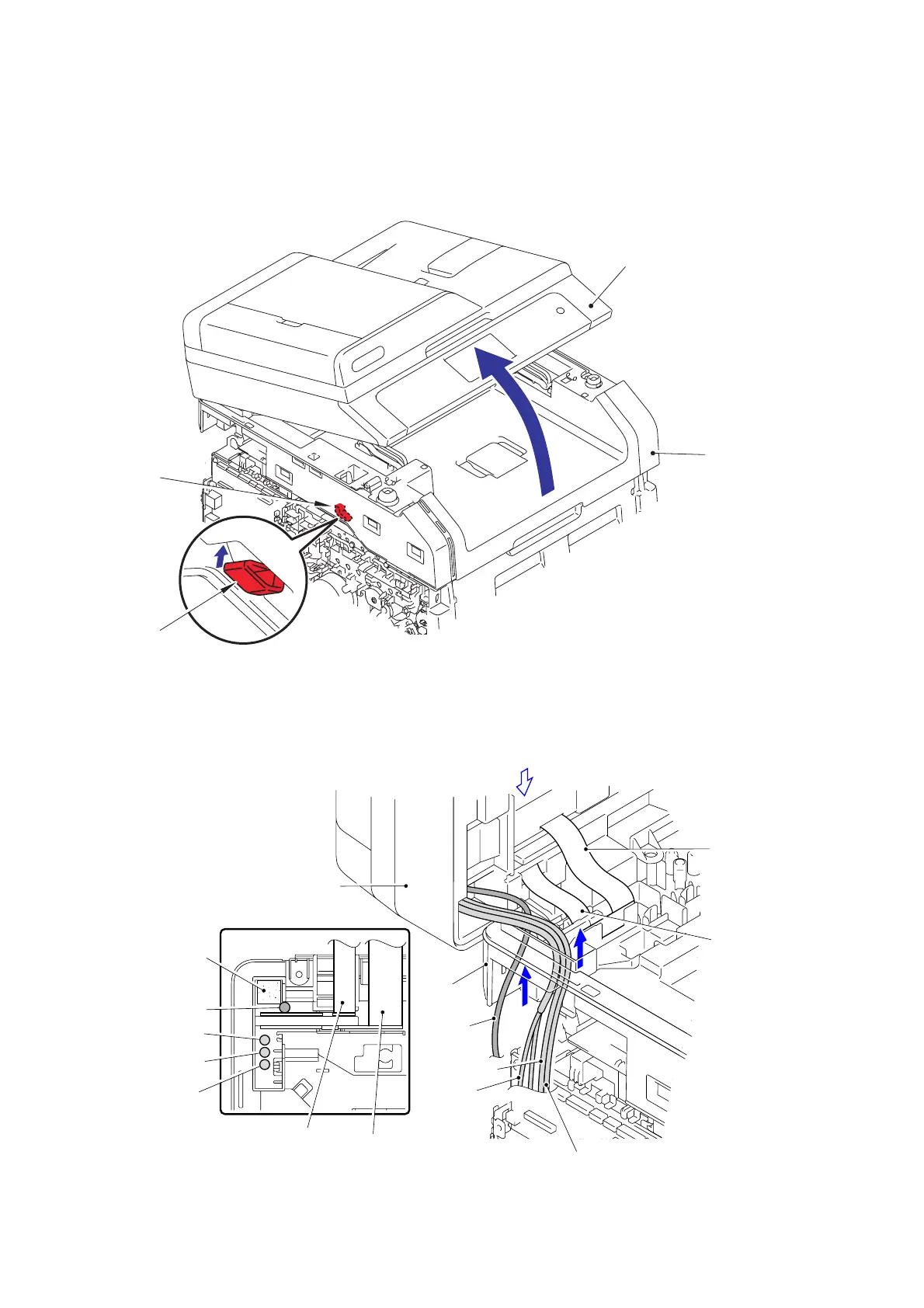

(1) Close the Joint cover ASSY.
(2) While pushing up the Lever, open the Document scanner unit.
Fig. 3-38
(3) Pull out the harness from the Joint cover ASSY.
(4) Pull out the First side CIS flat cable from the Joint cover ASSY.
(5) Pull out the Second side CIS flat cable from the Joint cover ASSY.
Fig. 3-39
Joint cover ASSY
Document scanner unit
Lever
Lever
2b
2a
<Front side>
Joint
ADF
Panel USB
Document scanner unit
First side CIS
Second side CIS
Document
Panel harness
flat cable
flat cable
cover
ASSY
harness
ADF harness
Document scanner unit harness
scanner unit
Panel harness
Panel USB
harness
First side CIS
Second side CIS
A view
<A view>
harness
harness
flat cable
flat cable
Sponge
