8.13 Flat Cable Holder Cover

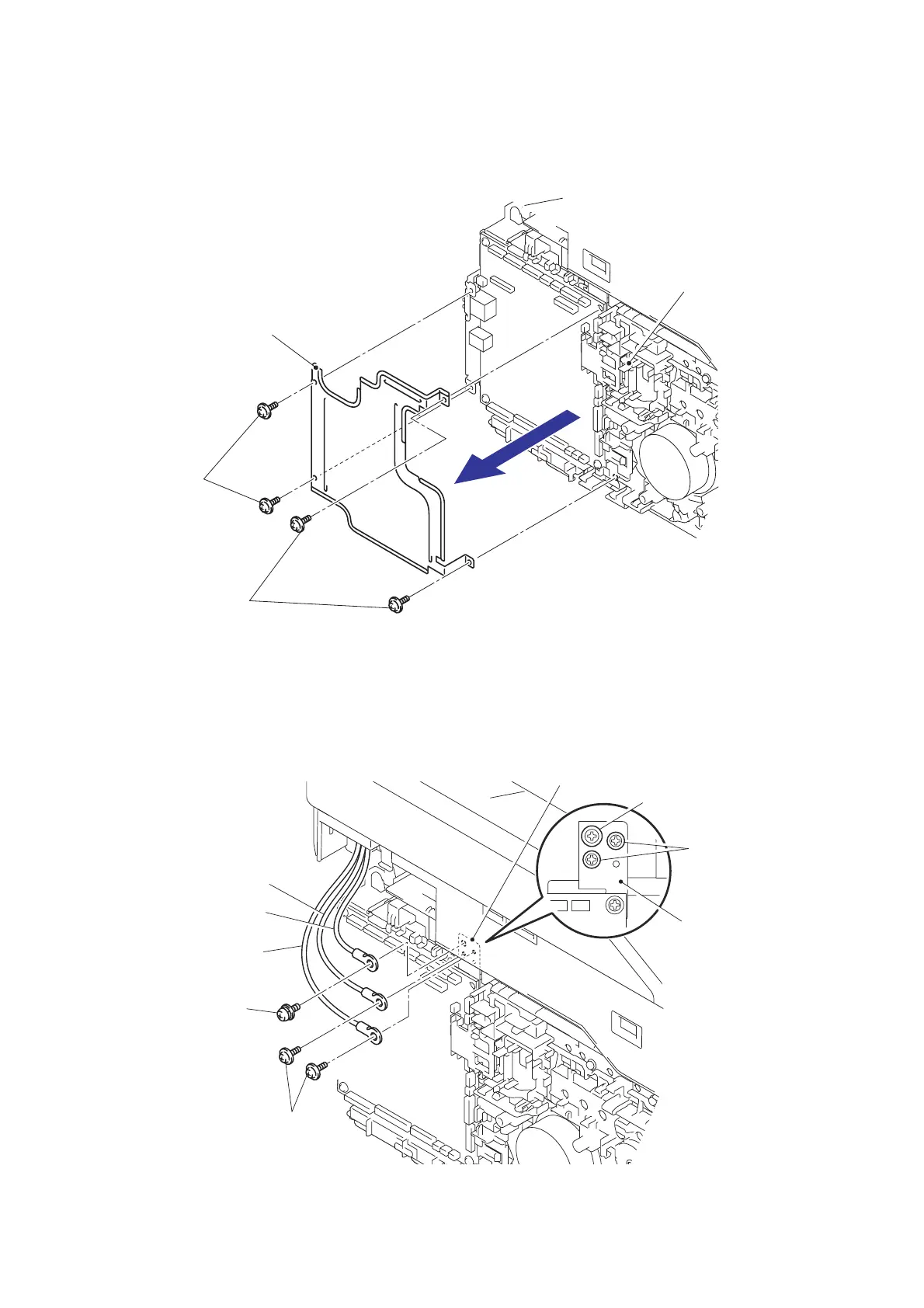

(1) Remove the four Taptite cup S M3x8 SR screws to remove the Main shield cover plate
from the Side frame L ASSY.
Fig. 3-32
(2) Remove the Screw pan (S/P washer) M3.5x6 screw to remove the Modem FG harness
from the Main body.
(3) Remove the Taptite cup S 3x8 SR screw to remove the ADF FG harness from the Main
body.
(4) Remove the Taptite cup S 3x8 SR screw to remove the Panel FG harness from the Main
body.
Fig. 3-33
Taptite cup S
Taptite cup S M3x8 SR
Side frame L ASSY
Main shield cover plate
<Left side>
M3x8 SR
Screw pan (S/P washer) M3.5x6
Taptite cup S 3x8 SR
Taptite cup S 3x8 SR
Main shield plate
M
a
i
n s
hi
e
ld
p
l
ate
ADF FG harness
Modem FG harness
Panel FG harness
Screw pan (S/P washer)
M3.5x6
