Brother MFC-9340CDW Service Manual

3-47
Confidential

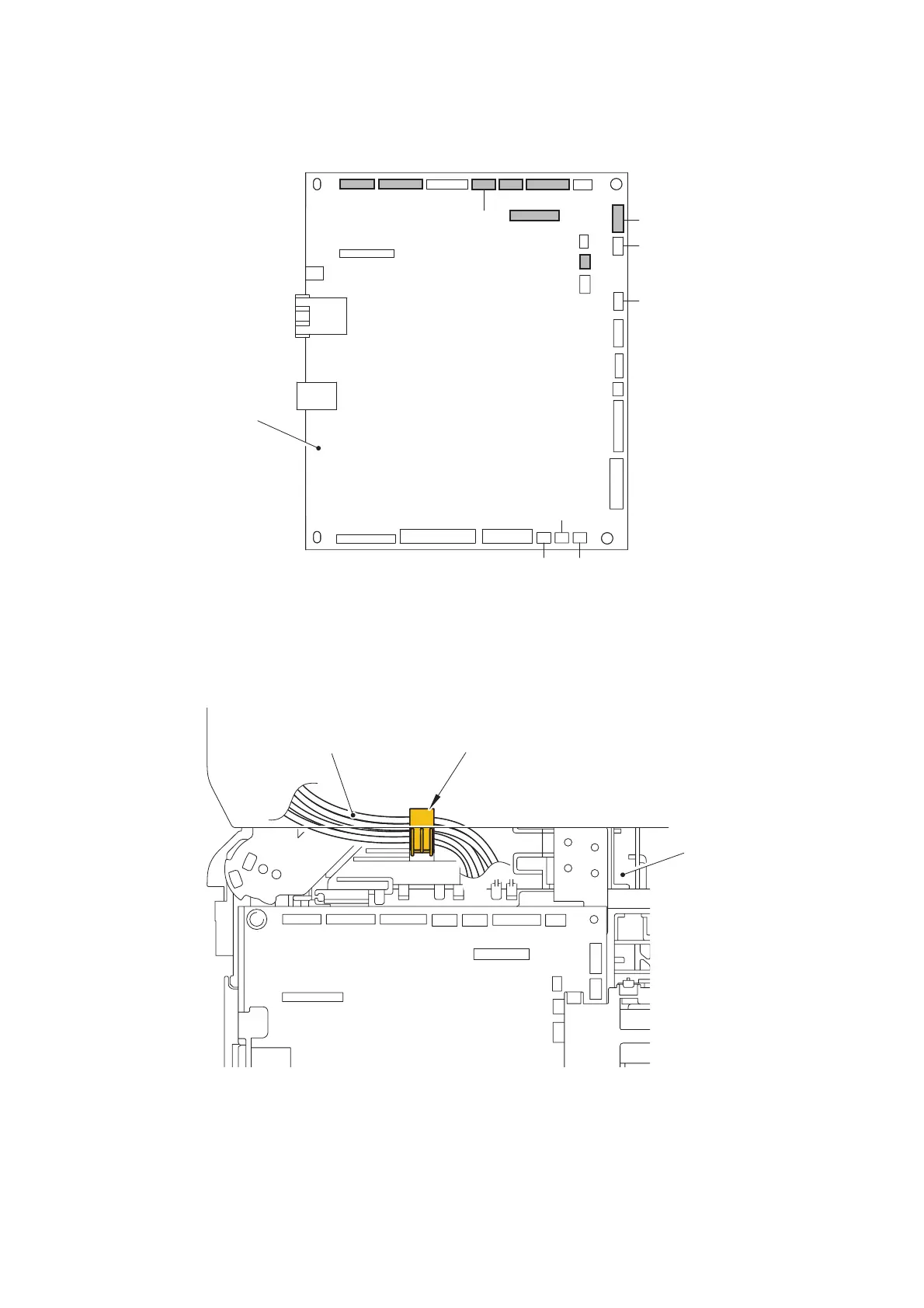

(5) Disconnect the six Connectors (CN8, CN23, CN24, CN25, CN26 and CN27) and two Flat
cables (CN29 and CN30) from the Main PCB ASSY.
Fig. 3-34
(6) Remove the all harnesses from the Hook.
Fig. 3-35
CN30
CN22
CN19
CN15
CN11
CN4
CN3 CN2
CN1 CN6
CN5
CN29 CN28 CN26 CN23
CN8
CN21
CN27
CN20
CN14
CN25
CN24
CN16
CN9
CN13
CN12
CN10
CN7
CN17
Main PCB ASSY
Hook
Harness
Side frame L ASSY
<Front side>

Brother MFC-9340CDW Specifications

Printing Specifications

print speed (black)	up to 23 ppm
print speed (color)	up to 23 ppm
print resolution	up to 600 x 2400 dpi
automatic duplex printing	Yes

Copying Specifications

copy speed (black)	up to 23 cpm
copy speed (color)	up to 23 cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11.7”
scan resolution (optical)	1200 x 2400 dpi
scan resolution (interpolated)	19200 x 19200 dpi

Fax Specifications

fax modem	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Memory and Interfaces

memory (standard/max)	192MB / 192MB
standard interfaces	Wireless 802.11b/g/n, Ethernet, Hi-Speed USB 2.0
usb direct interface	Yes

Supplies and Accessories

black toner cartridge yield	2, 500 pages
cyan toner cartridge yield (standard)	1, 400 pages
magenta toner cartridge yield (standard)	1, 400 pages
yellow toner cartridge yield (standard)	1, 400 pages
cyan toner cartridge yield (high capacity)	2, 200 pages
magenta toner cartridge yield (high capacity)	2, 200 pages
yellow toner cartridge yield (high capacity)	2, 200 pages
drum unit yield	15, 000 pages
belt unit yield	50, 000 pages
waste toner box yield	50, 000 pages
multi-purpose paper	Letter, 500 sheets
