8.65 Eject Sensor PCB ASSY
(1) Disconnect the two Connectors (CN1 and CN3) from the Eject sensor PCB ASSY.

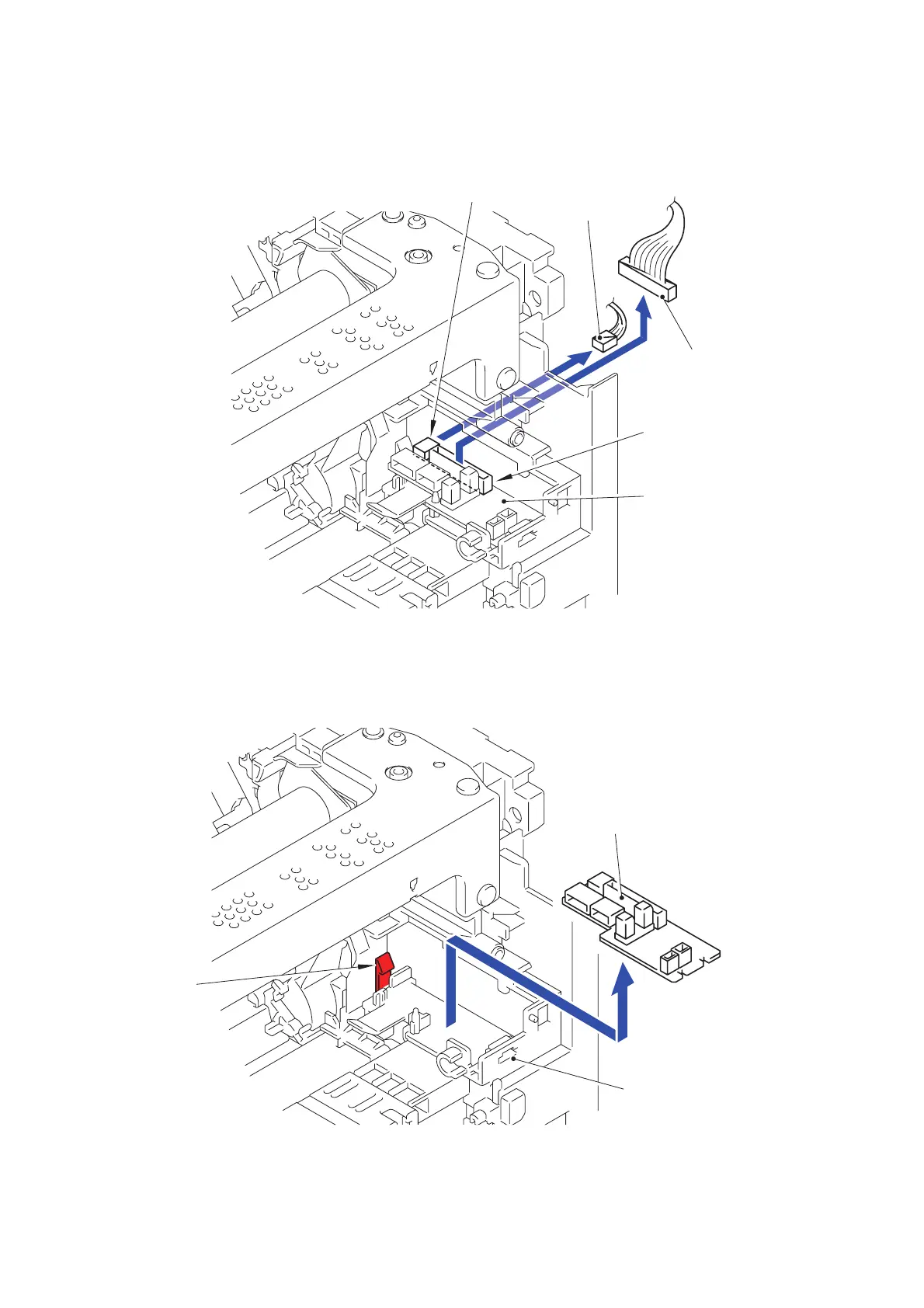

Fig. 3-215
(2) Release the Hook to remove the Eject sensor PCB ASSY from the Side frame L ASSY.
Fig. 3-216
Eject sensor PCB ASSY
CN1
CN3
Connector
Connector
<Back side>
Hook
Side frame L ASSY
Eject sensor PCB ASSY
<Back side>
