Brother MFC-9340CDW Service Manual

3-3
Confidential

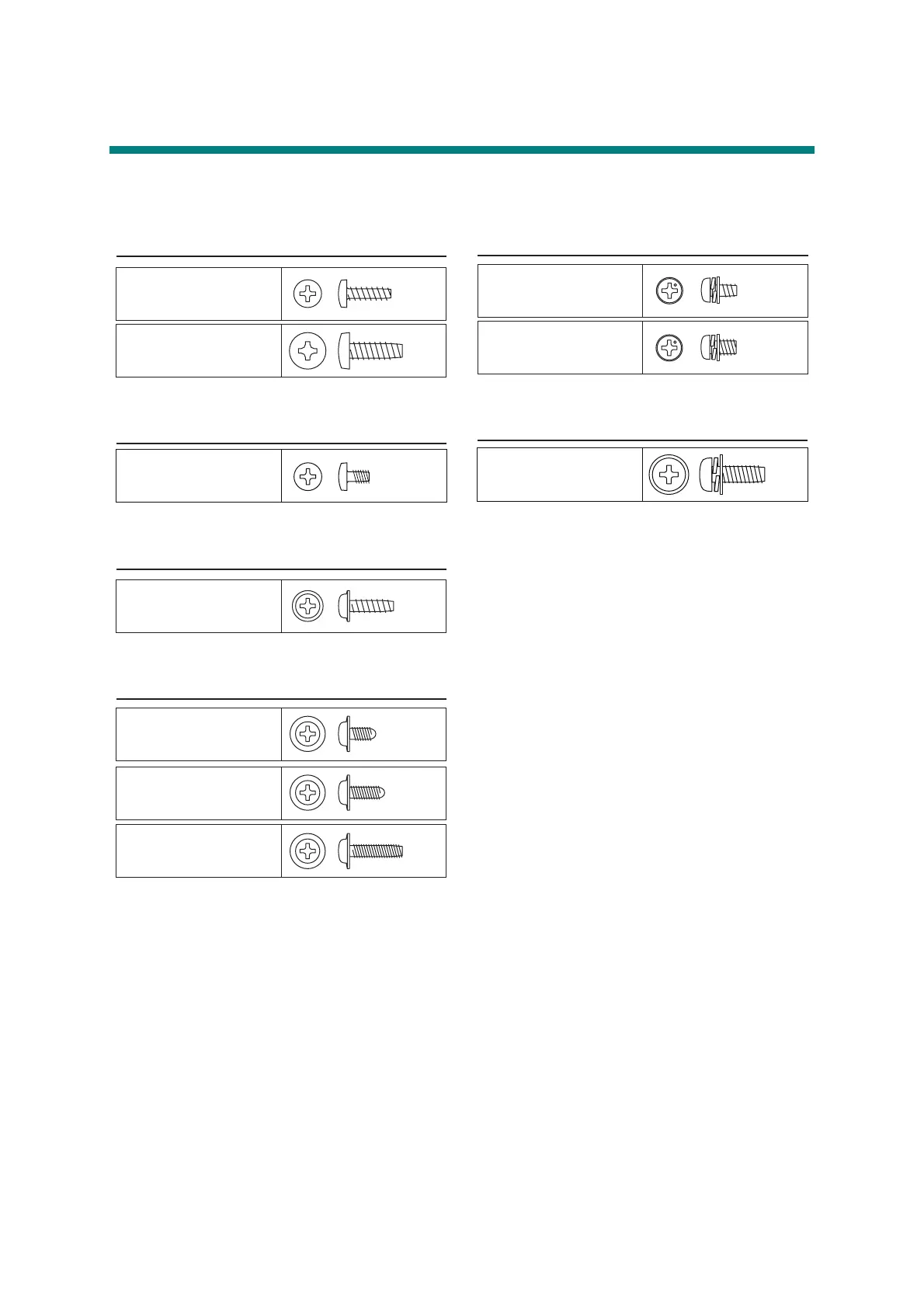

3. SCREW CATALOGUE
Taptite pan (washer)
Taptite cup S
Taptite bind B
Taptite cup B
Taptite bind B
M4x12
Taptite bind B
M3x10
Taptite cup B
M3x10
Taptite cup S
M3x12
Screw pan (S/P washer)
Screw pan (S/P washer)
M3.5x6
Screw pan (S/P washer)
M3x6
Taptite cup S
M3x6 SR
Taptite cup S
M3x8 SR
Taptite bind S
Taptite pan (washer)
B M4x12 DA
Taptite bind S
M3x5
