Brother MFC-9340CDW Service Manual

5-41
Confidential
If the Adjustment of inter-color position alignment (auto) fails while being in process, "ERROR
66-1" is displayed on the LCD. If you press the key with the error displayed, the details of
the error are shown as follows. Refer to the following list for the troubleshooting.
■ Error message list
* # indicates the toner color (Y, M, or C) of which cartridge became empty.

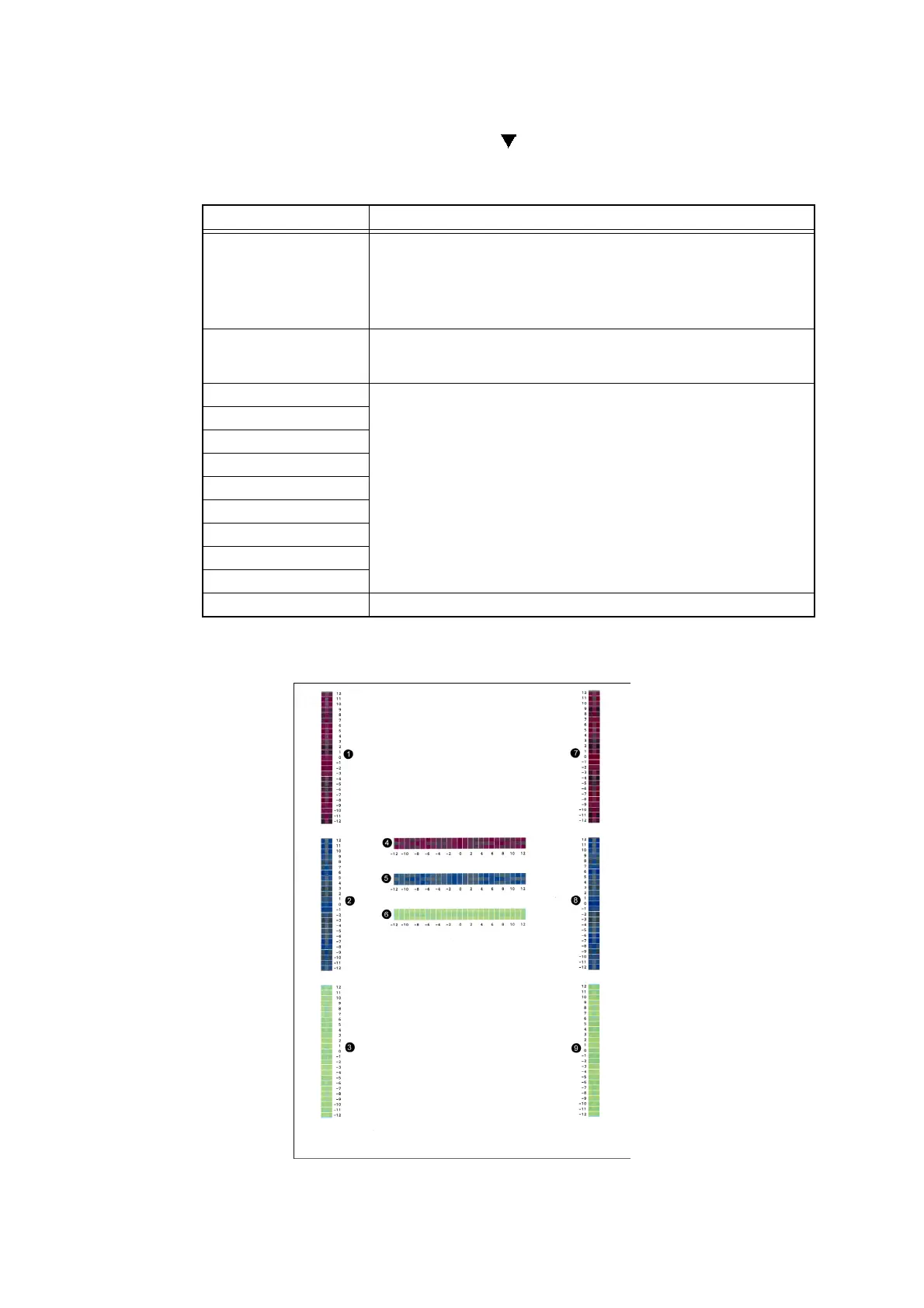

■ Printing of misregistration correction chart
Fig. 5-15
Error message Measure
FAILED REGIST Press the Mono Start key to clear the error.
Perform the
Adjustment of inter-color position alignment (auto) again. If the
error recurs, clean the belt unit and the drum units of all four
colors and then perform the adjustment again. If the error still
recurs, replace the belt unit and the drum units of all four colors.
TONER EMPTY #
*
Replace the empty toner cartridge and press the Mono Start
key to clear the error.
Perform the Adjustment of inter-color
position alignment (auto) again.
NG * L:C080 R:M105 Press the Mono Start key to clear the error. Perform the
Adjustment of inter-color position alignment (auto) again.
NG R-L:C030
NG PWM L120 R180
NG PWM R-L:080
NG CNT R100 L100
NG S-POSI R:080
NG SKEW:120
NG PWM R-P L:080
NG XMARGIN:M191
Cover is Open Close the joint cover ASSY.
