Brother MFC-9340CDW - Back Cover Upper

3-146
Confidential
8.62 Back Cover Upper

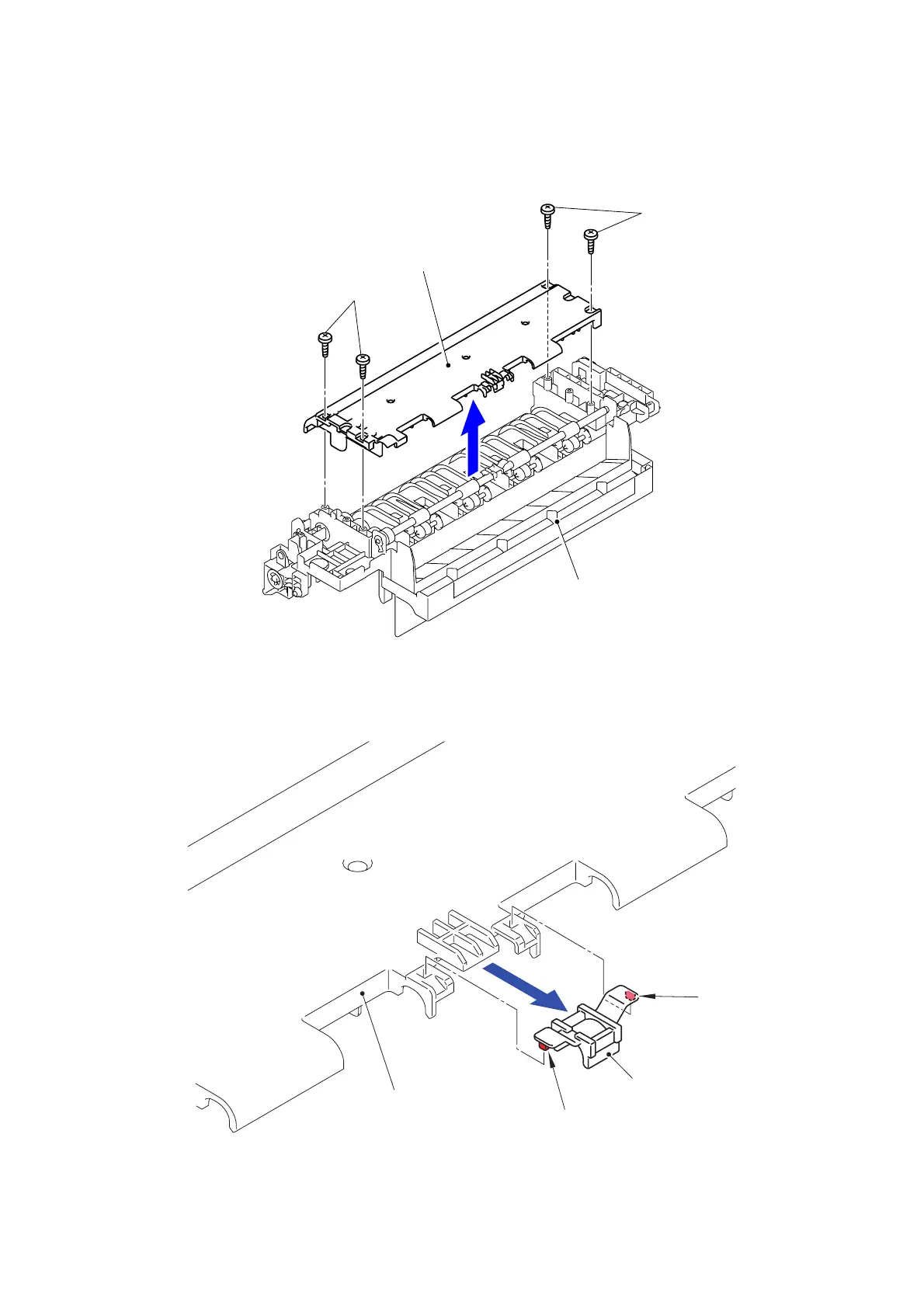

(1) Remove the four Taptite bind B M3x10 screws to remove the Back cover upper from the
Paper eject ASSY.
Fig. 3-210
(2) Release the two Hooks to remove the Exit roller bushing C from the Back cover upper.
Fig. 3-211
Taptite bind B M3x10
Taptite bind B M3x10
Paper eject ASSY
Back cover upper
Hook
Hook
Exit roller bushing C
Back cover upper
