Brother MFC-9340CDW - Second Side CIS Unit;Second Side CIS Flat Cable; (Duplex Scanning Models Only)

3-60
Confidential
8.24 Second Side CIS Unit/Second Side CIS Flat Cable
(Duplex Scanning Models Only)

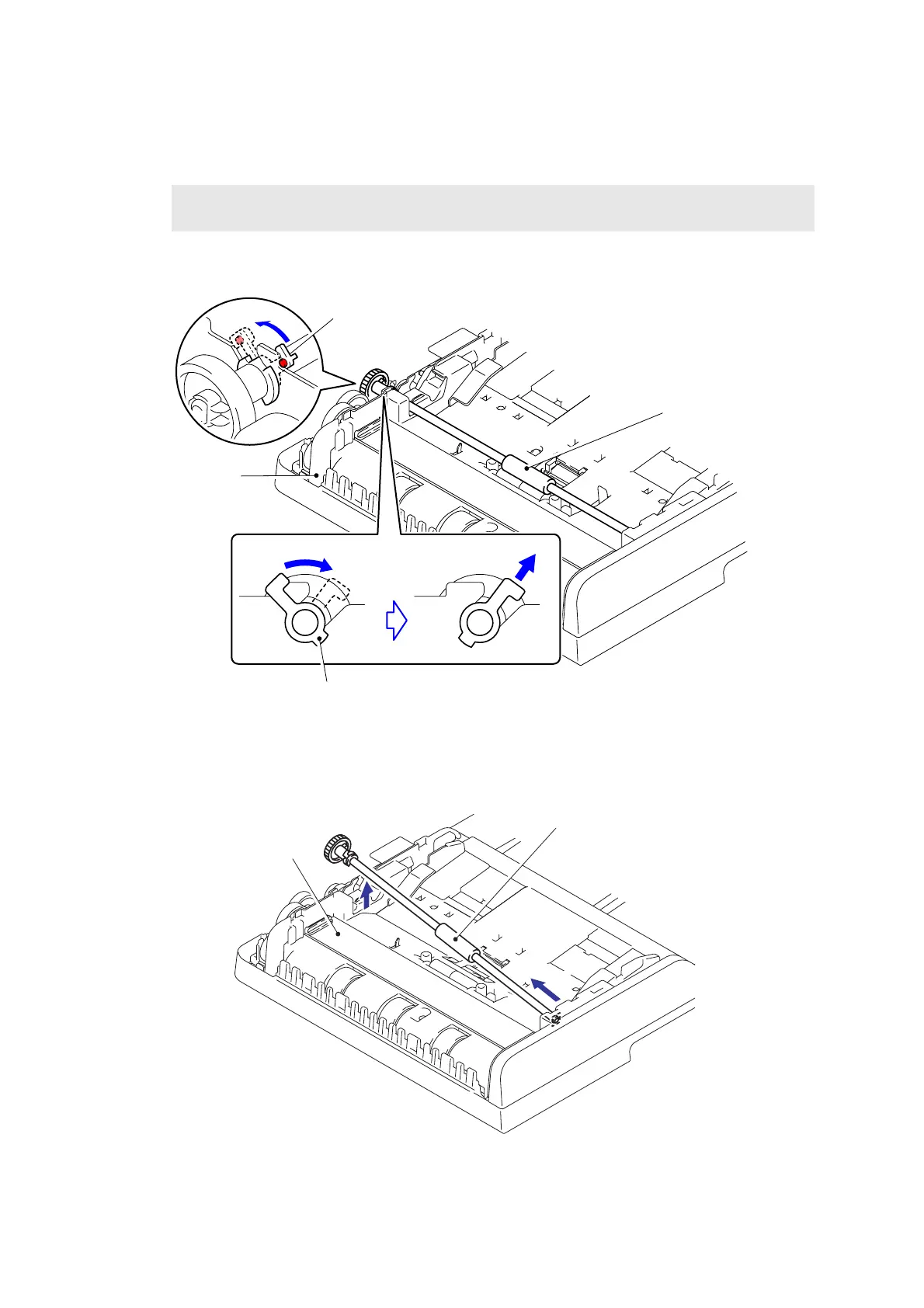

(1) Rotate the Conductive bushing to release the lock.
Fig. 3-58
(2) Remove the Document feed roller ASSY1 from the ADF unit.
Fig. 3-59
Note:
Disassemble it in a place without dust.
ADF unit
Conductive bushing
1a
1b
1a
Conductive bushing
Document feed roller
ASSY1
ADF unit
2a
2b
Document feed roller ASSY1
